1470511 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

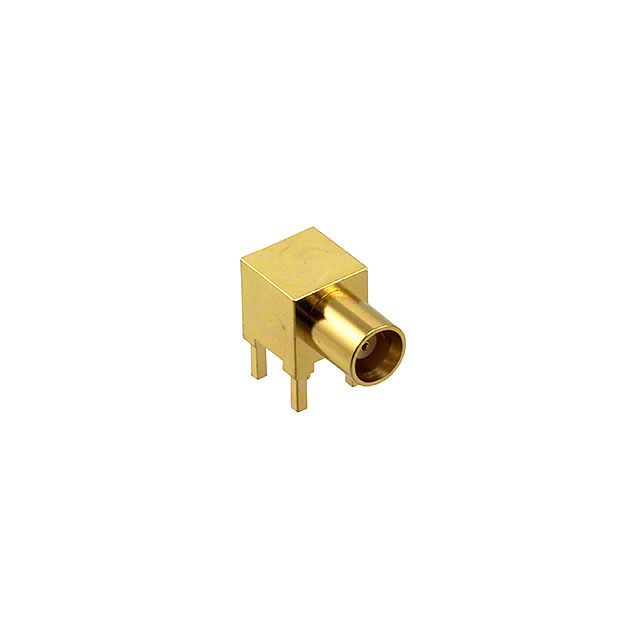

CONN MCX JACK R/A 50 OHM PCB
| Part | Connector Type | Frequency - Max [Max] | Housing Color | Number of Ports | Mounting Type | Body Finish | Contact Termination | Connector Style | Fastening Type | Mating Cycles | Operating Temperature [Min] | Operating Temperature [Max] | Insertion Loss | Voltage Rating | Impedance | Shield Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | Female Socket Jack | 6000 MHz | Gold | 1 | Through Hole Right Angle | Gold | Solder | MCX | Snap-On | 500 | -65 ░C | 165 °C | 0.1 dB | 335 V | 50 Ohms | Solder |
