50S45 Series

Catalog

SWITCH ROTARY 6POS 150MA 115V

Part	Panel Cutout Dimensions [diameter]	Number of Positions	Index Stops	Contact Finish	Actuator Length [x]	Termination Style	Voltage Rating - DC	Current Rating (Amps)	Voltage Rating - AC	Angle of Throw	Mounting Type	Contact Timing	Features	Circuit per Deck	Depth Behind Panel [custom]	Number of Decks [custom]	Number of Poles per Deck	Actuator Type
Grayhill Inc. 50S45-01-1-06N	6.45 mm	6	Fixed	Gold	9.53 mm	Solder Lug	28 V	150 mA 200 mA	115 V	45 °	Panel Mount	Non-Shorting (BBM)	Shaft and Panel Sealed	SP6T	18.77 mm	1	1	Flatted (3.17mm Dia)
Grayhill Inc. 50S45-01-1-08N-F	6.45 mm	8	Fixed	Gold	9.53 mm	Solder Lug	28 V	150 mA 200 mA	115 V	45 °	Panel Mount	Non-Shorting (BBM)	Shaft and Panel Sealed	SP8T	18.77 mm	1	1	Flatted (3.17mm Dia)

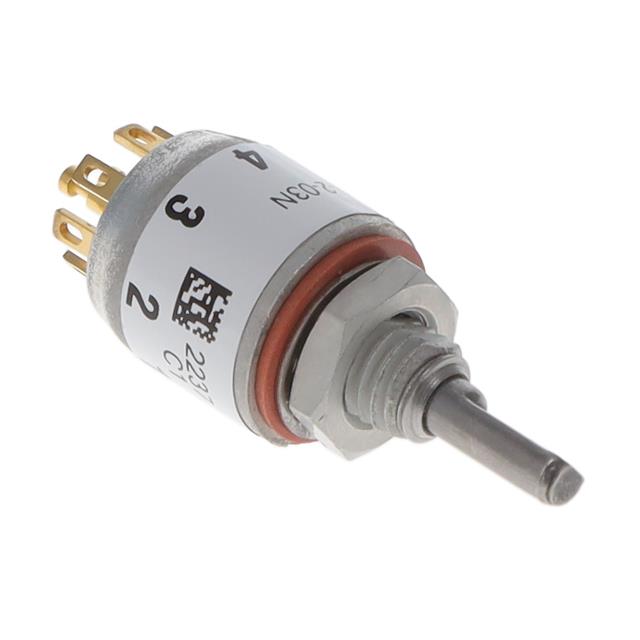

Grayhill Inc. 50S45-01-2-03N	6.45 mm		Fixed	Gold	9.53 mm	Solder Lug	28 V	150 mA 200 mA	115 V	45 °	Panel Mount	Non-Shorting (BBM)	Shaft and Panel Sealed	DP3T	18.77 mm	1	2	Flatted (3.17mm Dia)
Grayhill Inc. 50S45-01-1-08N	6.45 mm	8	Continuous	Gold	9.53 mm	Solder Lug	28 V	150 mA 200 mA	115 V	45 °	Panel Mount	Non-Shorting (BBM)	Shaft and Panel Sealed	SP8T	18.77 mm	1	1	Flatted (3.17mm Dia)
