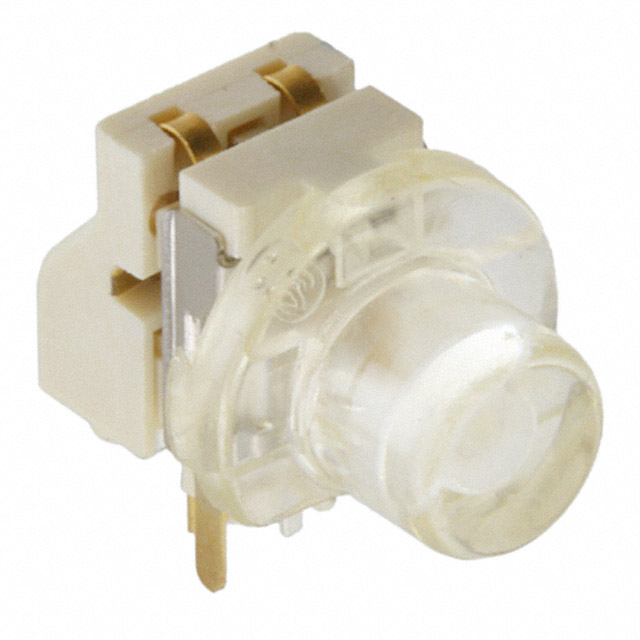

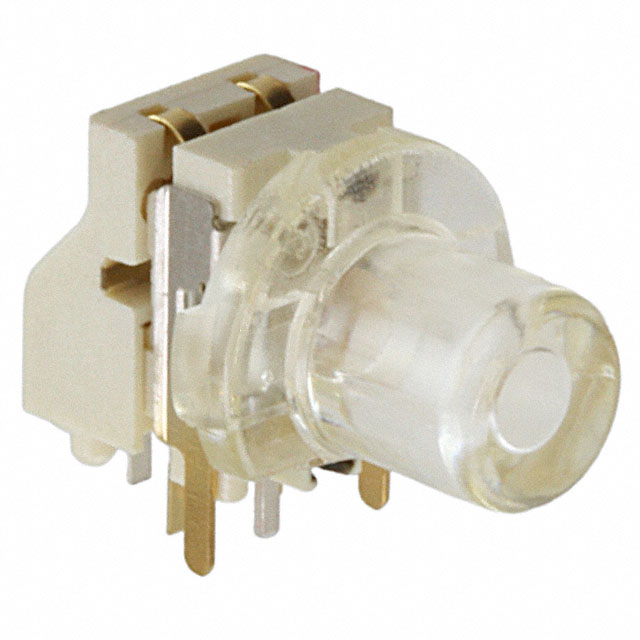

TL1270 Series
Manufacturer: E-Switch
Beta
⌘K
SWITCH TACTILE SPST-NO 0.05A 12V
| Part | Mechanical Life | Switch Travel | Mounting Type | Switch Function | Operating Force | Illumination Type, Color | Circuit | Contact Rating @ Voltage | Actuator Type | Outline [y] | Outline [x] | Illumination Voltage (Nominal) | Termination Style | Operating Temperature [Max] | Operating Temperature [Min] | Actuator Length, Right Angle | Illumination | Actuator Orientation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 E-Switch | 100000 Cycles | 0.2 mm | Right Angle Through Hole | Off-Mom | 160 gf | Blue LED | SPST-NO | 0.05 A 12 VDC | Round Button | 4.95 mm | 4.5 mm | 3.6 VDC | PC Pin | 85 °C | -40 C | 6.62 mm | Illuminated | Side Actuated |
 E-Switch | 100000 Cycles | 0.2 mm | Right Angle Through Hole | Off-Mom | 160 gf | LED Red | SPST-NO | 0.05 A 12 VDC | Round Button | 4.95 mm | 4.5 mm | 3.6 VDC | PC Pin | 85 °C | -40 C | 5.62 mm | Illuminated | Side Actuated |
E-Switch | 100000 Cycles | 0.2 mm | Right Angle Through Hole | Off-Mom | 160 gf | Green/Yellow LED | SPST-NO | 0.05 A 12 VDC | Round Button | 4.95 mm | 4.5 mm | 2.3 VDC | PC Pin | 85 °C | -40 C | 6.62 mm | Illuminated | Side Actuated |
E-Switch | 100000 Cycles | 0.2 mm | Right Angle Through Hole | Off-Mom | 160 gf | Green/Yellow LED | SPST-NO | 0.05 A 12 VDC | Round Button | 4.95 mm | 4.5 mm | 2.3 VDC | PC Pin | 85 °C | -40 C | 5.62 mm | Illuminated | Side Actuated |
