65405 Series

Catalog

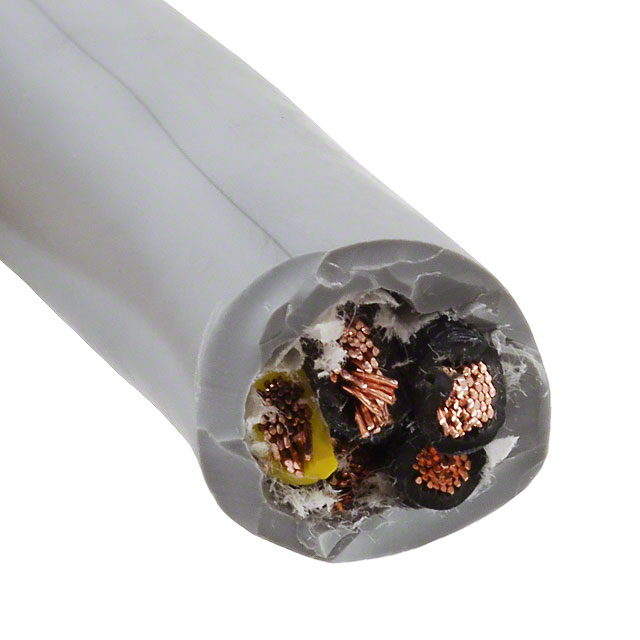

MULTICONDUCTOR CABLE, XTRA GUARD® FLEX CONTROL, UNSHIELDED, 5 CONDUCTOR, 14 AWG, 2.5 MM², 1000 FT

Part	Features	Wire Gauge	Ratings	Jacket Color	Length	Length	Conductor Material	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Cable Type	Conductor Insulation	Number of Conductors	Voltage	Jacket (Insulation) Material	Conductor Strand [custom]	Conductor Strand [custom]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Length [x]	Length [x]
ALPHA WIRE 65405 SL001	Biological Compatibility	13.5 AWG	ISO 10993 UL Style 2587	Slate	1000 ft	304.8 m	Copper Bare	1.397 mm	0.055 in	Multi-Conductor	Poly-Vinyl Chloride (PVC)	5	600 V	Poly-Vinyl Chloride (PVC)	41	30 AWG	0.439 in	11.15 mm
ALPHA WIRE 65405 SL005	Biological Compatibility	13.5 AWG	ISO 10993 UL Style 2587	Slate			Copper Bare	1.397 mm	0.055 in	Multi-Conductor	Poly-Vinyl Chloride (PVC)	5	600 V	Poly-Vinyl Chloride (PVC)	41	30 AWG	0.439 in	11.15 mm	30.5 m	100 ft
ALPHA WIRE 65405 SL199	Biological Compatibility	13.5 AWG	ISO 10993 UL Style 2587	Slate			Copper Bare	1.397 mm	0.055 in	Multi-Conductor	Poly-Vinyl Chloride (PVC)	5	600 V	Poly-Vinyl Chloride (PVC)	41	30 AWG	0.439 in	11.15 mm	30.5 m	100 ft
