2220YA25 Series
Manufacturer: Knowles Johanson Manufacturing
Catalog

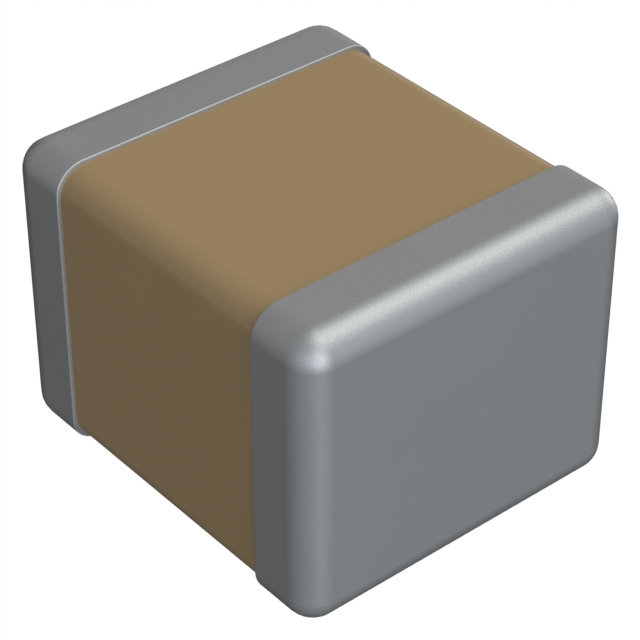

CAP CER 3900PF 250VAC X7R 2220
...
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Capacitance | Features | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Tolerance | Ratings | Package / Case | Package / Case | Mounting Type | Voltage - Rated | Applications | Temperature Coefficient | Ratings [custom] | Ratings [custom] | Thickness (Max) [Max] | Thickness (Max) [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Knowles Johanson Manufacturing | -55 °C | 125 °C | 3900 pF | DC Annex H High Voltage Humidity 3B Annex I Soft Termination | 0.224 in | 5.7 mm | 5 mm | 0.197 " | 10 % | AEC-Q200 | 5750 Metric | 2220 | MLCC Surface Mount | 250 VAC | Automotive Boardflex Sensitive Safety | X7R | ||||
Knowles Johanson Manufacturing | -55 °C | 125 °C | 220 pF | DC Annex H High Voltage Humidity 3B Annex I Soft Termination | 0.224 in | 5.7 mm | 5 mm | 0.197 " | 10 % | AEC-Q200 X1 Y2 | 5750 Metric | 2220 | MLCC Surface Mount | 250 VAC | Automotive Boardflex Sensitive Safety | X7R | ||||
Knowles Johanson Manufacturing | -55 °C | 125 °C | 150 pF | DC Annex H High Voltage Humidity 3B Annex I Soft Termination | 0.224 in | 5.7 mm | 5 mm | 0.197 " | 20 % | AEC-Q200 X1 Y2 | 5750 Metric | 2220 | MLCC Surface Mount | 250 VAC | Automotive Boardflex Sensitive Safety | X7R | ||||
 Knowles Johanson Manufacturing | -55 °C | 125 °C | 2200 pF | DC Annex H High Voltage Humidity 3B Annex I Soft Termination | 0.224 in | 5.7 mm | 5 mm | 0.197 " | 5 % | 5750 Metric | 2220 | MLCC Surface Mount | 250 VAC | Boardflex Sensitive Safety | X7R | |||||
Knowles Johanson Manufacturing | -55 °C | 125 °C | 560 pF | DC Annex H High Voltage Humidity 3B Annex I Soft Termination | 0.224 in | 5.7 mm | 5 mm | 0.197 " | 5 % | AEC-Q200 X1 Y2 | 5750 Metric | 2220 | MLCC Surface Mount | 250 VAC | Automotive Boardflex Sensitive Safety | X7R | ||||
Knowles Johanson Manufacturing | -55 °C | 125 °C | 470 pF | DC Annex H High Voltage Humidity 3B Annex I Soft Termination | 0.224 in | 5.7 mm | 5 mm | 0.197 " | 20 % | 5750 Metric | 2220 | MLCC Surface Mount | 250 VAC | Boardflex Sensitive Safety | X7R | |||||
Knowles Johanson Manufacturing | -55 °C | 125 °C | 3300 pF | DC Annex H High Voltage Humidity 3B Annex I Soft Termination | 0.224 in | 5.7 mm | 5 mm | 0.197 " | 10 % | AEC-Q200 | 5750 Metric | 2220 | MLCC Surface Mount | 250 VAC | Automotive Boardflex Sensitive Safety | X7R | ||||
Knowles Johanson Manufacturing | -55 °C | 125 °C | 180 pF | DC Annex H High Voltage Humidity 3B Annex I Soft Termination | 0.224 in | 5.7 mm | 5 mm | 0.197 " | 20 % | 5750 Metric | 2220 | MLCC Surface Mount | 250 VAC | Boardflex Sensitive Safety | X7R | 2 | 1 | |||
 Knowles Johanson Manufacturing | -55 °C | 125 °C | 0.001 µF | DC Annex H High Voltage Humidity 3B Annex I Soft Termination | 0.224 in | 5.7 mm | 5 mm | 0.197 " | 10 % | 5750 Metric | 2220 | MLCC Surface Mount | 250 VAC | Boardflex Sensitive Safety | X7R | 2 | 1 | 2 mm | 0.079 in | |
Knowles Johanson Manufacturing | -55 °C | 125 °C | 180 pF | DC Annex H High Voltage Humidity 3B Annex I Soft Termination | 0.224 in | 5.7 mm | 5 mm | 0.197 " | 10 % | AEC-Q200 | 5750 Metric | 2220 | MLCC Surface Mount | 250 VAC | Automotive Boardflex Sensitive Safety | X7R |
