1756 Series

Catalog

TEST LEAD, SPADE LUGS X2 TO SPADE LUGS X2, 2 KV, 20 A, 609.6 MM

Part	Material - Insulation	Cable Length	Cable Length	Current Rating (Amps)	Contents	Voltage - Rated	Voltage - Rated	Configuration	Wire Gauge	2nd Connector	Temperature Range	1st Connector

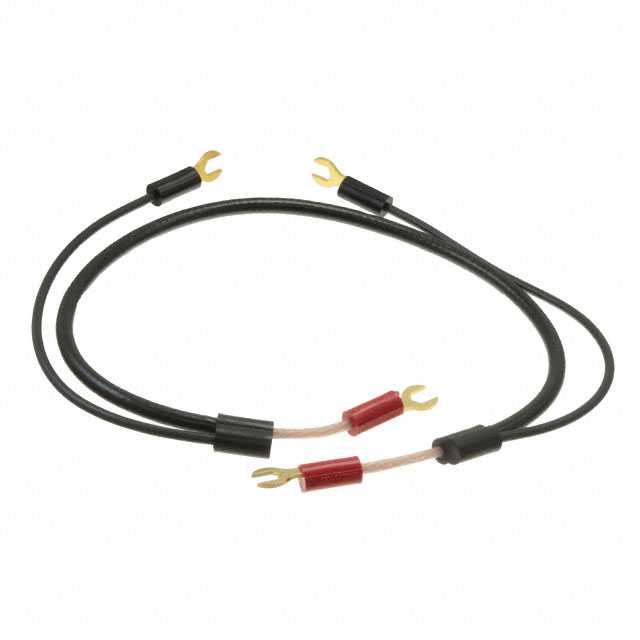

Pomona Electronics 1756-24	Poly-Vinyl Chloride (PVC)	24 in	609.6 mm	20 A	1 Cable Black Black and Red Lugs Black Leads	2 kV	2000 VAC	Spade Terminal to Spade Terminal	12 AWG 18 AWG	Spade Terminal (2)	131 °F	Spade Terminal (2)

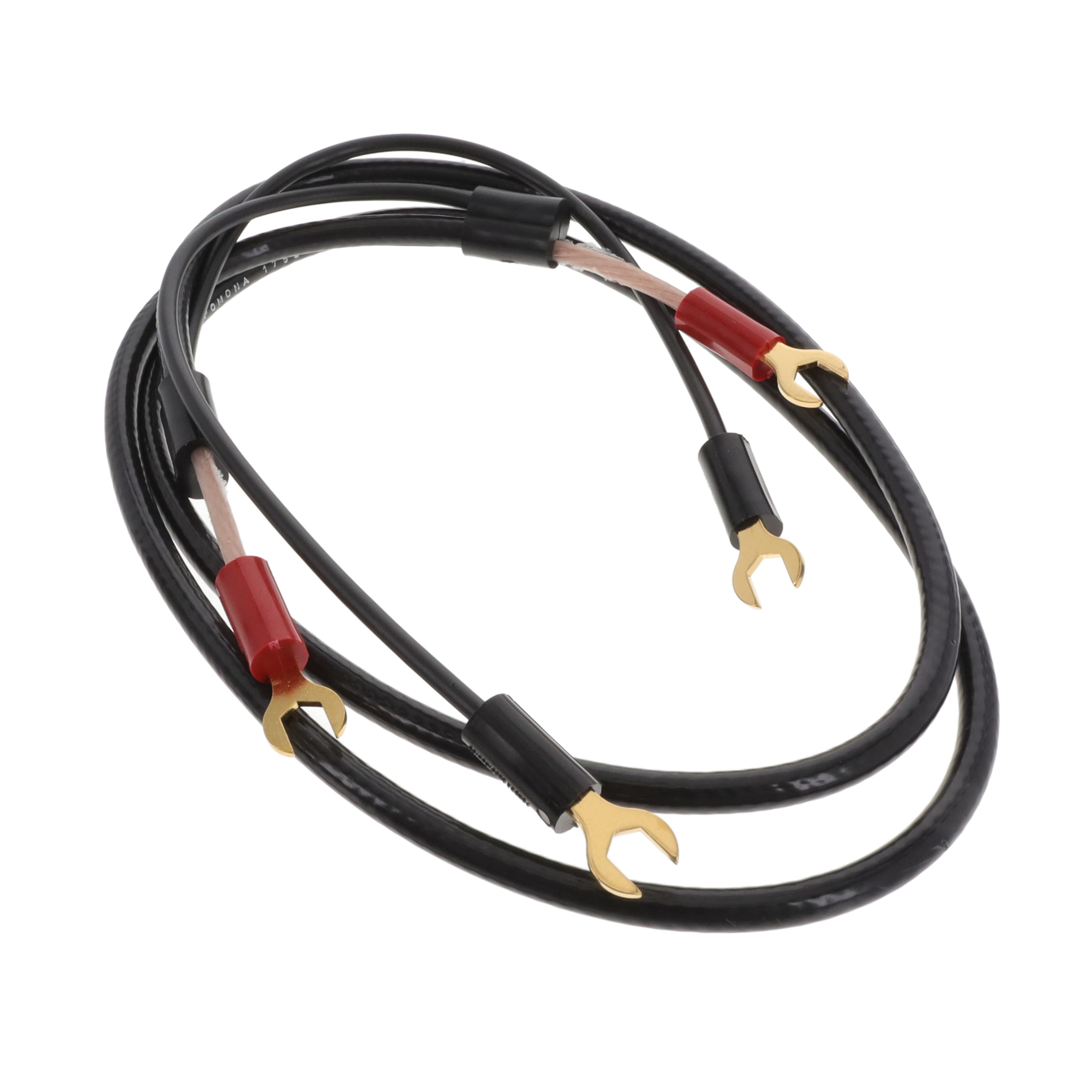

Pomona Electronics 1756-48	Poly-Vinyl Chloride (PVC)	48 in	1219.2 mm	20 A	1 Cable Black Black and Red Lugs Black Leads	2 kV	2000 VAC	Spade Terminal to Spade Terminal	12 AWG 18 AWG	Spade Terminal (2)	131 °F	Spade Terminal (2)
