83604 Series
Manufacturer: Belden Inc.
Beta
⌘K

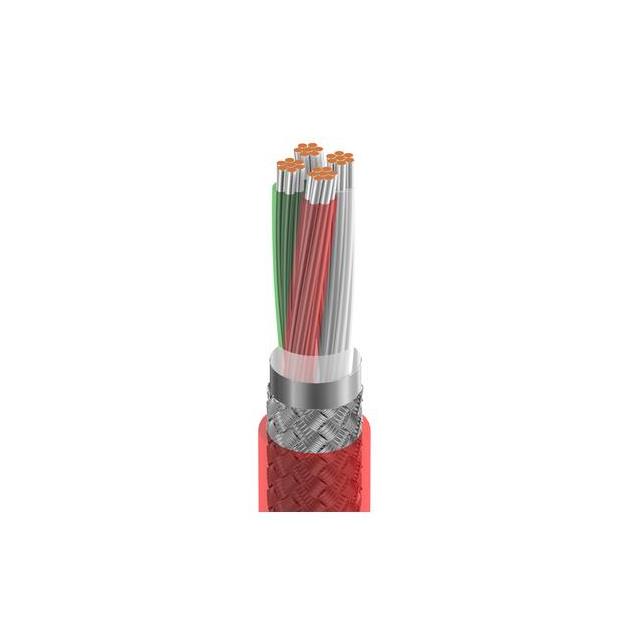

CABLE 4COND 20AWG RED SHLD
| Part | Shield Material | Shield Coverage | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Jacket (Insulation) Diameter | Jacket (Insulation) Diameter | Jacket Color | Shield Type | Voltage | Jacket (Insulation) Material | Length [x] | Length [x] | Operating Temperature [Min] | Operating Temperature [Max] | Conductor Strand [custom] | Conductor Strand [custom] | Wire Gauge | Conductor Insulation | Usage | Ratings | Conductor Material | Cable Type | Number of Conductors |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | Aluminum Copper Tinned | 85 % 100 % | 0.014 in | 0.356 mm | 4.52 mm | 0.178 in | Red | Braid Foil | 300 VDC | Fluorinated Ethylene-Propylene (FEP) Plenum | 100 ft | 30.5 m | -70 °C | 200 °C | 28 AWG | 7 | 20 AWG | Fluorinated Ethylene-Propylene (FEP) | Audio Control Instrumentation | UL Style CMP | Copper Tinned | Multi-Conductor | 4 |
