001542 Series

Manufacturer: Molex

Catalog

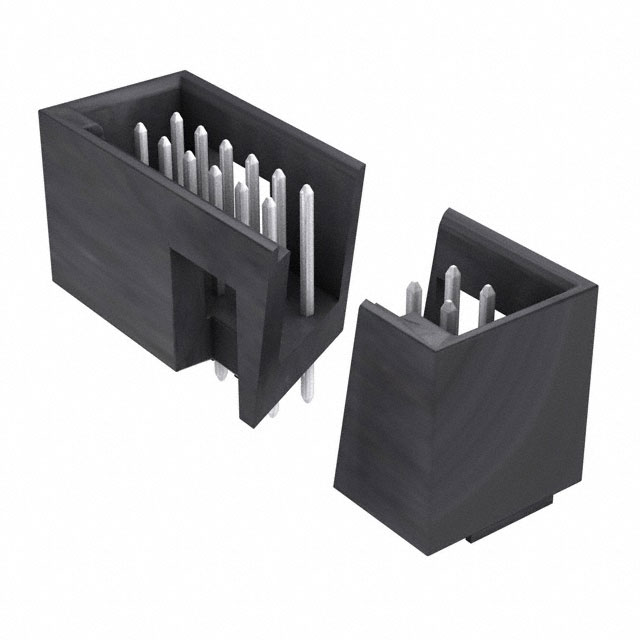

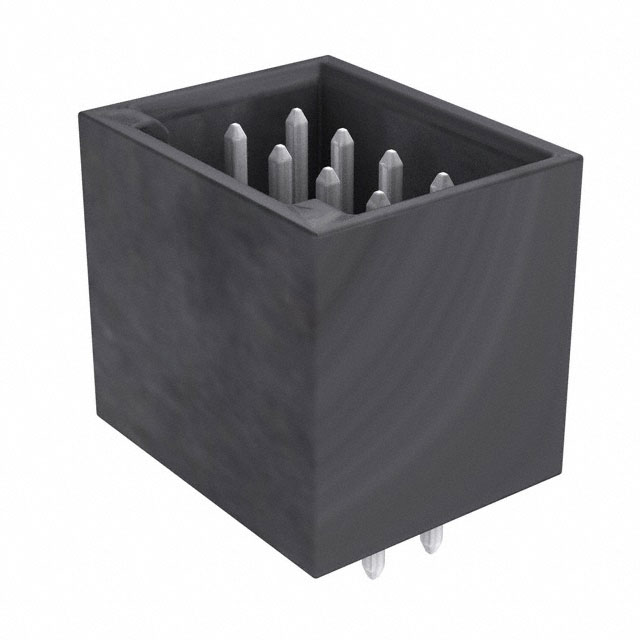

CONN HEADER VERT 30POS 2.54MM

Part	Applications	Material Flammability Rating	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Type	Contact Length - Mating	Contact Length - Mating	Connector Type	Contact Finish - Post	Contact Material	Style	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Material	Shrouding	Number of Rows [custom]	Number of Positions	Contact Length - Post	Contact Length - Post	Contact Shape	Insulation Height [z]	Insulation Height [z]	Pitch - Mating	Pitch - Mating	Number of Positions Loaded	Termination	Mounting Type	Insulation Color	Fastening Type	Contact Finish Thickness - Post	Insulation Height	Insulation Height
Molex 0015426030	Automotive General Purpose Lighting Medical Telecommunications	UL94 V-0	0.1 in	2.54 mm	Male Pin	8 mm	0.315 in	Header	Tin	Phosphor Bronze	Board to Cable/Wire	150 Áin	3.81 Ám	Polyester Glass Filled	Shrouded - 4 Wall	2	30	0.13 "	3.3 mm	Square	12.07 mm	0.475 in	0.1 "	2.54 mm	All	Solder	Through Hole	Black	Detent Lock
Molex 0015426016	Automotive General Purpose Lighting Medical Telecommunications	UL94 V-0	0.1 in	2.54 mm	Male Pin	8 mm	0.315 in	Header	Tin	Phosphor Bronze	Board to Cable/Wire	150 Áin	3.81 Ám	Polyester Glass Filled	Shrouded - 4 Wall	2	16	0.13 "	3.3 mm	Square	12.07 mm	0.475 in	0.1 "	2.54 mm	All	Solder	Through Hole	Black	Detent Lock
Molex 0015427022	Automotive General Purpose Lighting Medical Telecommunications	UL94 V-0	0.1 in	2.54 mm	Male Pin	8 mm	0.315 in	Header	Tin	Phosphor Bronze	Board to Board Cable	150 Áin	3.81 Ám	Glass Filled Nylon Polyamide (PA)	Shrouded - 4 Wall	2	22	0.13 "	3.3 mm	Square			0.1 "	2.54 mm	All	Solder	Right Angle Through Hole	Black	Detent Lock	3.81 Ám	10.67 mm	0.42 in
Molex 0015427018	Automotive General Purpose Lighting Medical Telecommunications	UL94 V-0	0.1 in	2.54 mm	Male Pin	8 mm	0.315 in	Header	Tin	Phosphor Bronze	Board to Board Cable	150 Áin	3.81 Ám	Glass Filled Nylon Polyamide (PA)	Shrouded - 4 Wall	2	18	0.13 "	3.3 mm	Square			0.1 "	2.54 mm	All	Solder	Right Angle Through Hole	Black	Detent Lock	3.81 Ám	10.67 mm	0.42 in
Molex 0015426012	Automotive General Purpose Lighting Medical Telecommunications	UL94 V-0	0.1 in	2.54 mm	Male Pin	8 mm	0.315 in	Header	Tin	Phosphor Bronze	Board to Cable/Wire	150 Áin	3.81 Ám	Polyester Glass Filled	Shrouded - 4 Wall	2	12	0.13 "	3.3 mm	Square	12.07 mm	0.475 in	0.1 "	2.54 mm	All	Solder	Through Hole	Black	Detent Lock
Molex 0015426008	Automotive General Purpose Lighting Medical Telecommunications	UL94 V-0	0.1 in	2.54 mm	Male Pin	8 mm	0.315 in	Header	Tin	Phosphor Bronze	Board to Cable/Wire	150 Áin	3.81 Ám	Polyester Glass Filled	Shrouded - 4 Wall	2	8	0.13 "	3.3 mm	Square	12.07 mm	0.475 in	0.1 "	2.54 mm	All	Solder	Through Hole	Black	Detent Lock
Molex 0015426010	Automotive General Purpose Lighting Medical Telecommunications	UL94 V-0	0.1 in	2.54 mm	Male Pin	8 mm	0.315 in	Header	Tin	Phosphor Bronze	Board to Cable/Wire	150 Áin	3.81 Ám	Polyester Glass Filled	Shrouded - 4 Wall	2	10	0.13 "	3.3 mm	Square	12.07 mm	0.475 in	0.1 "	2.54 mm	All	Solder	Through Hole	Black	Detent Lock
Molex 0015426040	Automotive General Purpose Lighting Medical Telecommunications	UL94 V-0	0.1 in	2.54 mm	Male Pin	8 mm	0.315 in	Header	Tin	Phosphor Bronze	Board to Cable/Wire	150 Áin	3.81 Ám	Polyester Glass Filled	Shrouded - 4 Wall	2	40	0.13 "	3.3 mm	Square	12.07 mm	0.475 in	0.1 "	2.54 mm	All	Solder	Through Hole	Black	Detent Lock
Molex 0015426014	Automotive General Purpose Lighting Medical Telecommunications	UL94 V-0	0.1 in	2.54 mm	Male Pin	8 mm	0.315 in	Header	Tin	Phosphor Bronze	Board to Cable/Wire	150 Áin	3.81 Ám	Polyester Glass Filled	Shrouded - 4 Wall	2	14	0.13 "	3.3 mm	Square	12.07 mm	0.475 in	0.1 "	2.54 mm	All	Solder	Through Hole	Black	Detent Lock
Molex 0015426028	Automotive General Purpose Lighting Medical Telecommunications	UL94 V-0	0.1 in	2.54 mm	Male Pin	8 mm	0.315 in	Header	Tin	Phosphor Bronze	Board to Cable/Wire	150 Áin	3.81 Ám	Polyester Glass Filled	Shrouded - 4 Wall	2	28	0.13 "	3.3 mm	Square	12.07 mm	0.475 in	0.1 "	2.54 mm	All	Solder	Through Hole	Black	Detent Lock
