CAB433RF Series
Manufacturer: GCT
Beta
⌘K

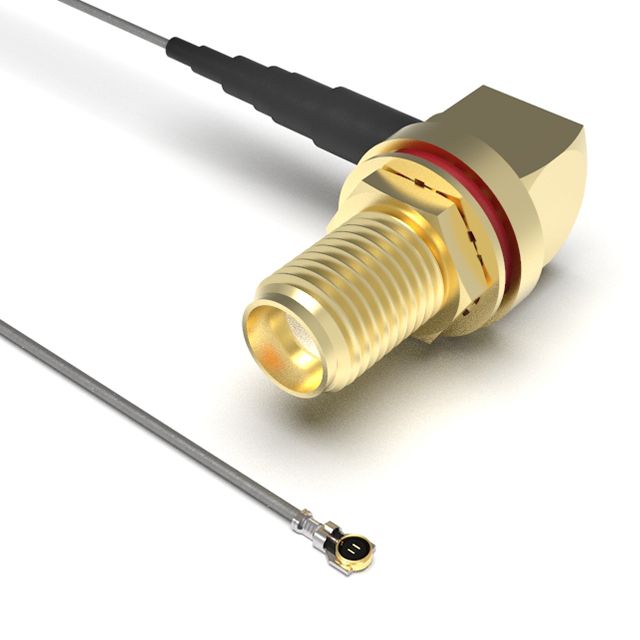

CBL ASSY RPSMA-MHF5L PL-P 7.874"
| Part | Frequency - Max [Max] | Operating Temperature [Max] | Operating Temperature [Min] | 2nd Contact Gender | Overall Impedance | 2nd Connector | 2nd Connector Mounting Type | Features | Color | Ingress Protection | Cable Type | Cable Type [diameter] | 1st Connector Mounting Type | 1st Connector | 1st Contact Gender | Length | Length | 1st Connector Mounting Feature | Style | Cable Impedance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
6000 MHz | 85 °C | -40 C | Female | 50 Ohms | I-PEX MHF5L Plug Right Angle | Free Hanging (In-Line) | IP Rated Unmated | Gray | IP67/IP68 | Coaxial Cable | 1.13 mm | Panel Mount | RP-SMA Plug Right Angle | Female | 200 mm | 7.874 in | Bulkhead - Front Side Nut | RP-SMA to I-PEX MHF5L | 50 Ohms | |
6000 MHz | 85 °C | -40 C | Female | 50 Ohms | IPEX MHF5L Plug Right Angle | Free Hanging (In-Line) | IP Rated Unmated | Gray | IP67/IP68 | Coaxial Cable | 1.13 mm | Panel Mount | RP-SMA Plug Right Angle | Female | 200 mm | 7.874 in | Bulkhead - Front Side Nut | RP-SMA to IPEX MHF5L | 50 Ohms |
