PTC01 Series

Manufacturer: Sullins Connector Solutions

Catalog

CONN HEADER R/A 2POS

Part	Contact Material	Number of Positions	Contact Type	Fastening Type	Mounting Type	Termination	Current Rating (Amps)	Contact Length - Post	Contact Length - Post	Insulation Color	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Material	Number of Rows [custom]	Connector Type	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Length - Mating	Contact Length - Mating	Number of Positions Loaded	Style	Insulation Height [z]	Insulation Height [z]	Contact Shape	Material Flammability Rating	Contact Finish - Post	Shrouding	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Overall Contact Length [x]	Overall Contact Length [x]	Insulation Height	Insulation Height	Number of Rows	Overall Contact Length	Overall Contact Length
Sullins Connector Solutions PTC01DBEN	Copper Alloy	2	Male Pin	Push-Pull	Right Angle Through Hole	Solder	3 A	0.52 in	13.21 mm	Black	100 çin	2.54 çm	Polyester Thermoplastic	2	Header	2.54 µm	100 µin	0.23 in	5.84 mm	All	Board to Board Cable	6.1 mm	0.24 in	Square	UL94 V-0	Tin	Unshrouded	0.1 in	2.54 mm
Sullins Connector Solutions PTC01SADN	Copper Alloy	1	Male Pin	Push-Pull	Through Hole	Solder	3 A	0.42 in	10.67 mm	Black	100 çin	2.54 çm	Polyester Thermoplastic		Header	2.54 µm	100 µin	0.23 in	5.84 mm	All	Board to Board Cable			Square	UL94 V-0	Tin	Unshrouded			19.05 mm	0.75 in	0.1 in	2.54 mm	1

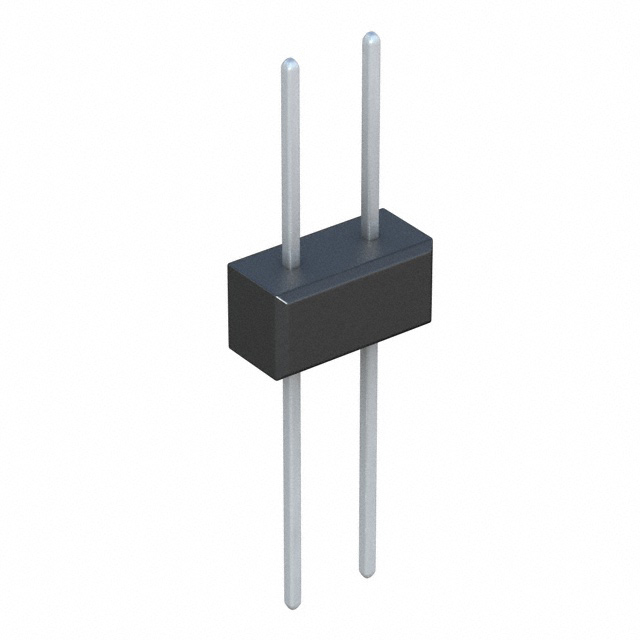

Sullins Connector Solutions PTC01DACN	Copper Alloy	2	Male Pin	Push-Pull	Through Hole	Solder	3 A	0.32 in	8.13 mm	Black	100 çin	2.54 çm	Polyester Thermoplastic	2	Header	2.54 µm	100 µin	0.23 in	5.84 mm	All	Board to Board Cable			Square	UL94 V-0	Tin	Unshrouded	0.1 in	2.54 mm			0.1 in	2.54 mm		16.51 mm	0.65 in

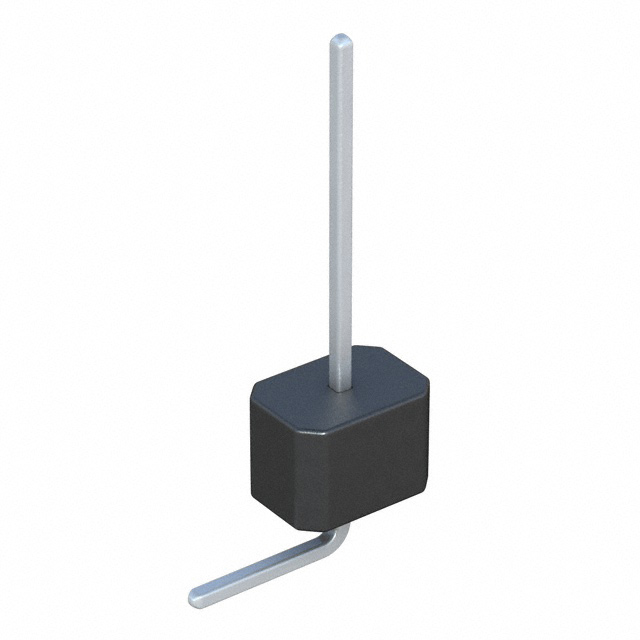

Sullins Connector Solutions PTC01SGAN	Copper Alloy	1	Male Pin	Push-Pull	Right Angle Through Hole	Solder	3 A	0.12 in	3.05 mm	Black	100 çin	2.54 çm	Polyester Thermoplastic		Header	2.54 µm	100 µin	0.318 in	8.08 mm	All	Board to Board Cable			Square	UL94 V-0	Tin	Unshrouded					0.14 in	3.56 mm	1

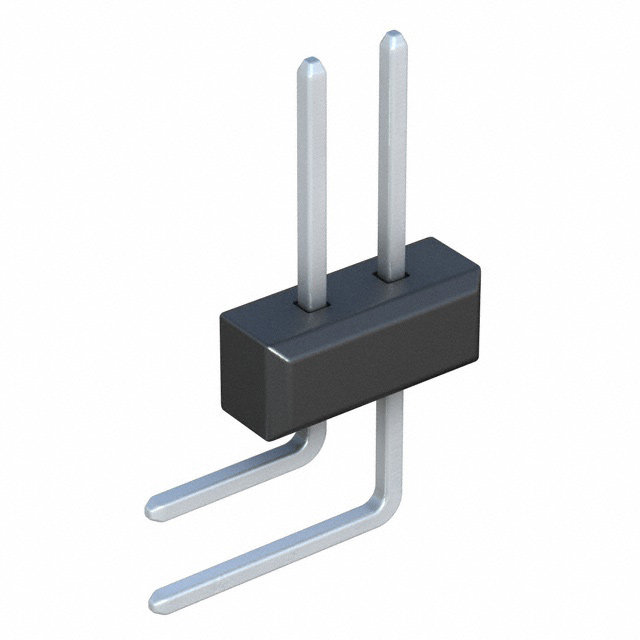

Sullins Connector Solutions PTC01DBAN	Copper Alloy	2	Male Pin	Push-Pull	Right Angle Through Hole	Solder	3 A	0.12 in	3.05 mm	Black	100 çin	2.54 çm	Polyester Thermoplastic	2	Header	2.54 µm	100 µin	0.23 in	5.84 mm	All	Board to Board Cable	6.1 mm	0.24 in	Square	UL94 V-0	Tin	Unshrouded	0.1 in	2.54 mm

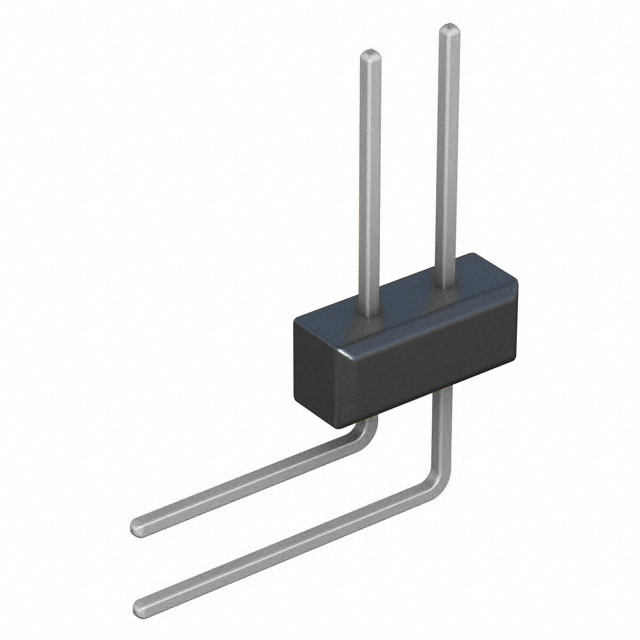

Sullins Connector Solutions PTC01DBCN	Copper Alloy	2	Male Pin	Push-Pull	Right Angle Through Hole	Solder	3 A	0.32 in	8.13 mm	Black	100 çin	2.54 çm	Polyester Thermoplastic	2	Header	2.54 µm	100 µin	0.23 in	5.84 mm	All	Board to Board Cable	6.1 mm	0.24 in	Square	UL94 V-0	Tin	Unshrouded	0.1 in	2.54 mm

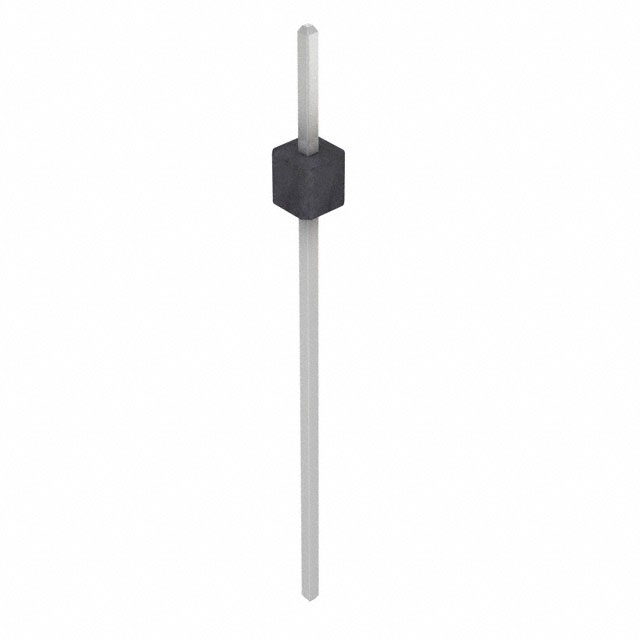

Sullins Connector Solutions PTC01SAHN	Copper Alloy	1	Male Pin	Push-Pull	Through Hole	Solder	3 A	0.82 in	20.83 mm	Black	100 çin	2.54 çm	Polyester Thermoplastic		Header	2.54 µm	100 µin	0.23 in	5.84 mm	All	Board to Board Cable			Square	UL94 V-0	Tin	Unshrouded					0.1 in	2.54 mm	1	29.21 mm	1.15 in

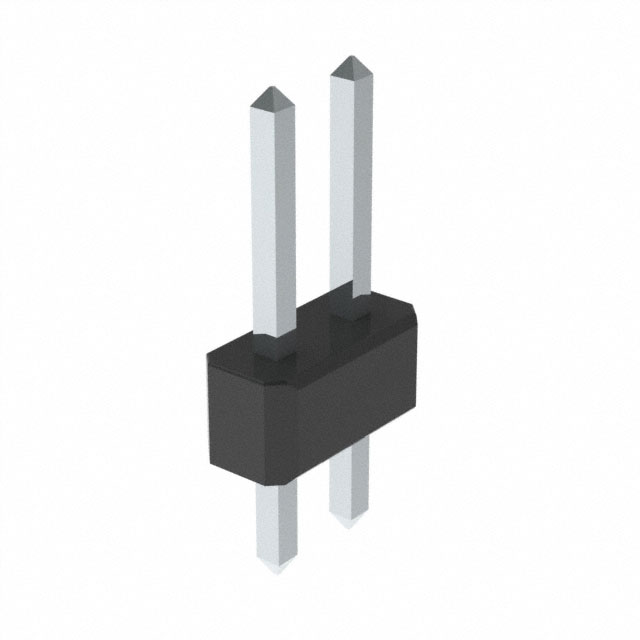

Sullins Connector Solutions PTC01DAAN	Copper Alloy	2	Male Pin	Push-Pull	Through Hole	Solder	3 A	0.12 in	3.05 mm	Black	100 çin	2.54 çm	Polyester Thermoplastic	2	Header	2.54 µm	100 µin	0.23 in	5.84 mm	All	Board to Board Cable			Square	UL94 V-0	Tin	Unshrouded	0.1 in	2.54 mm	11.43 mm	0.45 in	0.1 in	2.54 mm

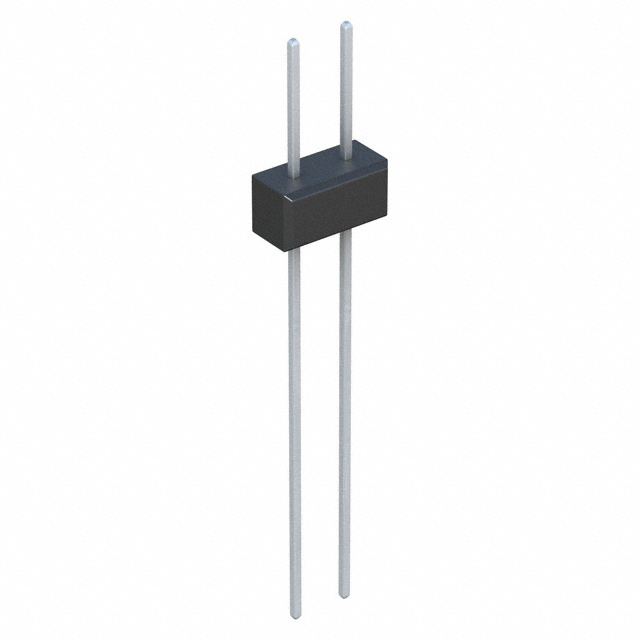

Sullins Connector Solutions PTC01DAGN	Copper Alloy	2	Male Pin	Push-Pull	Through Hole	Solder	3 A	0.72 "	18.29 mm	Black	100 çin	2.54 çm	Polyester Thermoplastic	2	Header	2.54 µm	100 µin	0.23 in	5.84 mm	All	Board to Board Cable			Square	UL94 V-0	Tin	Unshrouded	0.1 in	2.54 mm			0.1 in	2.54 mm		26.67 mm	1.05 in

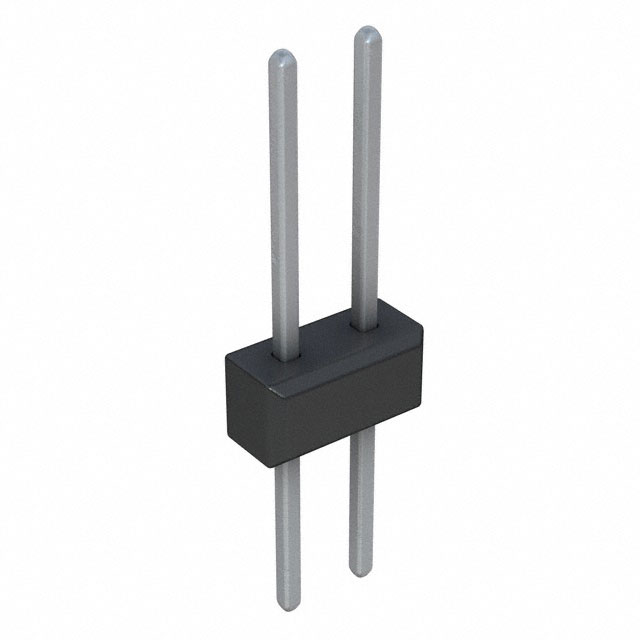

Sullins Connector Solutions PTC01DFBN	Copper Alloy	2	Male Pin	Push-Pull	Through Hole	Solder	3 A	0.22 in	5.58 mm	Black	100 çin	2.54 çm	Polyester Thermoplastic	2	Header	2.54 µm	100 µin	0.318 in	8.08 mm	All	Board to Board Cable			Square	UL94 V-0	Tin	Unshrouded	0.1 in	2.54 mm			0.1 in	2.54 mm		16.21 mm	0.638 in
