FCE17A15 Series

Manufacturer: Amphenol ICC (Commercial Products)

Catalog

CONN D-SUB RCPT 15POS SLDR CUP

Part	Dielectric Material	Contact Material	Color	Operating Temperature [Max]	Operating Temperature [Min]	Number of Rows [custom]	Current Rating (Amps)	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Features	Contact Type	Connector Style	Number of Positions	Flange Feature	Material Flammability Rating	Connector Type	Mounting Type	Shell Size, Connector Layout	Includes	Convert To (Adapter End)	Convert From (Adapter End)	Housing Color	Backset Spacing	Backset Spacing	Flange Feature	Termination

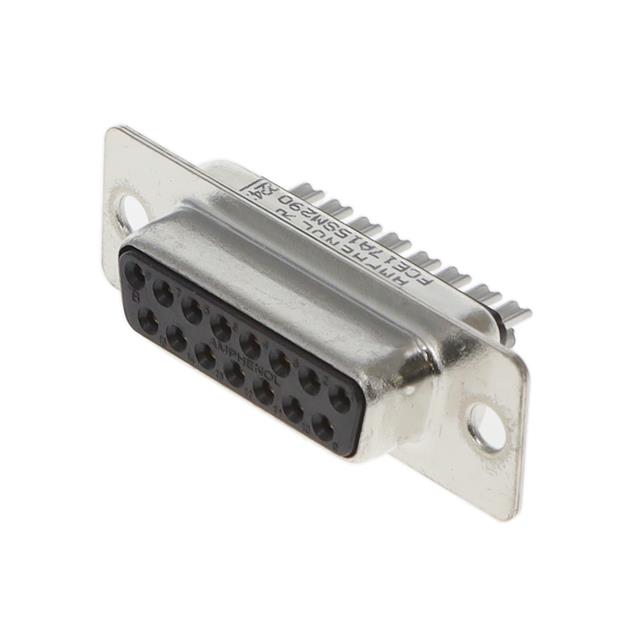

Amphenol ICC (Commercial Products) FCE17A15SM290	Thermoplastic Glass Filled	Phosphor Bronze	Black	85 °C	-40 C	2	5 A	0.38 µm	15 µin	Gold	Filter	Signal	D-Sub	15	Housing/Shell (Unthreaded)	UL94 V-0	Receptacle Female Sockets	Free Hanging (In-Line)	2

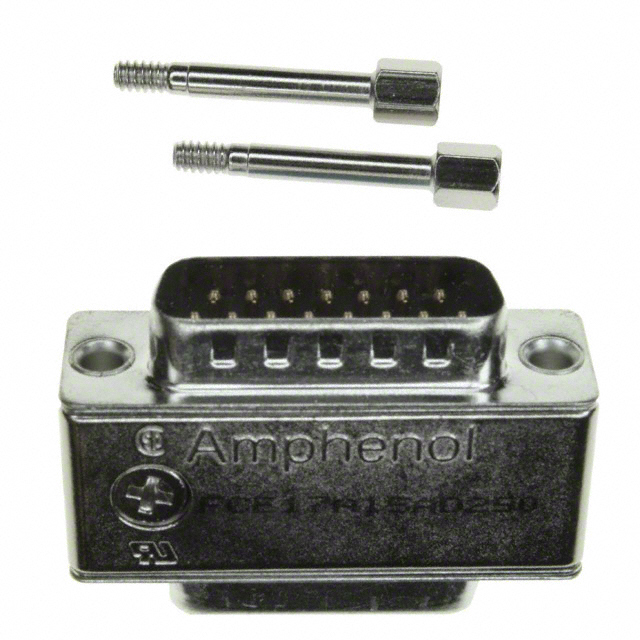

Amphenol ICC (Commercial Products) FCE17-A15AD-250				85 °C	-40 C	2	5 A	0.38 µm	15 µin	Gold	Filter		Connector Saver			UL94 V-0		Free Hanging (In-Line)		1 Connector 2 Jack Screws	D-Sub 15 Pin Female	D-Sub 15 Pin Male	Black

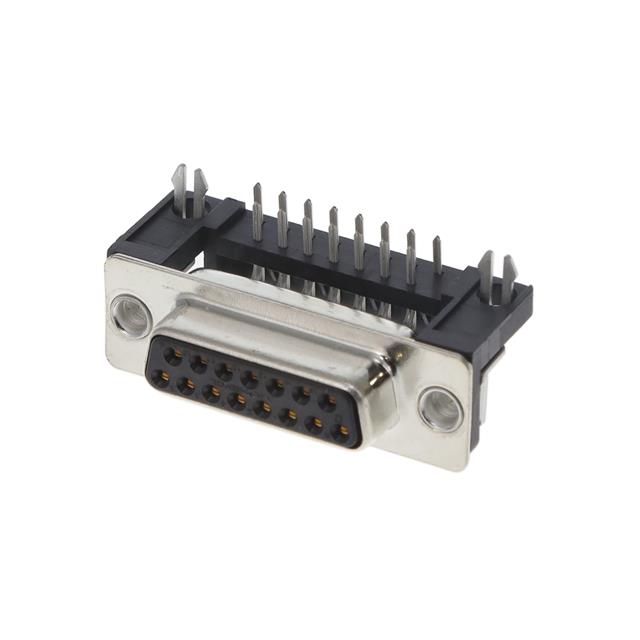

Amphenol ICC (Commercial Products) FCE17A15SB4E0	Thermoplastic Glass Filled	Phosphor Bronze	Black	85 °C	-40 C	2	5 A	0.38 µm	15 µin	Gold	Board Lock Filter	Signal	D-Sub	15	Housing/Shell	UL94 V-0	Receptacle Female Sockets	Right Angle Through Hole	2					10.29 mm	0.405 in	4-40	Solder

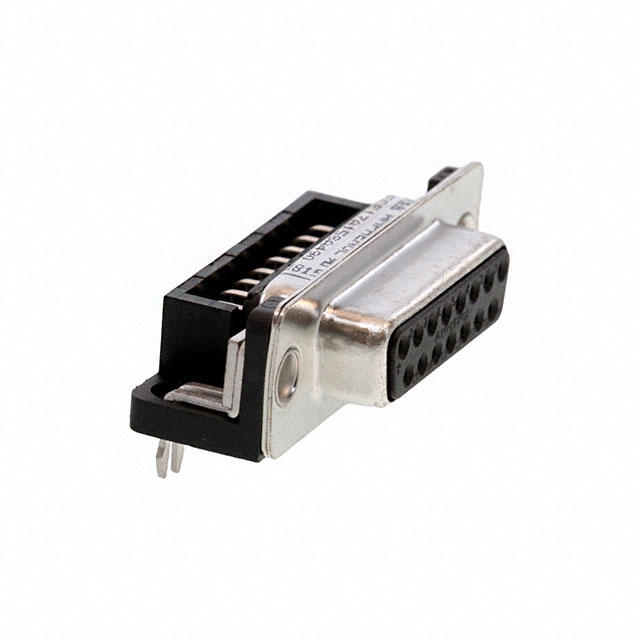

Amphenol ICC (Commercial Products) FCE17A15SA490	Thermoplastic Glass Filled	Phosphor Bronze	Black	85 °C	-40 C	2	5 A	0.38 µm	15 µin	Gold	Board Lock Filter	Signal	D-Sub	15	Housing/Shell	UL94 V-0	Receptacle Female Sockets	Right Angle Through Hole	2					8.08 mm	0.318 "	4-40	Solder

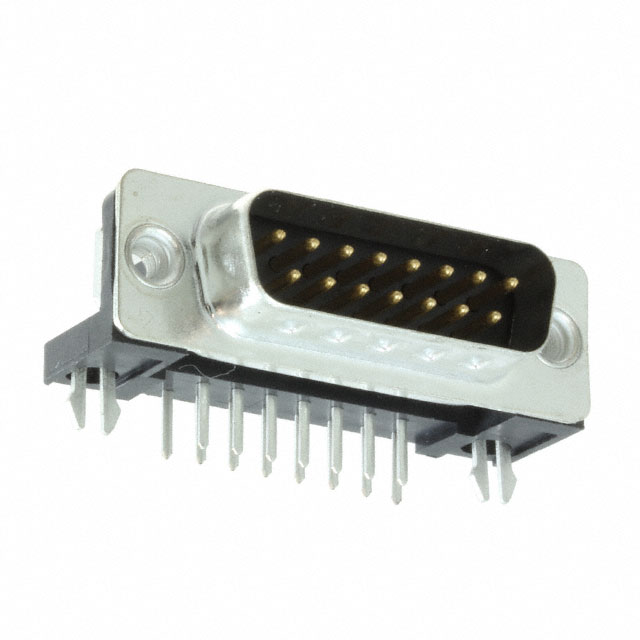

Amphenol ICC (Commercial Products) FCE17A15PA410	Thermoplastic Glass Filled	Phosphor Bronze	Black	85 °C	-40 C	2	5 A	0.38 µm	15 µin	Gold	Board Lock Filter Grounding Indents	Signal	D-Sub	15	Housing/Shell	UL94 V-0	Plug Male Pins	Right Angle Through Hole	2					8.08 mm	0.318 "	4-40	Solder

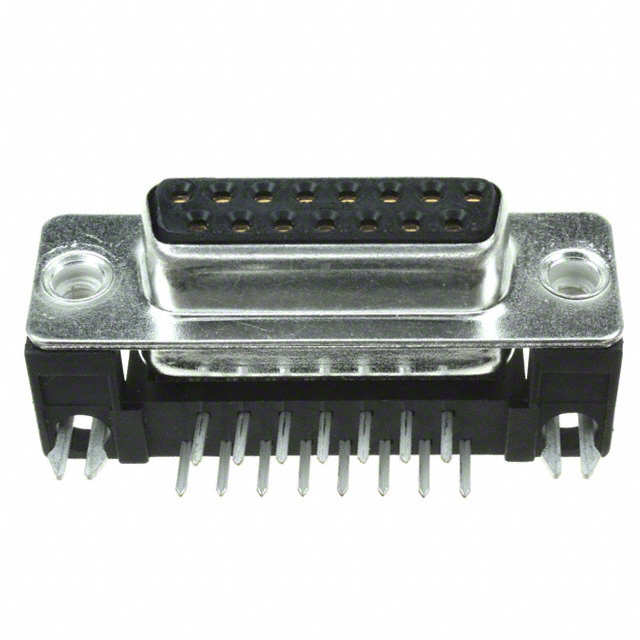

Amphenol ICC (Commercial Products) FCE17-A15SA-450	Thermoplastic Glass Filled	Phosphor Bronze	Black	85 °C	-40 C	2	5 A	0.38 µm	15 µin	Gold	Board Lock Filter	Signal	D-Sub	15	Housing/Shell	UL94 V-0	Receptacle Female Sockets	Right Angle Through Hole	2					8.08 mm	0.318 "	4-40	Solder
Amphenol ICC (Commercial Products) FCE17A15SC49B	Thermoplastic Glass Filled	Phosphor Bronze	Black	85 °C	-40 C	2	5 A	0.38 µm	15 µin	Gold	Filter Mounting Brackets	Signal	D-Sub	15	Board Side (4-40)	UL94 V-0	Receptacle Female Sockets	Right Angle Through Hole	2					14.99 mm	0.59 in		Solder

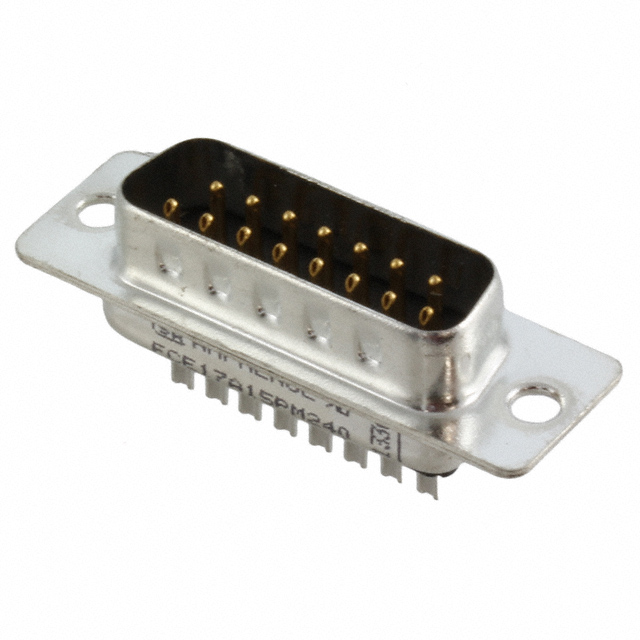

Amphenol ICC (Commercial Products) FCE17A15PM240	Thermoplastic Glass Filled	Phosphor Bronze	Black	85 °C	-40 C	2	5 A	0.38 µm	15 µin	Gold	Filter Grounding Indents	Signal	D-Sub	15	Housing/Shell (Unthreaded)	UL94 V-0	Plug Male Pins	Free Hanging (In-Line)	2

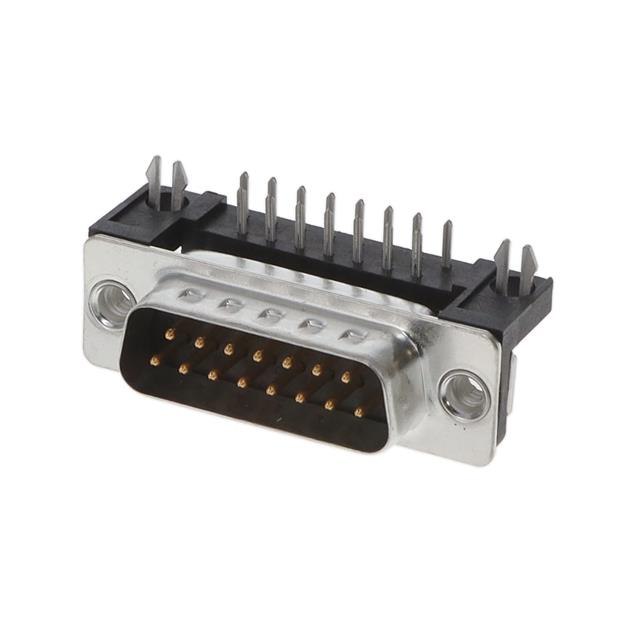

Amphenol ICC (Commercial Products) FCE17A15PA490	Thermoplastic Glass Filled	Phosphor Bronze	Black	85 °C	-40 C	2	5 A	0.38 µm	15 µin	Gold	Board Lock Filter Grounding Indents	Signal	D-Sub	15	Housing/Shell	UL94 V-0	Plug Male Pins	Right Angle Through Hole	2					8.08 mm	0.318 "	4-40	Solder
Amphenol ICC (Commercial Products) FCE17A15PM490	Thermoplastic Glass Filled	Phosphor Bronze	Black	85 °C	-40 C	2	5 A	0.38 µm	15 µin	Gold	Filter Grounding Indents	Signal	D-Sub	15	Cable Side (4-40)	UL94 V-0	Plug Male Pins	Free Hanging (In-Line)	2
