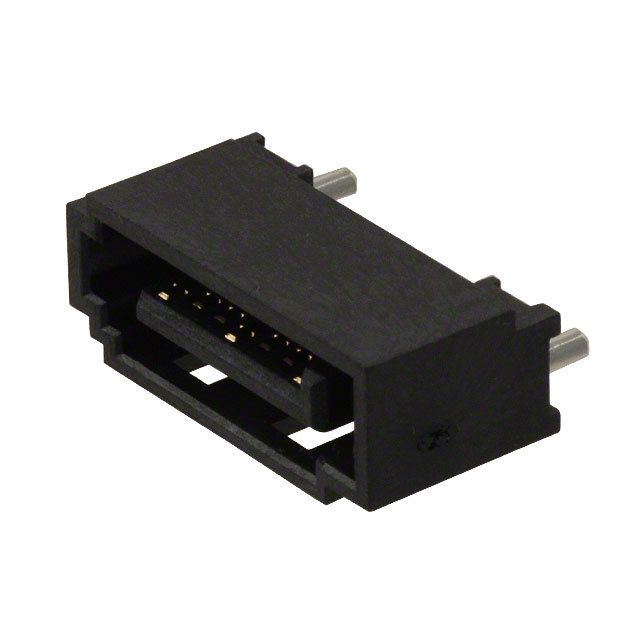

067800 Series

Manufacturer: Molex

Catalog

CONN SATA HEADER 7POS SLD PCB

Part	Contact Finish Thickness	Contact Finish Thickness	Features	Mounting Type	Contact Finish	Connector Style	Termination	Connector Type	Number of Positions	Contact Finish Thickness
Molex 0678008102	0.76 Ám	30 Áin	Board Guide Friction Lock	Through Hole	Gold	Header Shrouded	Solder	SATA	7
Molex 0678007005	0.38 µm	15 µin	Board Guide	Through Hole	Gold	Header Shrouded	Solder	SATA	7

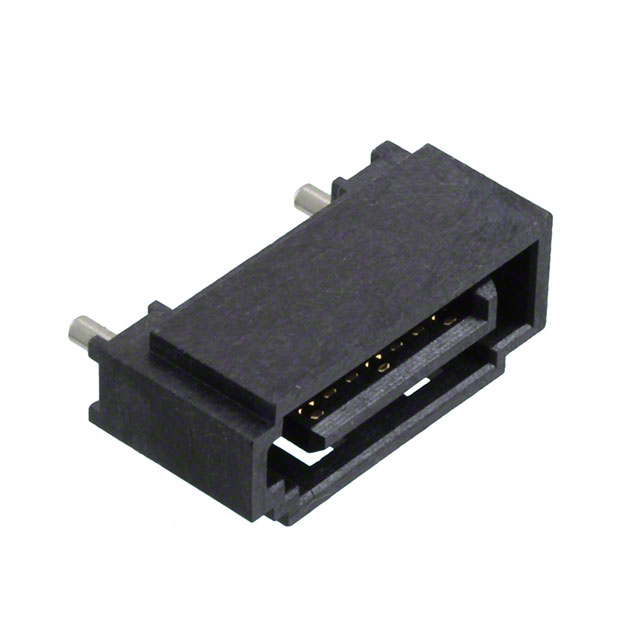

Molex 0678005021			Board Guide	Surface Mount	Gold	Header Shrouded	Solder	SATA	7	Flash
Molex 0678005015	0.38 µm	15 µin	Board Guide	Surface Mount	Gold	Header Shrouded	Solder	SATA	7

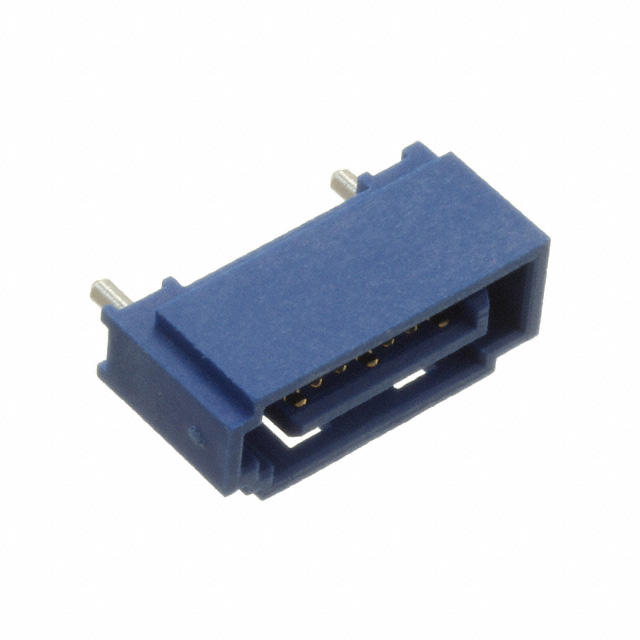

Molex 0678005003	0.38 µm	15 µin	Board Guide	Surface Mount	Gold	Header Shrouded	Solder	SATA	7

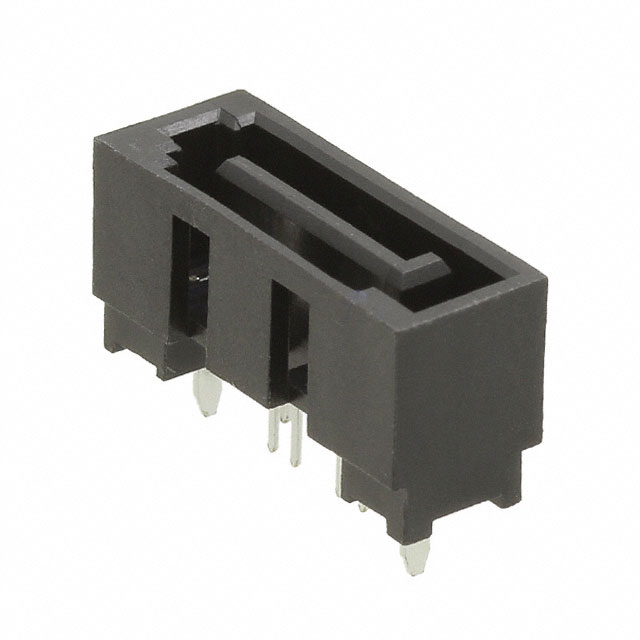

Molex 0678007001			Board Guide	Through Hole	Gold	Header Shrouded	Solder	SATA	7	Flash

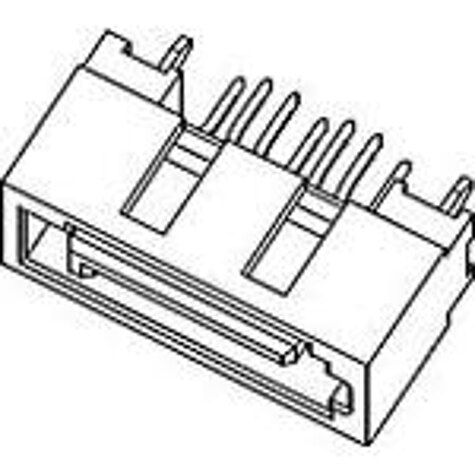

Molex 0678008245	0.38 µm	15 µin	Board Guide Friction Lock	Through Hole	Gold	Header Shrouded	Solder	SATA	7
Molex 0678005011			Board Guide	Surface Mount	Gold	Header Shrouded	Solder	SATA	7	Flash
Molex 0678008005	0.38 µm	15 µin	Board Guide Friction Lock	Through Hole	Gold	Header Shrouded	Solder	SATA	7
Molex 0678008205
