9508 Series
Manufacturer: Belden Inc.
Beta
⌘K

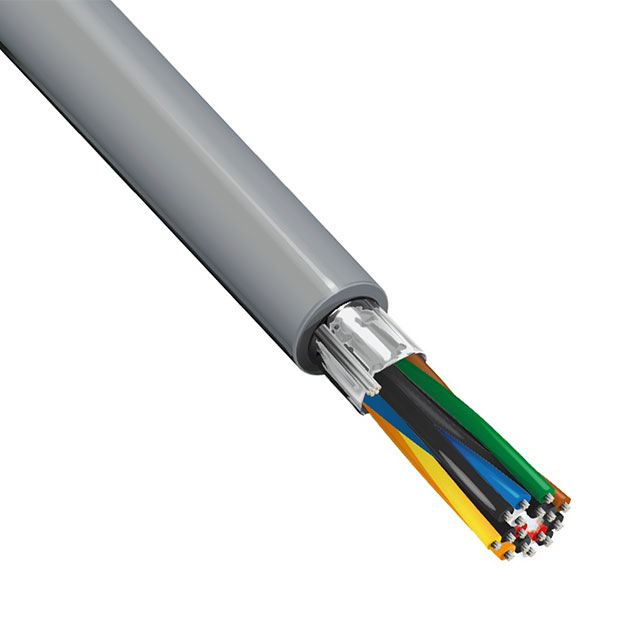

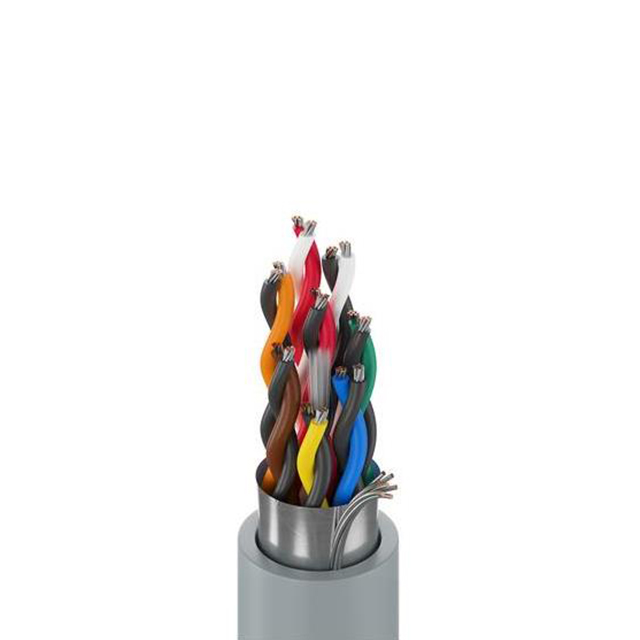

MULTI-PAIR 16COND 24AWG
| Part | Shield Material | Shield Coverage | Shield Type | Conductor Strand [custom] | Conductor Strand [custom] | Cable Type | Usage | Length | Length | Voltage | Conductor Insulation | Operating Temperature [Max] | Operating Temperature [Min] | Jacket Color | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Material | Features | Wire Gauge | Number of Conductors | Ratings | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Conductor Material | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | Aluminum | 100 % | Foil | 7 | 32 AWG | Multi-Pair | Computer | 152.4 m | 500 ft | 300 VDC | Poly-Vinyl Chloride (PVC) | 80 °C | -30 ░C | Chrome | 8.23 mm | 0.324 " | Poly-Vinyl Chloride (PVC) | Drain Wire | 24 AWG | 16 | UL Style 2464 | 0.813 mm | 0.032 in | Copper Tinned | ||
 Belden Inc. | Aluminum | 100 % | Foil | 7 | 32 AWG | Multi-Pair | Computer | Poly-Vinyl Chloride (PVC) | 80 °C | -30 ░C | Chrome | 8.23 mm | 0.324 " | Poly-Vinyl Chloride (PVC) | Drain Wire | 24 AWG | 16 | 0.813 mm | 0.032 in | Copper Tinned | 100 ft | 30.5 m | ||||
Belden Inc. | Aluminum | 100 % | Foil | 7 | 32 AWG | Multi-Pair | Computer | 300 VDC | Poly-Vinyl Chloride (PVC) | 80 °C | -30 ░C | Chrome | 8.23 mm | 0.324 " | Poly-Vinyl Chloride (PVC) | Drain Wire | 24 AWG | 16 | UL Style 2464 | 0.813 mm | 0.032 in | Copper Tinned |
