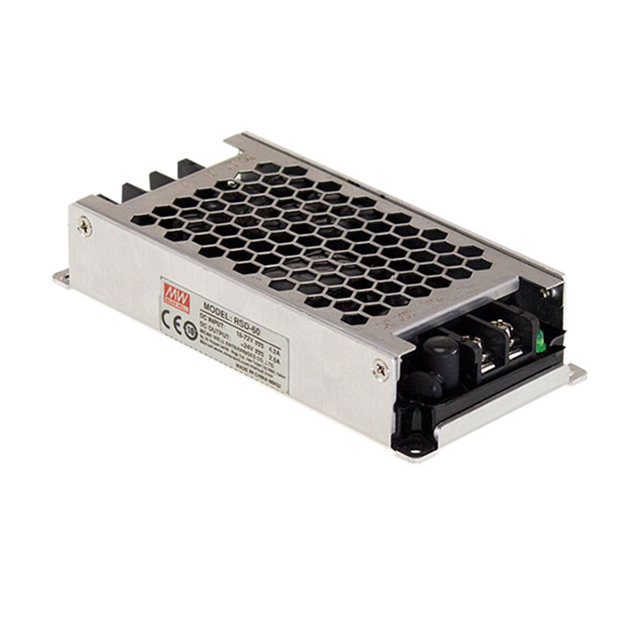

RSD-60 Series

Catalog

DC/DC CONVERTER 5V 60W

Part	Efficiency	Applications	Voltage - Input (Max) [Max]	Mounting Type	Voltage - Isolation	Power (Watts)	Number of Outputs	Voltage - Output 1	Type	Approval Agency	Voltage - Input (Min) [Min]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Current - Output (Max) [Max]	Current - Output (Max)
MEAN WELL USA Inc. RSD-60H-5	89 %	ITE (Commercial) Railway	160 V	Chassis Mount	4000 V	60 W	1	5 V	Enclosed	CE	40 V	5.04 "	0.98 in	25 mm	128 mm	60 mm	2.36 "	12 A
MEAN WELL USA Inc. RSD-60H-24	91.5 %	ITE (Commercial) Railway	160 V	Chassis Mount	4000 V	60 W	1	24 V	Enclosed	CE	40 V	5.04 "	0.98 in	25 mm	128 mm	60 mm	2.36 "	2.5 A
MEAN WELL USA Inc. RSD-60H-12	92.5 %	ITE (Commercial) Railway	160 V	Chassis Mount	4000 V	60 W	1	12 V	Enclosed	CE	40 V	5.04 "	0.98 in	25 mm	128 mm	60 mm	2.36 "		5 A
MEAN WELL USA Inc. RSD-60L-24	91.5 %	ITE (Commercial) Railway	72 V	Chassis Mount	4000 V	60 W	1	24 V	Enclosed	CE	18 V	5.04 "	0.98 in	25 mm	128 mm	60 mm	2.36 "	2.5 A
MEAN WELL USA Inc. RSD-60G-12	92 %	ITE (Commercial) Railway	36 V	Chassis Mount	4000 V	60 W	1	12 V	Enclosed	CE	9 V	5.04 "	0.98 in	25 mm	128 mm	60 mm	2.36 "		5 A
MEAN WELL USA Inc. RSD-60G-24	90 %	ITE (Commercial) Railway	36 V	Chassis Mount	4000 V	60 W	1	24 V	Enclosed	CE	9 V	5.04 "	0.98 in	25 mm	128 mm	60 mm	2.36 "	2.5 A
