055460 Series

Manufacturer: Molex

Catalog

CONN HEADER SMD 12POS 2MM

Part	Number of Rows	Insulation Material	Contact Finish - Post	Shrouding	Insulation Height [z]	Insulation Height [z]	Termination	Connector Type	Contact Material	Fastening Type	Contact Type	Mounting Type	Number of Positions	Style	Number of Positions Loaded	Contact Shape	Pitch - Mating [x]	Pitch - Mating [x]	Insulation Color	Material Flammability Rating	Features
Molex 0554601272	1	Nylon Polyamide (PA)	Tin	Shrouded - 4 Wall	7 mm	0.276 in	Solder	Header	Brass	Detent Lock	Male Pin	Surface Mount	12	Board to Board Cable	All	Square	0.079 in	2 mm	Natural	UL94 V-0	Solder Retention
Molex 0554600372	1	Nylon Polyamide (PA)	Tin	Shrouded - 4 Wall	7 mm	0.276 in	Solder	Header	Brass	Detent Lock	Male Pin	Surface Mount		Board to Board Cable	All	Square	0.079 in	2 mm	Natural	UL94 V-0	Solder Retention
Molex 0554600572	1	Nylon Polyamide (PA)	Tin	Shrouded - 4 Wall	7 mm	0.276 in	Solder	Header	Brass	Detent Lock	Male Pin	Surface Mount		Board to Board Cable	All	Square	0.079 in	2 mm	Natural	UL94 V-0	Solder Retention
Molex 0554600872	1	Nylon Polyamide (PA)	Tin	Shrouded - 4 Wall	7 mm	0.276 in	Solder	Header	Brass	Detent Lock	Male Pin	Surface Mount	8	Board to Board Cable	All	Square	0.079 in	2 mm	Natural	UL94 V-0	Solder Retention
Molex 0554601072	1	Nylon Polyamide (PA)	Tin	Shrouded - 4 Wall	7 mm	0.276 in	Solder	Header	Brass	Detent Lock	Male Pin	Surface Mount	10	Board to Board Cable	All	Square	0.079 in	2 mm	Natural	UL94 V-0	Solder Retention
Molex 0554601372	1	Nylon Polyamide (PA)	Tin	Shrouded - 4 Wall	7 mm	0.276 in	Solder	Header	Brass	Detent Lock	Male Pin	Surface Mount	13	Board to Board Cable	All	Square	0.079 in	2 mm	Natural	UL94 V-0	Solder Retention

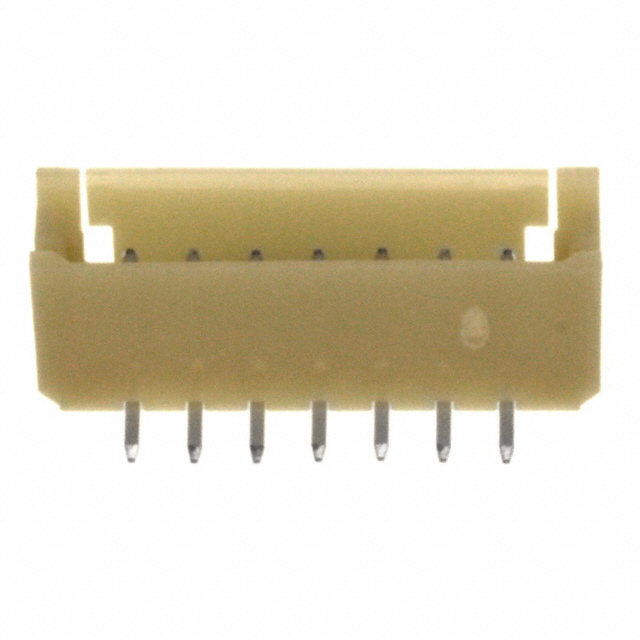

Molex 0554600772	1	Nylon Polyamide (PA)	Tin	Shrouded - 4 Wall	7 mm	0.276 in	Solder	Header	Brass	Detent Lock	Male Pin	Surface Mount	7	Board to Board Cable	All	Square	0.079 in	2 mm	Natural	UL94 V-0	Solder Retention
