ACSC03 Series

Catalog

DISPLAY 7SEG 0.3" SGL GRN 10SMD

Part	Current - Test	Power Dissipation (Max) [Max]	Number of Characters	Common Pin	Millicandela Rating	Display Type	Voltage - Forward (Vf) (Typ)	Digit/Alpha Size	Digit/Alpha Size	Color	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Package / Case	Wavelength - Peak
Kingbright ACSC03-41CGKWA-F01	20 mA	75 mw	1	Common Cathode	12 mcd	7-Segment	2.1 V	7.62 mm	0.3 in	Green	7.3 mm	0.287 in	10 mm	3.75 mm	0.394 in	0.148 in	10-SMD No Lead

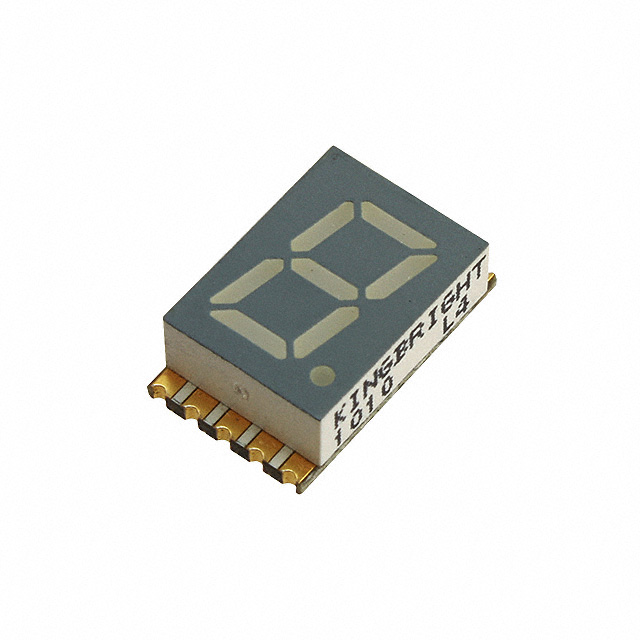

Kingbright ACSC03-41SGWA-F01	20 mA	62.5 mW	1	Common Cathode	3.5 mcd	7-Segment	2.2 V	7.62 mm	0.3 in	Green	7.3 mm	0.287 in	10 mm	3.75 mm	0.394 in	0.148 in	10-SMD No Lead	565 nm
Kingbright ACSC03-41EWA-F01	20 mA	75 mw	1	Common Cathode	4.21 mcd	7-Segment	2 V	7.62 mm	0.3 in	Red	7.3 mm	0.287 in	10 mm	3.75 mm	0.394 in	0.148 in	10-SMD No Lead	627 nm
Kingbright ACSC03-41SEKWA-F01	20 mA	75 mw	1	Common Cathode	46 mcd	7-Segment	2.1 V	7.62 mm	0.3 in		7.3 mm	0.287 in	10 mm	3.75 mm	0.394 in	0.148 in	10-SMD No Lead	610 nm
Kingbright ACSC03-41SRWA-F01	20 mA	75 mw	1	Common Cathode	9.8 mcd	7-Segment	1.85 V	7.62 mm	0.3 in	Red	7.3 mm	0.287 in	10 mm	3.75 mm	0.394 in	0.148 in	10-SMD No Lead	660 nm

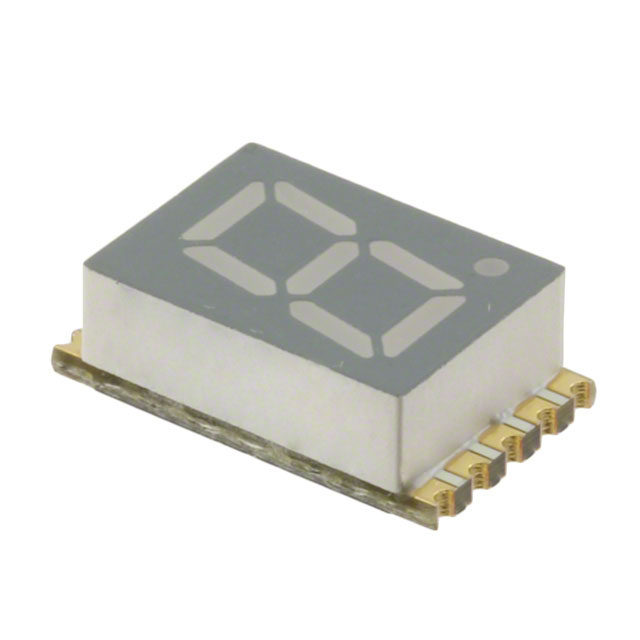

Kingbright ACSC03-41SURKWA-F01	20 mA	75 mw	1	Common Cathode	27 mcd	7-Segment	1.95 V	7.62 mm	0.3 in	Red	7.3 mm	0.287 in	10 mm	3.75 mm	0.394 in	0.148 in	10-SMD No Lead	650 nm
