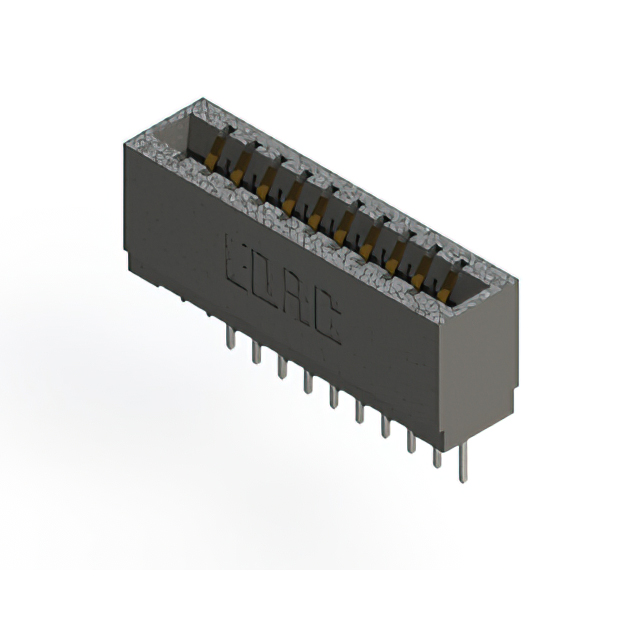

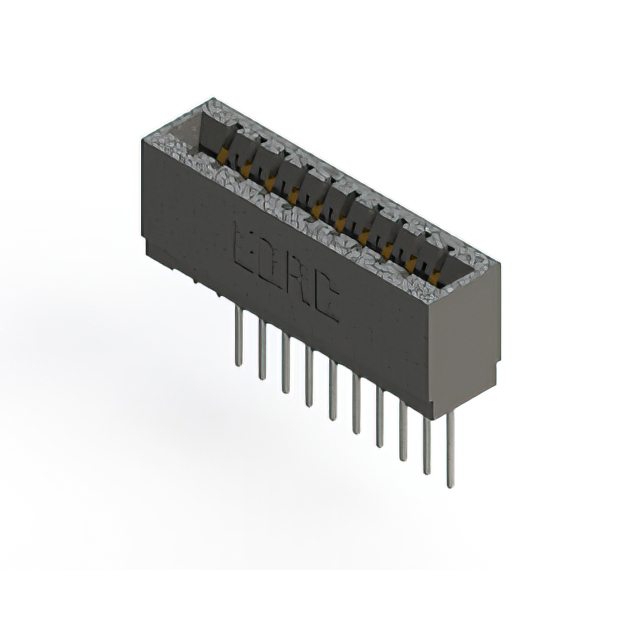

726-010 Series
Manufacturer: EDAC Inc.
Beta
⌘K
CONN EDGE SGL FMALE 10POS 0.125
| Part | Card Type | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Material - Insulation | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish | Read Out | Color | Number of Positions | Contact Finish Thickness | Contact Finish Thickness | Pitch [x] | Pitch [x] | Number of Rows | Gender | Mounting Type | Contact Type | Number of Positions/Bay/Row [custom] | Contact Material | Termination | Termination Rows |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | Non Specified - Single Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Polyester Thermoplastic | -40 °C | 105 ░C | Gold | Single | Black | 10 | 0.76 Ám | 30 Áin | 0.125 in | 3.18 mm | 1 | Female | Through Hole | Cantilever | 10 | Copper Alloy | Press-Fit | 1 |
 EDAC Inc. | Non Specified - Single Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Polyester Thermoplastic | -40 °C | 105 ░C | Gold | Single | Black | 10 | 0.76 Ám | 30 Áin | 0.125 in | 3.18 mm | 1 | Female | Through Hole | Cantilever | 10 | Copper Alloy | Press-Fit Wire Wrap | 1 |
 EDAC Inc. | Non Specified - Dual Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Polyester Thermoplastic | -40 °C | 105 ░C | Gold | Dual | Black | 10 | 0.76 Ám | 30 Áin | 0.125 in | 3.18 mm | 2 | Female | Through Hole | Cantilever | 5 | Copper Alloy | Press-Fit Wire Wrap | 2 |
 EDAC Inc. | Non Specified - Single Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Polyester Thermoplastic | -40 °C | 105 ░C | Gold | Single | Black | 10 | 0.76 Ám | 30 Áin | 0.125 in | 3.18 mm | 1 | Female | Through Hole | Cantilever | 10 | Copper Alloy | Press-Fit Wire Wrap | 1 |
 EDAC Inc. | Non Specified - Single Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Polyester Thermoplastic | -40 °C | 105 ░C | Gold | Single | Black | 10 | 0.76 Ám | 30 Áin | 0.125 in | 3.18 mm | 1 | Female | Through Hole | Cantilever | 10 | Copper Alloy | Press-Fit | 1 |
 EDAC Inc. | Non Specified - Single Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Polyester Thermoplastic | -40 °C | 105 ░C | Gold | Single | Black | 10 | 0.76 Ám | 30 Áin | 0.125 in | 3.18 mm | 1 | Female | Through Hole | Cantilever | 10 | Copper Alloy | Press-Fit | 1 |
 EDAC Inc. | Non Specified - Single Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Polyester Thermoplastic | -40 °C | 105 ░C | Gold | Single | Black | 10 | 0.76 Ám | 30 Áin | 0.125 in | 3.18 mm | 1 | Female | Through Hole | Cantilever | 10 | Copper Alloy | Press-Fit Wire Wrap | 1 |
 EDAC Inc. | Non Specified - Dual Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Polyester Thermoplastic | -40 °C | 105 ░C | Gold | Dual | Black | 10 | 0.76 Ám | 30 Áin | 0.125 in | 3.18 mm | 2 | Female | Through Hole | Cantilever | 5 | Copper Alloy | Press-Fit Wire Wrap | 2 |
 EDAC Inc. | Non Specified - Dual Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Polyester Thermoplastic | -40 °C | 105 ░C | Gold | Dual | Black | 10 | 0.76 Ám | 30 Áin | 0.125 in | 3.18 mm | 2 | Female | Through Hole | Cantilever | 5 | Copper Alloy | Press-Fit | 2 |
 EDAC Inc. | Non Specified - Dual Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Polyester Thermoplastic | -40 °C | 105 ░C | Gold | Dual | Black | 10 | 0.76 Ám | 30 Áin | 0.125 in | 3.18 mm | 2 | Female | Through Hole | Cantilever | 5 | Copper Alloy | Press-Fit | 2 |
