XAUY20 Series
Manufacturer: SunLED
Beta
⌘K

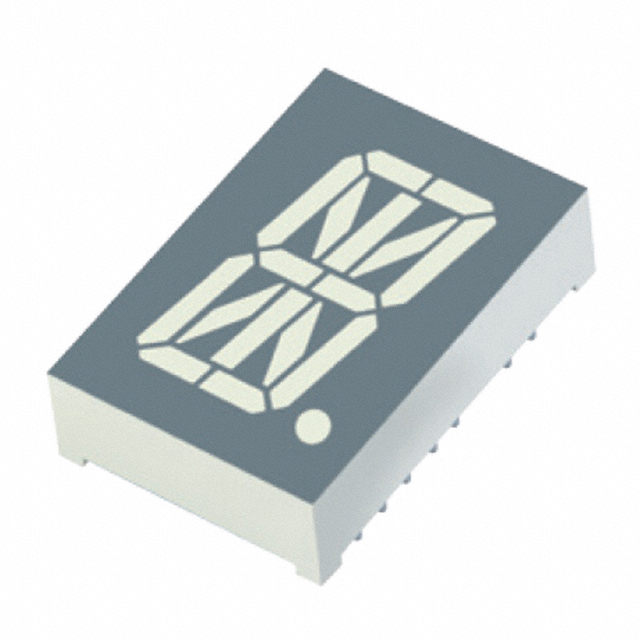

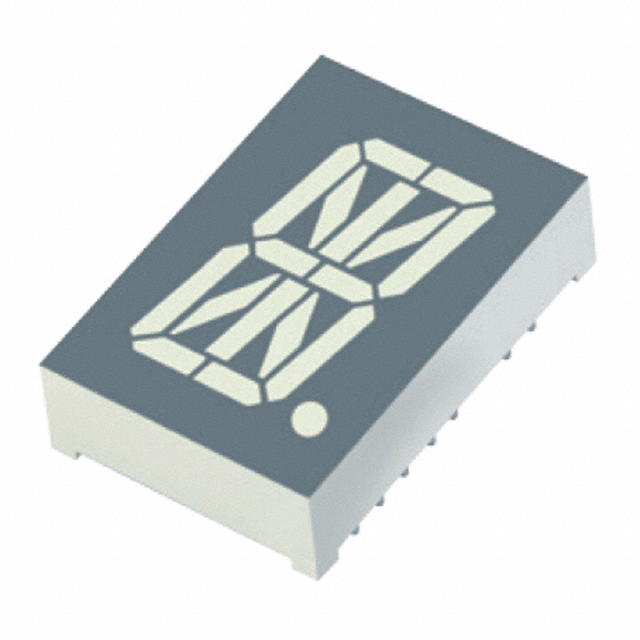

DISPLAY 16SEG 0.8" SGL YLW 18DIP
| Part | Package / Case [x] | Package / Case [x] | Package / Case | Current - Test | Power Dissipation (Max) [Max] | Color | Display Type | Millicandela Rating | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Digit/Alpha Size | Digit/Alpha Size | Wavelength - Peak | Number of Characters | Common Pin | Voltage - Forward (Vf) (Typ) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 SunLED | 15.24 mm | 0.6 in | 18-DIP | 10 mA | 75 mw | Yellow | 16-Segment Alphanumeric | 2 mcd | 8.5 mm | 27.7 mm | 20 mm | 0.787 in | 1.091 " | 0.335 in | 0.8 in | 20.32 mm | 590 nm | 1 | Common Cathode | 1.95 V |
 SunLED | 15.24 mm | 0.6 in | 18-DIP | 10 mA | 75 mw | Yellow | 16-Segment Alphanumeric | 2 mcd | 8.5 mm | 27.7 mm | 20 mm | 0.787 in | 1.091 " | 0.335 in | 0.8 in | 20.32 mm | 590 nm | 1 | Common Anode | 1.95 V |
