1508 Series
Manufacturer: Curtis Industries
Beta
⌘K

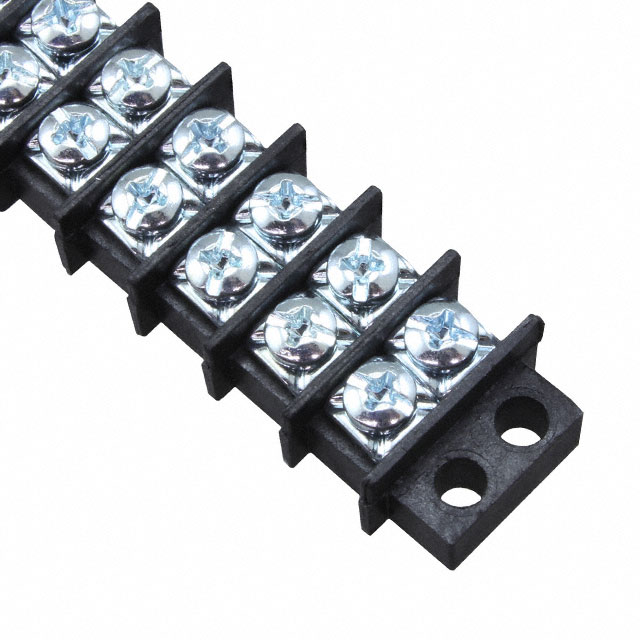

CONN BARRIER STRIP 8CIRC 0.375"
| Part | Number of Wire Entries | Barrier Type | Top Termination | Pitch | Features | Wire Gauge (AWG) (Max) | Wire Gauge (AWG) (Min) | Number of Circuits | Current Rating | Number of Rows | Terminal Block Type | Bottom Termination | Material Flammability Rating | Mounting Type | Operating Temperature | Terminal Screw Material | Material - Insulation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Curtis Industries | 16 | 2 Wall (Dual) | Screws with Captive Plate | 0.375 in | Flange | 22 AWG | 10 AWG | 8 | 20 A | 2 | Barrier Block | Closed | UL94 V-0 | Chassis Panel | 110 °C | Steel | Polyphenylene Oxide PPO |
 Curtis Industries | 16 | 2 Wall (Dual) | Screws | 0.375 in | Flange | 22 AWG | 10 AWG | 8 | 20 A | 2 | Barrier Block | Wire Wrap | UL94 V-0 | Chassis Panel Through Hole | 110 °C | Steel | Polyphenylene Oxide PPO |
