0066-3 Series

Manufacturer: Mill-Max Manufacturing Corp.

Catalog

CONN PIN RCPT

Part	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish	Tail Diameter [diameter]	Tail Diameter [diameter]	Termination	Contact Finish Thickness	Contact Finish Thickness	Flange Diameter [diameter]	Flange Diameter [diameter]	Contact Material	Tail Type	Socket Depth	Socket Depth	Length - Overall [x]	Length - Overall [x]	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]
Mill-Max Manufacturing Corp. 0066-3-17-80-30-84-02-0	-55 C	125 °C	Tin	0.025 in	0.64 mm	Press-Fit	2.54 µm	100 µin	1.57 mm	0.062 in	Beryllium Copper	Wire Wrap	4.12 mm	0.162 in	0.7 in	17.78 mm	1.45 mm	0.057 in	0.64 mm	0.015 "	0.025 in	0.38 mm

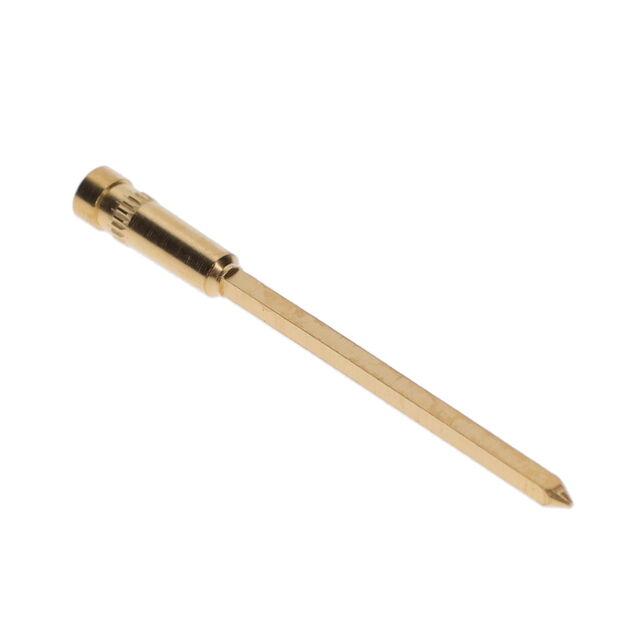

Mill-Max Manufacturing Corp. 0066-3-17-15-30-27-02-0	-55 C	125 °C	Gold	0.025 in	0.64 mm	Press-Fit	0.76 Ám	30 Áin	1.57 mm	0.062 in	Beryllium Copper	Wire Wrap	4.12 mm	0.162 in	0.7 in	17.78 mm	1.45 mm	0.057 in	0.64 mm	0.015 "	0.025 in	0.38 mm
Mill-Max Manufacturing Corp. 0066-3-17-01-30-14-02-0	-55 C	125 °C	Gold	0.025 in	0.64 mm	Press-Fit	0.25 Ám	10 Áin	1.57 mm	0.062 in	Beryllium Copper	Wire Wrap	4.12 mm	0.162 in	0.7 in	17.78 mm	1.45 mm	0.057 in	0.64 mm	0.015 "	0.025 in	0.38 mm
Mill-Max Manufacturing Corp. 0066-3-17-80-30-27-02-0	-55 C	125 °C	Gold	0.025 in	0.64 mm	Press-Fit	0.76 Ám	30 Áin	1.57 mm	0.062 in	Beryllium Copper	Wire Wrap	4.12 mm	0.162 in	0.7 in	17.78 mm	1.45 mm	0.057 in	0.64 mm	0.015 "	0.025 in	0.38 mm

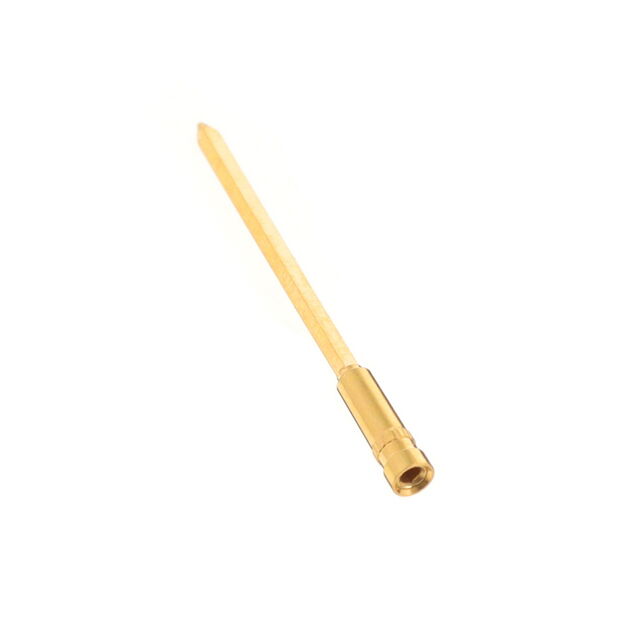

Mill-Max Manufacturing Corp. 0066-3-17-15-30-14-02-0	-55 C	125 °C	Gold	0.025 in	0.64 mm	Press-Fit	0.25 Ám	10 Áin	1.57 mm	0.062 in	Beryllium Copper	Wire Wrap	4.12 mm	0.162 in	0.7 in	17.78 mm	1.45 mm	0.057 in	0.64 mm	0.015 "	0.025 in	0.38 mm
Mill-Max Manufacturing Corp. 0066-3-17-01-30-27-02-0	-55 C	125 °C	Gold	0.025 in	0.64 mm	Press-Fit	0.76 Ám	30 Áin	1.57 mm	0.062 in	Beryllium Copper	Wire Wrap	4.12 mm	0.162 in	0.7 in	17.78 mm	1.45 mm	0.057 in	0.64 mm	0.015 "	0.025 in	0.38 mm
Mill-Max Manufacturing Corp. 0066-3-17-80-30-14-02-0	-55 C	125 °C	Gold	0.025 in	0.64 mm	Press-Fit	0.25 Ám	10 Áin	1.57 mm	0.062 in	Beryllium Copper	Wire Wrap	4.12 mm	0.162 in	0.7 in	17.78 mm	1.45 mm	0.057 in	0.64 mm	0.015 "	0.025 in	0.38 mm
