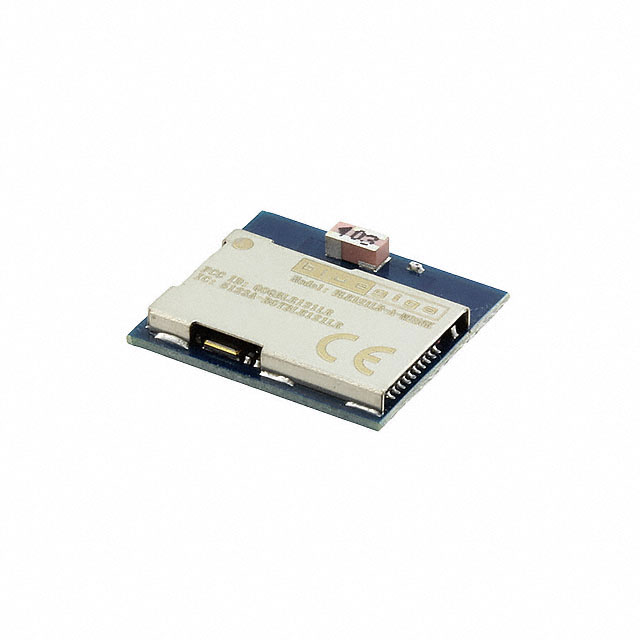

BLE121 Series
Manufacturer: SILICON LABS
Beta
⌘K
RF TXRX MOD BLUETOOTH CHIP SMD
| Part | Memory Size | Data Rate | RF Family/Standard | Protocol | Voltage - Supply [Max] | Voltage - Supply [Min] | Utilized IC / Part | Current - Transmitting [Min] [x] | Current - Transmitting [Max] [x] | Operating Temperature [Max] | Operating Temperature [Min] | Current - Receiving [Min] | Current - Receiving [Max] | Sensitivity | Mounting Type | Power - Output | Antenna Type | Frequency | Serial Interfaces | Package / Case |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 SILICON LABS | 8 kB 256 kB | 2 MBd | Bluetooth | Bluetooth v4.0 | 3.6 V | 2 V | CC2541 | 25 mA | 39 mA | 85 °C | -40 C | 28 mA | 33 mA | -98 dBm | Surface Mount | 8 dBm | Chip Integrated | 2.4 GHz | I2C SPI UART | Module |
 SILICON LABS | 8 kB 256 kB | 2 MBd | Bluetooth | Bluetooth v4.0 | 3.6 V | 2 V | CC2541 | 25 mA | 39 mA | 85 °C | -40 C | 28 mA | 33 mA | -98 dBm | Surface Mount | 8 dBm | Chip Integrated | I2C PCM SPI UART | Module |
