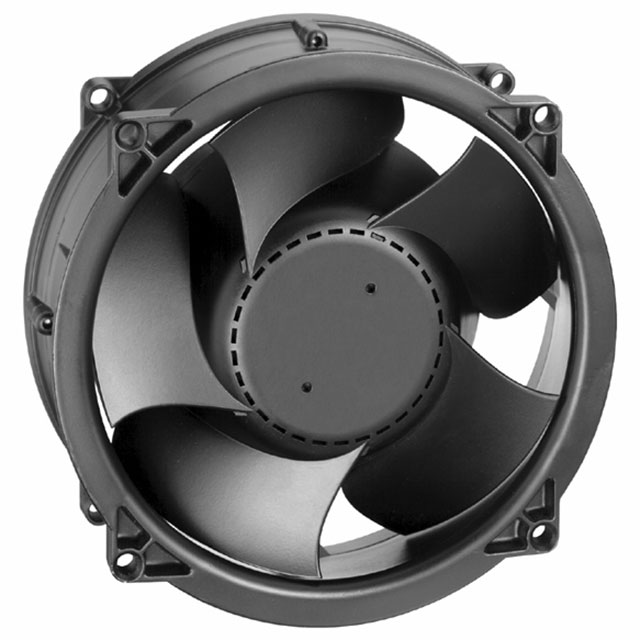

W1G180 Series
Manufacturer: ebm-papst Inc.
Beta
⌘K
DC FAN AXIAL BALL BEARING 24V 16V TO 28V 220 X 70MM
| Part | Material - Blade | Lifetime @ Temp. | Voltage Range [Min] | Voltage Range [Max] | Material - Frame | RPM | Air Flow | Air Flow | Voltage - Rated | Power (Watts) | Weight [custom] | Weight [custom] | Operating Temperature [Min] | Operating Temperature [Max] | Bearing Type | Approval Agency | Width [x] | Fan Type | Size / Dimension | Size / Dimension [diameter] | Termination | Noise |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ebm-papst Inc. | Plastic | 40 °C 42000 Hrs | 16 VDC | 28 V | Aluminum | 4550 RPM | 14.83 m³/min | 529.7 CFM | 24 VDC | 93 W | 1.8 kg | 4 lbs | -25 °C | 60 °C | Ball | CE CSA UL | 70 mm | Tubeaxial | Round | 200 mm | 2 Wire Leads | 68 dB |
