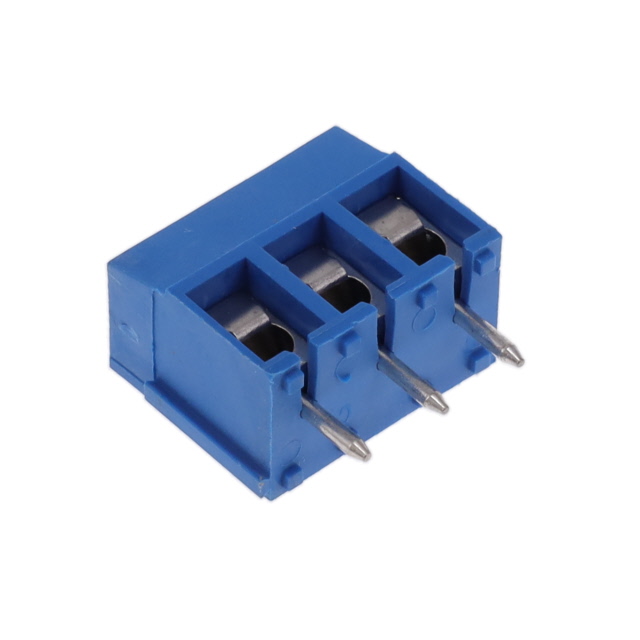

EUROBLOCK 3POS
| Part | Screw Material - Plating | Contact Material - Plating | Housing Material | Operating Temperature [Max] | Operating Temperature [Min] | Torque - Screw | Torque - Screw | Clamp Material - Plating [custom] | Screw Thread | Voltage | Pitch | Pitch | Wire Termination | Positions Per Level | Mounting Type | Current | Color | Number of Levels | Mating Orientation | Features | Wire Gauge [Min] | Wire Gauge [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Adam Tech | Steel - Zinc Plated | Tin | Thermoplastic | 115 °C | -40 C | 3.5 Lb-In | 0.4 Nm | Stainless Steel | M3 | 300 VDC | 5.08 mm | 0.2 in | Screw - Leaf Spring Wire Guard | 3 | Through Hole | 15 A | Blue | 1 | Horizontal with Board | Interlocking (Side) | 14 AWG | 22 AWG |
