AR0231AT Series

CMOS Image Sensor, 2.3 MP, 1/2.7"

Catalog

CMOS Image Sensor, 2.3 MP, 1/2.7"

Part	Pixel Size [x]	Pixel Size [y]	Type	Frames per Second	Active Pixel Array [x]	Active Pixel Array [y]	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Supply [Max]	Voltage - Supply [Min]	Supplier Device Package	Package / Case	Qualification	Grade	Sensor Type	Supplied Contents	Utilized IC / Part
ON Semiconductor AR0231AT7E00XUEAH3-GEVB	3 µm	3 µm	CMOS	40	1928	1208
ON Semiconductor AR0231AT7C00XUEA0-DRBR	3 µm	3 µm	CMOS	60	1928	1208	-40 °C	125 ¯C	1.26 V 3 V	1.14 V 2.6 V	121-IBGA (10x11)	121-LFBGA	AEC-Q100	Automotive
ON Semiconductor AR0231AT7C00XUEA0-DPBR	3 µm	3 µm	CMOS with Processor	40	1928	1208	-40 °C	125 ¯C			121-IBGA (10x11)	121-LFBGA

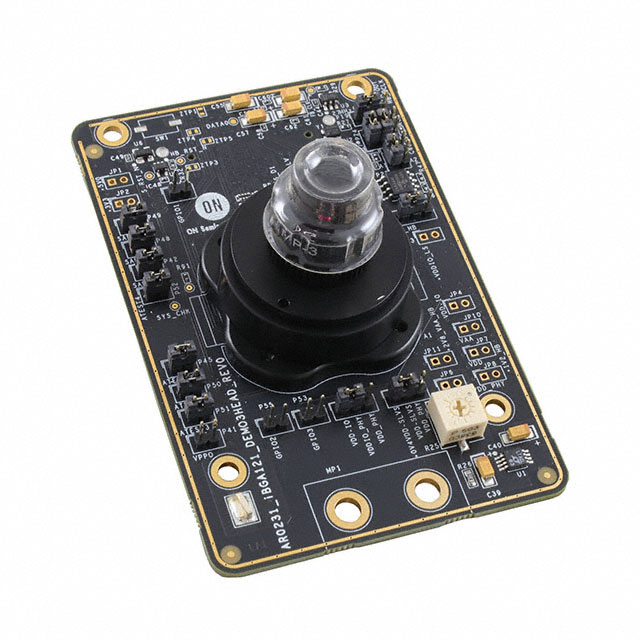

ON Semiconductor AR0231AT7C00XUEAH3-GEVB															Image Sensor	Board(s)	AR0231AT
ON Semiconductor AR0231AT7B00XUEA0-DPBR	3 µm	3 µm	CMOS	40	1928	1208					121-IBGA (11x10)		AEC-Q100	Automotive
ON Semiconductor AR0231AT7B00XUEA0-TPBR	3 µm	3 µm	CMOS	40	1928	1208					121-IBGA (11x10)		AEC-Q100	Automotive
ON Semiconductor AR0231AT7B00XUD20	3 µm	3 µm	CMOS	40	1928	1208					Die	Die

Catalog

CMOS Image Sensor, 2.3 MP, 1/2.7"

Key Features

• High Dynamic Range

• LED Flicker Mitigation (LFM)

• ASIL B Support

• Up to 4−exposure HDR at 1928 × 1208 and 30 fps or 3−exposure HDR at 1928 × 1208 and 40 fps

• Latest 3.0 m Back Side Illuminated (BSI) Pixel with ON Semiconductor DR−Pix Technology

• Data Interfaces: up to 4−lane MIPI CSI−2, Parallel, or up to 4−lane High Speed Pixel Interface (HiSPi) Serial Interface (SLVS and HiVCM)

• Advanced HDR with Flexible Exposure Ratio Control

• Selectable Automatic or User Controlled Black Level Control

• Frame to Frame Switching among up to 4 Contexts to Enable Multi−function Systems

• Spread−spectrum Input Clock Support

• Multi−Camera Synchronization Support

• Multiple CFA Options

Description

The AR0231AT is a 1/2.7-inch CMOS digital image sensor with an active-pixel array of 1928Hx1208V. It includes LED Flicker Mitigation (LFM) that eliminates high frequency LED flicker from traffic signs and vehicle LED lighting and allows Traffic Sign Reading algorithms to operate in all light conditions. The AR0231AT uses the latest 3.0 micron Back Side Illuminated (BSI) pixel with ON Semiconductor’s DR-Pix™ technology, which offers dual conversion gain for improved performance under all lighting conditions. It captures images in linear, HDR or LFM modes, and offers frame-to-frame context switching between modes. The AR0231AT also includes features that support ASIL B.
