MAX17250 Series

Catalog

EVAL MAX17250 BOOST DC-DC

Part	Main Purpose	Voltage - Output	Outputs and Type	Outputs and Type	Supplied Contents	Utilized IC / Part	Board Type	Current - Output	Voltage - Input [Max]	Voltage - Input [Min]	Regulator Topology	Voltage - Output (Max) [Max]	Voltage - Input (Min) [Min]	Frequency - Switching	Operating Temperature [Max]	Operating Temperature [Min]	Number of Outputs	Function	Mounting Type	Topology	Output Type	Package / Case	Supplier Device Package	Output Configuration	Voltage - Input (Max) [Max]

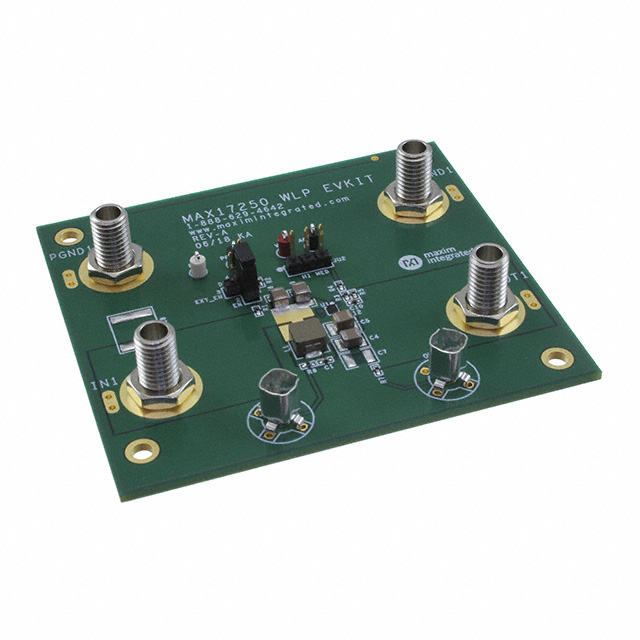

Analog Devices Inc./Maxim Integrated MAX17250EVKIT#WLP	DC/DC Step Up	12 V	Non-Isolated	1	Board(s)	MAX17250	Fully Populated	720 mA	18 V	2.7 V	Boost
Analog Devices Inc./Maxim Integrated MAX17250ATD+												18 V	2.7 V	1 MHz	125 °C	-40 °C	1	Step-Up	Surface Mount	Boost	Adjustable	14-WFDFN Exposed Pad	14-TDFN (3x3)	Positive	18 V
Analog Devices Inc./Maxim Integrated MAX17250ANC+												18 V	2.7 V	1 MHz	125 °C	-40 °C	1	Step-Up	Surface Mount	Boost	Adjustable	12-XFBGA WLBGA	12-WLP (1.69x1.46)	Positive	18 V
Analog Devices Inc./Maxim Integrated MAX17250ANC+T												18 V	2.7 V	1 MHz	125 °C	-40 °C	1	Step-Up	Surface Mount	Boost	Adjustable	12-XFBGA WLBGA	12-WLP (1.69x1.46)	Positive	18 V
Analog Devices Inc./Maxim Integrated MAX17250ATD+T												18 V	2.7 V	1 MHz	125 °C	-40 °C	1	Step-Up	Surface Mount	Boost	Adjustable	14-WFDFN Exposed Pad	14-TDFN (3x3)	Positive	18 V
