M80-513 Series

Catalog

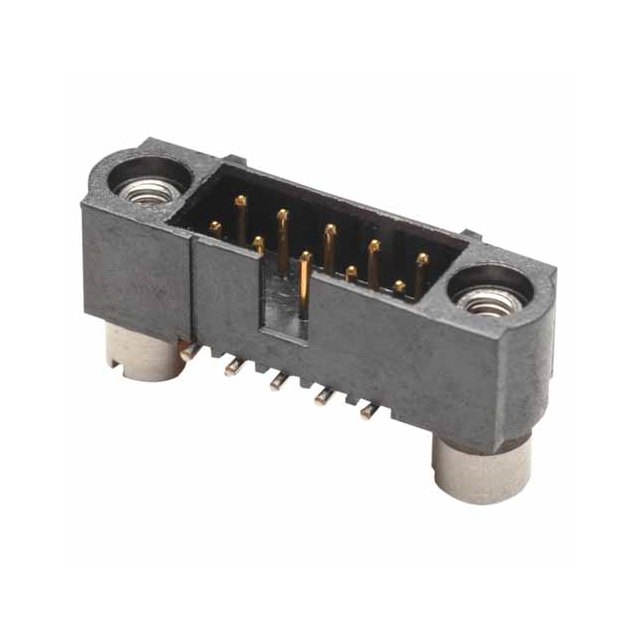

HEADER CONNECTOR,PCB MOUNT,RECEPT,26 CONTACTS,PIN,0.079 PITCH,SURFACE MOUNT TERMINAL,M2X0.4 ROHS COMPLIANT: YES

Part	Contact Finish Thickness - Post [custom]	Contact Finish Thickness - Post [custom]	Mated Stacking Heights	Connector Type	Contact Finish - Mating	Voltage Rating	Style	Insulation Height [z]	Insulation Height [z]	Insulation Material	Contact Type	Mounting Type	Material Flammability Rating	Number of Positions Loaded	Contact Finish - Post	Contact Finish Thickness - Mating [custom]	Contact Finish Thickness - Mating [custom]	Number of Rows [custom]	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Contact Shape	Pitch - Mating	Pitch - Mating	Fastening Type	Row Spacing - Mating	Row Spacing - Mating	Insulation Color	Contact Material	Features	Number of Positions	Termination	Shrouding	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Number of Positions [custom]
Harwin Inc. M80-5132642	118.1 µin	3 µm	7.55 mm 7.95 mm 10.1 mm 11.1 mm 13.65 mm 15.1 mm	Header	Gold	800 V	Board to Board Cable	5.95 mm	0.234 in	Polyphenylene Sulfide (PPS) Glass Filled	Male Pin	Surface Mount	UL94 V-0	All	Tin	29.5 µin	0.75 µm	2	-55 C	125 °C	2.2 A	Circular	0.079 "	2 mm	Threaded	2 mm	0.079 in	Black	Phosphor Bronze	Keying Slot Mating Flange Mounting Flange Mounting Hardware	26	Solder	Shrouded - 4 Wall
Harwin Inc. M80-5135042P			7.55 mm 8.05 mm	Header	Gold	800 VAC	Board to Board Cable	5.95 mm	0.234 in	Polyphenylene Sulfide (PPS) Glass Filled	Male Pin	Surface Mount	UL94 V-0	All	Tin	29.5 µin	0.75 µm	2	-55 C	125 °C	2.2 A	Circular	0.079 "	2 mm	Threaded	2 mm	0.079 in	Black	Phosphor Bronze	Keying Slot Mating Flange Mounting Flange Mounting Hardware	50	Solder	Shrouded - 4 Wall	12 µin	0.3 µm
Harwin Inc. M80-5130622P			7.55 mm 8.05 mm	Header	Gold	800 VAC	Board to Cable/Wire	5.95 mm	0.234 in	Polyphenylene Sulfide (PPS) Glass Filled	Male Pin	Surface Mount	UL94 V-0	All	Tin-Lead	29.5 µin	0.75 µm	2	-55 C	125 °C	2.2 A	Circular	0.079 "	2 mm	Threaded	2 mm	0.079 in	Black	Phosphor Bronze	Keying Slot Mounting Flange Mounting Hardware Pick and Place	6	Solder	Shrouded - 4 Wall	12 µin	0.3 µm
Harwin Inc. M80-5131242	118.1 µin	3 µm	7.55 mm 7.95 mm 10.1 mm 11.1 mm 13.65 mm 15.1 mm	Header	Gold	800 V	Board to Board Cable	5.95 mm	0.234 in	Polyphenylene Sulfide (PPS) Glass Filled	Male Pin	Surface Mount	UL94 V-0	All	Tin	29.5 µin	0.75 µm	2	-55 C	125 °C	2.2 A	Circular	0.079 "	2 mm	Threaded	2 mm	0.079 in	Black	Phosphor Bronze	Keying Slot Mating Flange Mounting Flange Mounting Hardware	12	Solder	Shrouded - 4 Wall
Harwin Inc. M80-5132642P			7.55 mm 8.05 mm	Header	Gold	800 VAC	Board to Board Cable	5.95 mm	0.234 in	Polyphenylene Sulfide (PPS) Glass Filled	Male Pin	Surface Mount	UL94 V-0	All	Tin	29.5 µin	0.75 µm	2	-55 C	125 °C	2.2 A	Circular	0.079 "	2 mm	Threaded	2 mm	0.079 in	Black	Phosphor Bronze	Keying Slot Mating Flange Mounting Flange Mounting Hardware	26	Solder	Shrouded - 4 Wall	12 µin	0.3 µm
Harwin Inc. M80-5130642P			7.55 mm 8.05 mm	Header	Gold	800 VAC	Board to Board Cable	5.95 mm	0.234 in	Polyphenylene Sulfide (PPS) Glass Filled	Male Pin	Surface Mount	UL94 V-0	All	Tin	29.5 µin	0.75 µm	2	-55 C	125 °C	2.2 A	Circular	0.079 "	2 mm	Threaded	2 mm	0.079 in	Black	Phosphor Bronze	Keying Slot Mating Flange Mounting Flange Mounting Hardware	6	Solder	Shrouded - 4 Wall	12 µin	0.3 µm
Harwin Inc. M80-5133422	118.1 µin	3 µm	7.55 mm 7.95 mm 10.1 mm 11.1 mm 13.65 mm 15.1 mm	Header	Gold	800 V	Board to Board Cable	5.95 mm	0.234 in	Polyphenylene Sulfide (PPS) Glass Filled	Male Pin	Surface Mount	UL94 V-0	All	Tin-Lead	29.5 µin	0.75 µm	2	-55 C	125 °C	2.2 A	Circular	0.079 "	2 mm	Threaded	2 mm	0.079 in	Black	Phosphor Bronze	Keying Slot Mating Flange Mounting Flange Mounting Hardware		Solder	Shrouded - 4 Wall			34
Harwin Inc. M80-5134222P			7.55 mm 8.05 mm	Header	Gold	800 VAC	Board to Cable/Wire	5.95 mm	0.234 in	Polyphenylene Sulfide (PPS) Glass Filled	Male Pin	Surface Mount	UL94 V-0	All	Tin-Lead	29.5 µin	0.75 µm	2	-55 C	125 °C	2.2 A	Circular	0.079 "	2 mm	Threaded	2 mm	0.079 in	Black	Phosphor Bronze	Keying Slot Mounting Flange Mounting Hardware Pick and Place	42	Solder	Shrouded - 4 Wall	12 µin	0.3 µm
Harwin Inc. M80-5135042	118.1 µin	3 µm	7.55 mm 7.95 mm 10.1 mm 11.1 mm 13.65 mm 15.1 mm	Header	Gold	800 V	Board to Board Cable	5.95 mm	0.234 in	Polyphenylene Sulfide (PPS) Glass Filled	Male Pin	Surface Mount	UL94 V-0	All	Tin	29.5 µin	0.75 µm	2	-55 C	125 °C	2.2 A	Circular	0.079 "	2 mm	Threaded	2 mm	0.079 in	Black	Phosphor Bronze	Keying Slot Mating Flange Mounting Flange Mounting Hardware	50	Solder	Shrouded - 4 Wall
Harwin Inc. M80-5134242P			7.55 mm 8.05 mm	Header	Gold	800 VAC	Board to Cable/Wire	5.95 mm	0.234 in	Polyphenylene Sulfide (PPS) Glass Filled	Male Pin	Surface Mount	UL94 V-0	All	Tin	29.5 µin	0.75 µm	2	-55 C	125 °C	2.2 A	Circular	0.079 "	2 mm	Threaded	2 mm	0.079 in	Black	Phosphor Bronze	Keying Slot Mounting Flange Mounting Hardware Pick and Place	42	Solder	Shrouded - 4 Wall	12 µin	0.3 µm
