83552 Series
Manufacturer: Belden Inc.
Beta
⌘K

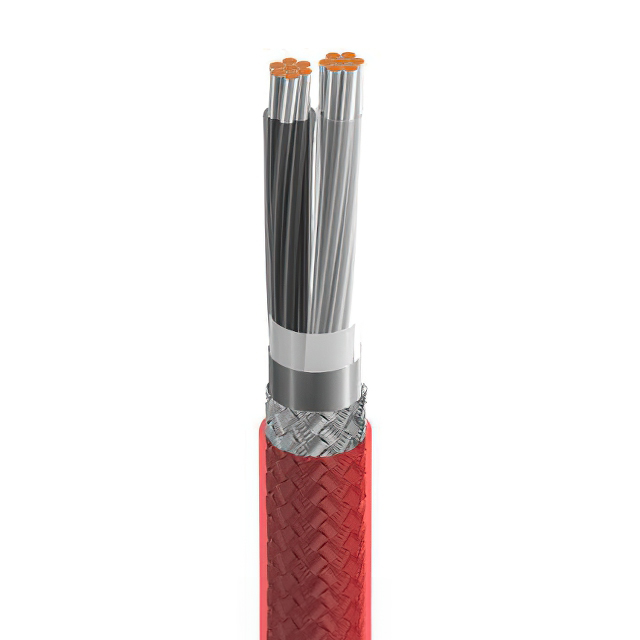

CABLE 2COND 22AWG RED SHLD
| Part | Shield Material | Shield Coverage | Shield Type | Wire Gauge | Voltage | Number of Conductors | Cable Type | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Conductor Strand [custom] | Conductor Strand [custom] | Conductor Material | Length | Length | Operating Temperature [Min] | Operating Temperature [Max] | Usage | Jacket (Insulation) Material | Jacket Color | Conductor Insulation | Ratings | Jacket (Insulation) Diameter | Jacket (Insulation) Diameter |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | Aluminum Copper Tinned | 85 % 100 % | Braid Foil | 22 AWG | 300 VDC | 2 | Multi-Conductor | 0.014 in | 0.356 mm | 30 AWG | 7 | Copper Tinned | 152.4 m | 500 ft | -70 °C | 200 °C | Audio Control Instrumentation | Fluorinated Ethylene-Propylene (FEP) Plenum | Red | Fluorinated Ethylene-Propylene (FEP) | UL Style CMP | 0.141 " | 3.58 mm |
 Belden Inc. | Aluminum Copper Tinned | 85 % 100 % | Braid Foil | 22 AWG | 300 VDC | 2 | Multi-Conductor | 0.014 in | 0.356 mm | 30 AWG | 7 | Copper Tinned | 304.8 m | 1000 ft | -70 °C | 200 °C | Audio Control Instrumentation | Fluorinated Ethylene-Propylene (FEP) Plenum | Red | Fluorinated Ethylene-Propylene (FEP) | UL Style CMP | 0.141 " | 3.58 mm |
