012528CD Series

Catalog

BINDER COMBINATION SCREW 1/4-28

Part	Type	Length - Below Head [x]	Length - Below Head [x]	Length - Below Head [x]	Drive Type	Length - Overall	Length - Overall	Head Diameter	Head Diameter [diameter]	Screw Head Type	Material	Thread Size	Head Height [z]	Head Height [z]	Length - Below Head	Length - Below Head	Length - Below Head	Length - Below Head

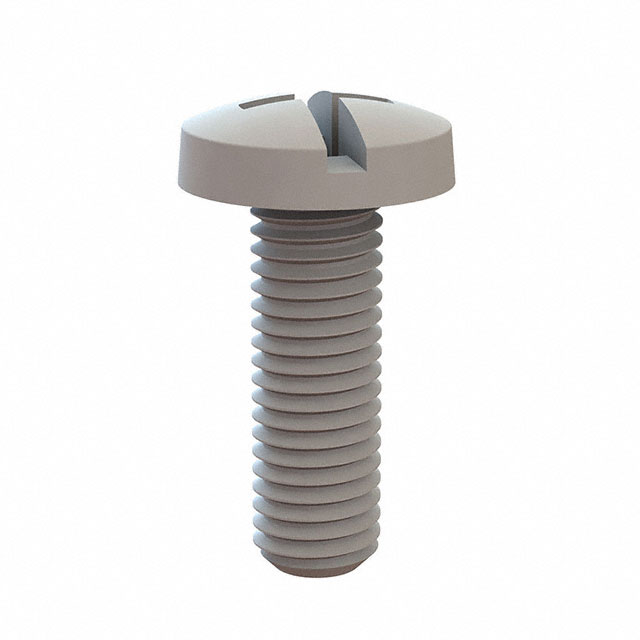

Essentra Components 012528CD075	Machine Screw	0.75 in	19.05 mm	0.75 in	Combination	1.067 in	27.1 mm	12.99 mm	0.511 in	Pan Head	Nylon	0.25 in 28	8.05 mm	0.317 "

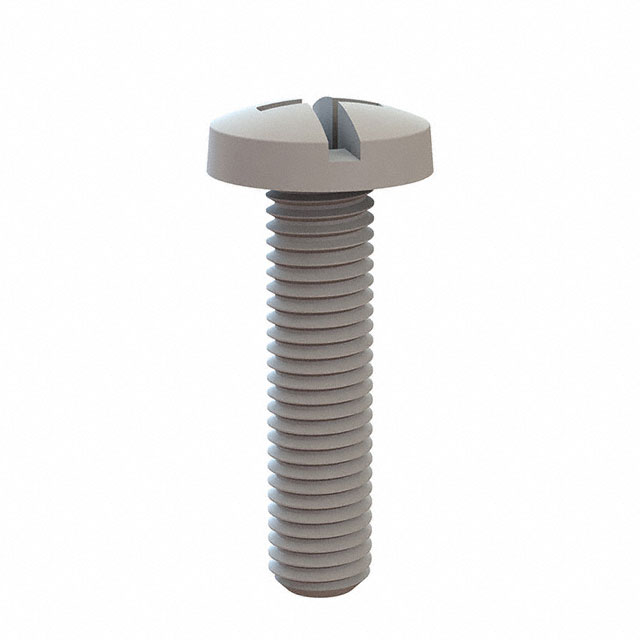

Essentra Components 012528CD100	Machine Screw				Combination	1.317 in	33.45 mm	12.99 mm	0.511 in	Pan Head	Nylon	0.25 in 28	8.05 mm	0.317 "	25.4 mm	1 in

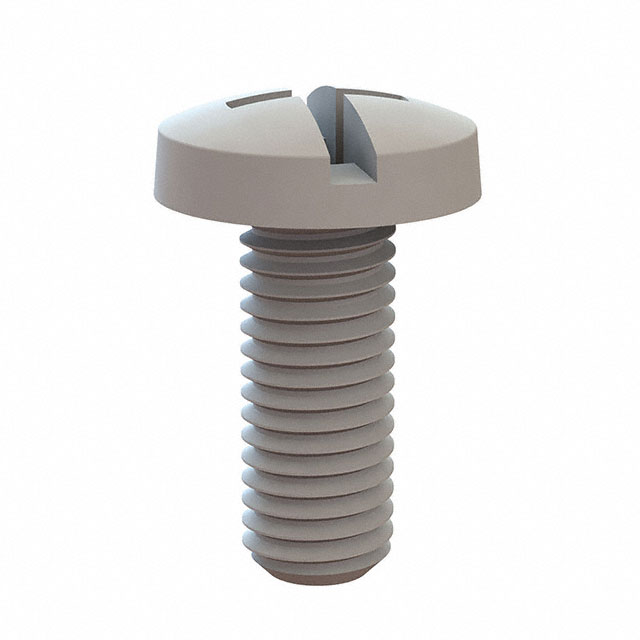

Essentra Components 012528CD062	Machine Screw				Combination	0.942 in	23.93 mm	12.99 mm	0.511 in	Pan Head	Nylon	0.25 in 28	8.05 mm	0.317 "	0.625 in		15.88 mm	0.625 in
