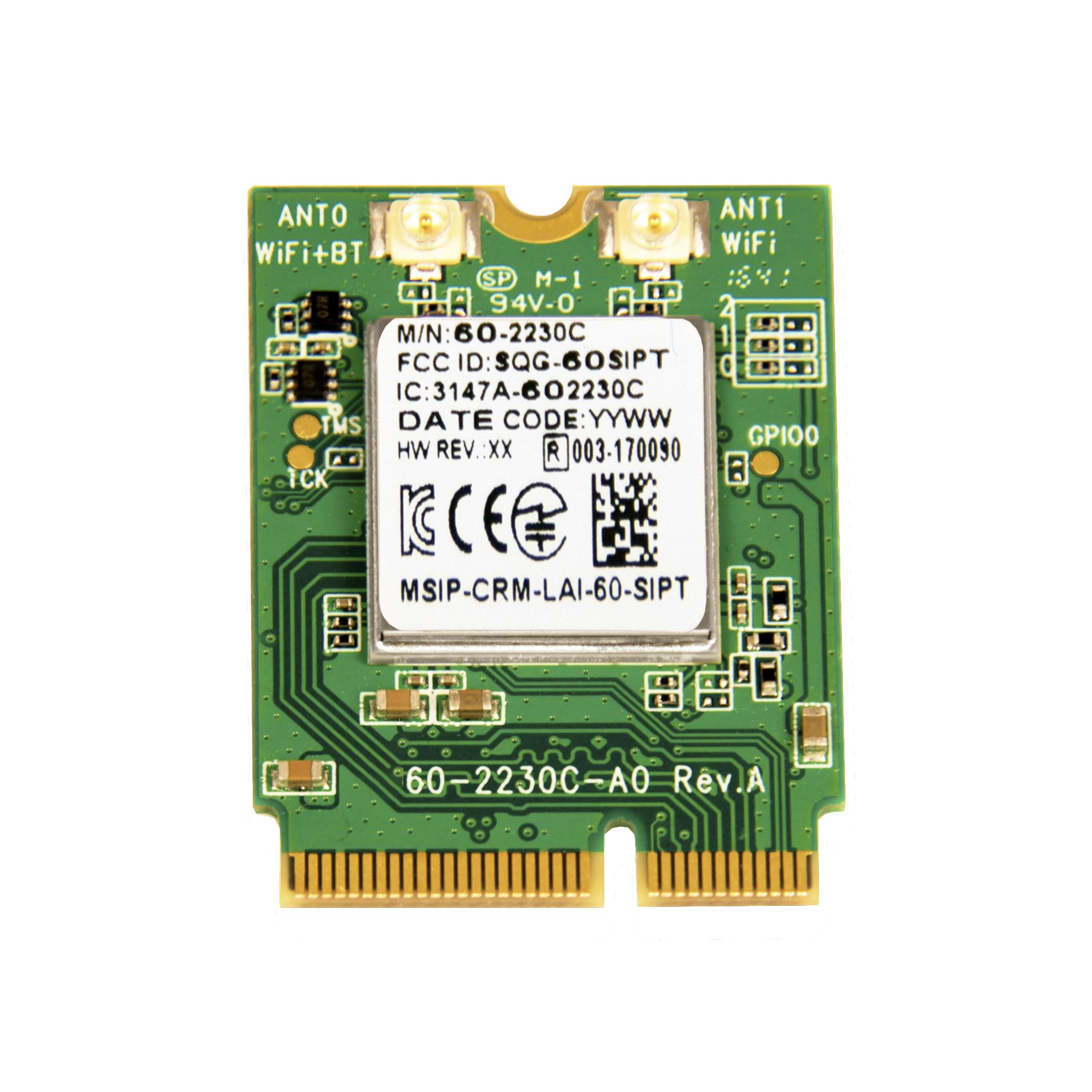

ST60-2230 Series
Manufacturer: Ezurio LLC
Beta
⌘K
WLAN+BT MODULE 2412MHZ TO 2484MHZ/5150MHZ TO 5925MHZ 75-PIN TRAY
| Part | Data Rate | Frequency [Min] | Frequency [Max] | Utilized IC / Part | Package / Case | RF Family/Standard | Protocol | Mounting Type | Serial Interfaces | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Supply [Min] | Voltage - Supply [Max] | Power - Output | Modulation | Sensitivity | Antenna Type | Frequency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Ezurio LLC | 866.7 Mbps | 2.412 GHz 5.15 GHz | 2.484 GHz 5.925 GHz | 88PG823 88W8997 | Module | Bluetooth WiFi | 802.11a/b/g/n/ac Bluetooth v5.1 Class 1 and 2 | Card Edge | USB | 85 °C | -30 °C | 2.97 V | 3.63 V | 18 dBm | 16QAM 256QAM 64QAM BPSK CCK DBPSK DQPSK DSSS OFDM QPSK | -95 dBm | Antenna Not Included U.FL | |
Ezurio LLC | 866.7 Mbps | 2.412 GHz 5.15 GHz | 2.484 GHz 5.925 GHz | 88PG823 88W8997 | Module | Bluetooth WiFi | 802.11a/b/g/n/ac Bluetooth v5.1 Class 1 and 2 | Card Edge | USB | 85 °C | -30 °C | 2.97 V | 3.63 V | 18 dBm | 16QAM 256QAM 64QAM BPSK CCK DBPSK DQPSK DSSS OFDM QPSK | -95 dBm | Antenna Not Included U.FL | |
 Ezurio LLC | 866.7 Mbps | 88PG823 88W8997 | Module | Bluetooth WiFi | 802.11a/b/g/n/ac Bluetooth v4.2 Class 1 and 2 | Card Edge | M.2 SDIO UART USB | 85 °C | -30 ░C | 2.97 V | 3.63 V | 18 dBm | 16QAM 256QAM 64QAM BPSK CCK DBPSK DQPSK DSSS OFDM QPSK | -95 dBm | Antenna Not Included U.FL | 2.4 GHz 5 GHz | ||
Ezurio LLC | 866.7 Mbps | 88PG823 88W8997 | Module | Bluetooth WiFi | 802.11a/b/g/n/ac Bluetooth v4.2 Class 1 and 2 | Card Edge | M.2 SDIO UART USB | 85 °C | -30 ░C | 2.97 V | 3.63 V | 18 dBm | 16QAM 256QAM 64QAM BPSK CCK DBPSK DQPSK DSSS OFDM QPSK | -95 dBm | Antenna Not Included U.FL | 2.4 GHz 5 GHz | ||
Ezurio LLC | 866.7 Mbps | 2.412 GHz 5.15 GHz | 2.484 GHz 5.925 GHz | 88PG823 88W8997 | Module | Bluetooth WiFi | 802.11a/b/g/n/ac Bluetooth v5.1 Class 1 and 2 | Card Edge | UART USB | 85 °C | -30 °C | 2.97 V | 3.63 V | 18 dBm | 16QAM 256QAM 64QAM BPSK CCK DBPSK DQPSK DSSS OFDM QPSK | -95 dBm | Antenna Not Included U.FL | |
Ezurio LLC | 866.7 Mbps | 2.412 GHz 5.15 GHz | 2.484 GHz 5.925 GHz | 88PG823 88W8997 | Module | Bluetooth WiFi | 802.11a/b/g/n/ac Bluetooth v5.1 Class 1 and 2 | Card Edge | UART USB | 85 °C | -30 °C | 2.97 V | 3.63 V | 18 dBm | 16QAM 256QAM 64QAM BPSK CCK DBPSK DQPSK DSSS OFDM QPSK | -95 dBm | Antenna Not Included U.FL |
