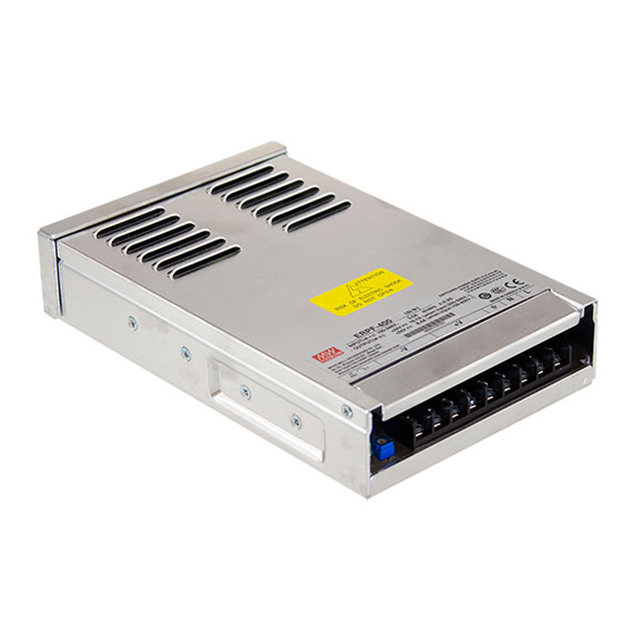

ERPF-400 Series
Manufacturer: MEAN WELL USA Inc.
Beta
⌘K
AC/DC CONVERTER 12V 360W
| Part | Minimum Load Required | Mounting Type | Number of Outputs | Voltage - Isolation | Operating Temperature [Max] | Operating Temperature [Min] | Features | Voltage - Output 1 | Applications | Current - Output 1 | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Voltage - Input [Max] | Voltage - Input [Min] | Power (Watts) | Approval Agency | Type | Efficiency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 MEAN WELL USA Inc. | Chassis Mount | 1 | 3000 V | 60 °C | -30 °C | Adjustable Output PFC Universal Input | 12 V | ITE (Commercial) | 30 A | 5.12 " | 1.89 in | 48 mm | 130 mm | 8.68 in | 220.4 mm | 264 VAC 370 VDC | 90 VAC 127 VDC | 360 W | CCC CE cURus TUV | Enclosed | 89 % | |
MEAN WELL USA Inc. | Chassis Mount | 1 | 3000 V | 60 °C | -30 °C | Adjustable Output PFC Universal Input | 24 V | ITE (Commercial) | 16.7 A | 5.12 " | 1.89 in | 48 mm | 130 mm | 8.68 in | 220.4 mm | 264 VAC 370 VDC | 90 VAC 127 VDC | 401 W | CCC CE cURus TUV | Enclosed | 90 % | |
MEAN WELL USA Inc. | Chassis Mount | 1 | 3000 V | 60 °C | -30 °C | Adjustable Output PFC Universal Input | 48 V | ITE (Commercial) | 8.3 A | 5.12 " | 1.89 in | 48 mm | 130 mm | 8.68 in | 220.4 mm | 264 VAC 370 VDC | 90 VAC 127 VDC | 398 W | CCC CE cURus TUV | Enclosed | 91 % |
