052465 Series

Manufacturer: Molex

Catalog

0.8 BTB HSG ASSY SMT 32CKT EMBST

Part	Mounting Type	Features	Number of Rows	Mated Stacking Heights	Pitch [x]	Pitch [x]	Contact Finish	Connector Type	Number of Positions	Height Above Board	Height Above Board	Contact Finish Thickness	Contact Finish Thickness	Number of Positions
Molex 0524653270
Molex 0524652670
Molex 0524652070	Surface Mount	Board Guide	2	4.5 mm 5.65 mm 7 mm	0.8 mm	0.031 in	Tin	Center Strip Contacts Receptacle	20	3.55 mm	0.14 in	120 µin	3.05 µm
Molex 0524651670
Molex 0524652270
Molex 0524653062

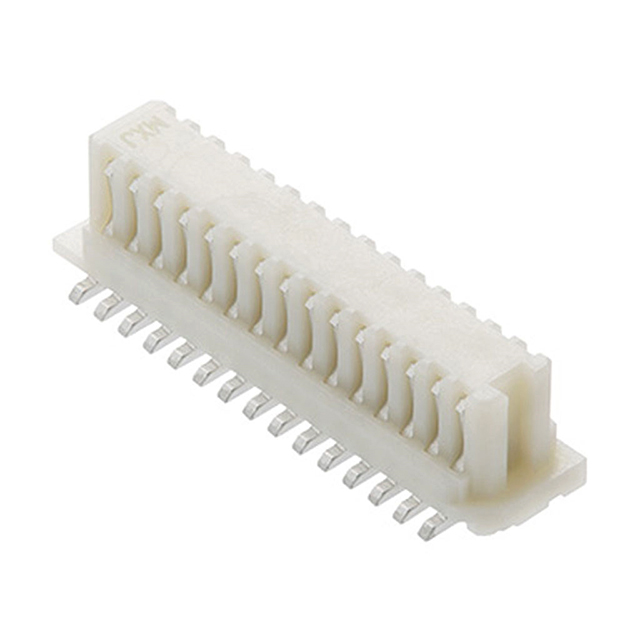

Molex 0524651070	Surface Mount	Board Guide	2	4.5 mm 5.65 mm 7 mm	0.8 mm	0.031 in	Tin	Center Strip Contacts Receptacle	10	3.55 mm	0.14 in	120 µin	3.05 µm
Molex 0524653262	Surface Mount		2		0.8 mm	0.031 in	Gold	Center Strip Contacts Receptacle		3.55 mm	0.14 in	4 Áin	0.1 Ám
Molex 0524654070	Surface Mount	Board Guide	2	4.5 mm 5.65 mm 7 mm	0.8 mm	0.031 in	Tin	Center Strip Contacts Receptacle	40	3.55 mm	0.14 in	120 µin	3.05 µm

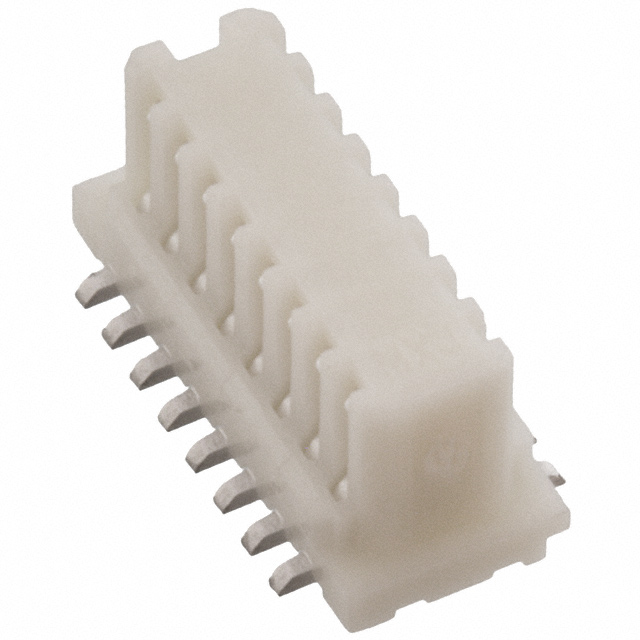

Molex 0524651671	Surface Mount		2	4.5 mm 5.65 mm 7 mm	0.8 mm	0.031 in	Tin	Center Strip Contacts Receptacle		3.55 mm	0.14 in	120 µin	3.05 µm	16
