HCMU04 Series
Manufacturer: Panduit Corp
Beta
⌘K

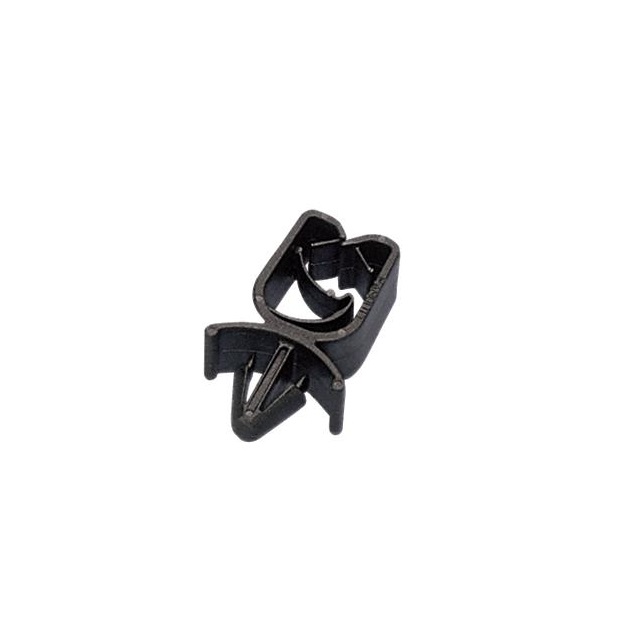

HARNESS CLIP HARNESS CLIP WITH ANCHOR ROHS COMPLIANT: YES
| Part | Panel Thickness [Min] | Panel Thickness [Max] | Panel Thickness [Max] | Panel Thickness [Min] | Mounting Type | Width [x] | Width [x] | Opening Size [Max] | Opening Size [Min] | Type | Type Attributes | Height [z] | Height [z] | Panel Hole Size [Max] | Panel Hole Size [Min] | Panel Hole Size [Min] | Panel Hole Size [Max] | Material | Length | Length | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Panduit Corp | 0.79 mm | 2.29 mm | 0.09 " | 0.031 " | Arrowhead Cupped | 10 mm | 0.394 " | 0.512 in 13 mm | 0.157 in 4 mm | Clip Wire Saddle | Side Entry Webbed | 0.728 in | 18.5 mm | 6.6 mm | 6.3 mm | 0.248 in | 0.26 in | Polyamide (PA66) Nylon 6/6 | 0.925 " | 23.5 mm | Black |
