89007 Series

Catalog

CONN HEADER 60POS PCB

Part	Number of Positions Loaded	Material Flammability Rating	Color	Connector Type	Number of Rows	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Number of Positions	Contact Finish Thickness	Contact Finish Thickness	Pitch [x]	Pitch [x]	Contact Finish	Termination	Connector Style
Amphenol ICC (FCI) 89007-1105LF	All	UL94 V-0	Natural White	Header Male Pins	5	-55 °C	125 °C	Through Hole	60	0.76 Ám	30 Áin	0.079 in	2 mm	Gold	Press-Fit
Amphenol ICC (FCI) 89007-320	All	UL94 V-0	Natural	Header Male Pins	5	-55 °C	125 °C	Through Hole	60	0.76 Ám	30 Áin	0.079 in	2 mm	Gold	Press-Fit

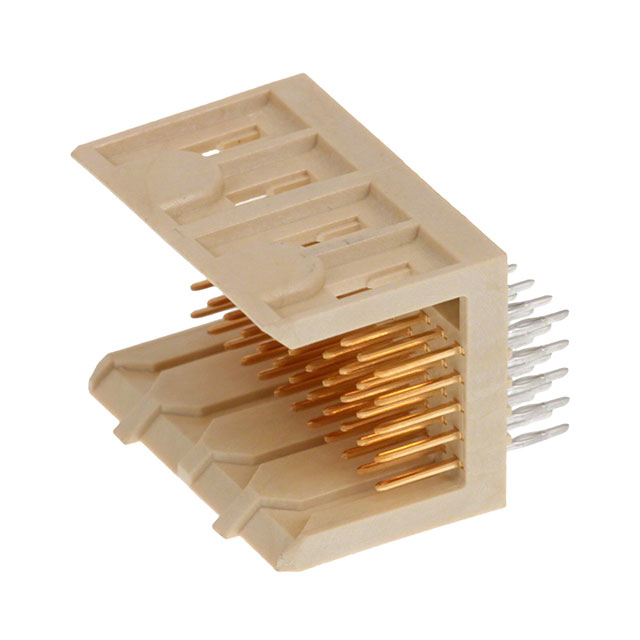

Amphenol ICC (FCI) 89007-116LF	All	UL94 V-0	Natural White	Header Male Pins	5	-55 °C	125 °C	Through Hole	60	0.76 Ám	30 Áin	0.079 in	2 mm	Gold	Press-Fit
Amphenol ICC (FCI) 89007-1111LF	All	UL94 V-0	Natural White	Header Male Pins	5	-55 °C	125 °C	Through Hole	60	0.76 Ám	30 Áin	0.079 in	2 mm	Gold	Press-Fit
Amphenol ICC (FCI) 89007-1112LF	All	UL94 V-0	Natural White	Header Male Pins	5	-55 °C	125 °C	Through Hole	60	0.76 Ám	30 Áin	0.079 in	2 mm	Gold	Press-Fit
Amphenol ICC (FCI) 89007-1124LF	All	UL94 V-0	Natural White	Header Male Pins	5	-55 °C	125 °C	Through Hole	60	0.76 Ám	30 Áin	0.079 in	2 mm	Gold	Press-Fit
Amphenol ICC (FCI) 89007-121LF	All	UL94 V-0	Natural White	Header Male Pins	5	-55 °C	125 °C	Through Hole	60	0.76 Ám	30 Áin	0.079 in	2 mm	Gold	Press-Fit
Amphenol ICC (FCI) 89007-310LF	All	UL94 V-0	Natural	Header Male Pins	5	-55 °C	125 °C	Through Hole	60	0.76 Ám	30 Áin	0.079 in	2 mm	Gold	Press-Fit	High Speed
Amphenol ICC (FCI) 89007-120	All	UL94 V-0	Natural	Header Male Pins	5	-55 °C	125 °C	Through Hole	60	0.76 Ám	30 Áin	0.079 in	2 mm	Gold	Press-Fit
Amphenol ICC (FCI) 89007-1100LF	All	UL94 V-0	Natural	Header Male Pins	5	-55 °C	125 °C	Through Hole	60	0.76 Ám	30 Áin	0.079 in	2 mm	Gold	Press-Fit
