DS650 Series

Catalog

AC/DC CONVERTER 24V 650W

Part	Voltage - Output 1	Features	Current - Output 1	Mounting Type	Approval Agency	Applications	Number of Outputs	Power (Watts)	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Voltage - Input [Max]	Voltage - Input [Min]	Type	Operating Temperature [Max]	Operating Temperature [Min]	Efficiency	Voltage - Input (Min) [Min]	Voltage - Input (Max) [Max]	Current - Output (Max) [Max]
ARTESYN / Advanced Energy DS650-5	24 V	Hot Swappable I2C Interface Load Sharing PFC Remote Sense Standby Output Universal Input	26.3 A	Rack Mount	CB CE	ITE (Commercial)	1	650 W	1.57 "	3.2 "	39.9 mm	11 in	279.4 mm	81.3 mm	264 VAC	90 VAC	Front End	50 °C	-10 °C

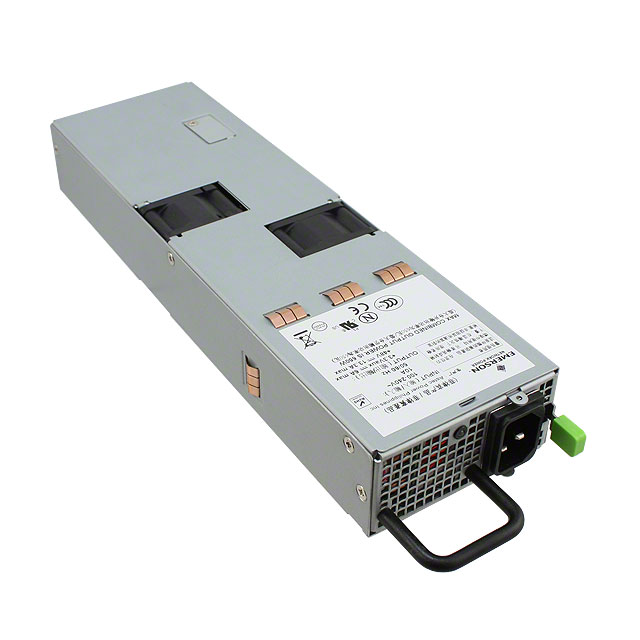

ARTESYN / Advanced Energy DS650-9	48 V	Hot Swappable I2C Interface Load Sharing PFC Remote Sense Standby Output Universal Input	13.1 A	Rack Mount	CB CE	ITE (Commercial)	1	650 W	1.57 "	3.2 "	39.9 mm	11 in	279.4 mm	81.3 mm	264 VAC	90 VAC	Front End	50 °C	-10 °C
ARTESYN / Advanced Energy DS650DC-3-002	12 V			Rack Mount		ITE (Commercial)	1	650 W	1.57 "	3.2 "	39.9 mm	11 in	279.4 mm	81.3 mm			Front End	50 °C	0 °C	80 %	-40 V	-75 V	70 A
ARTESYN / Advanced Energy DS650-3	12 V	Hot Swappable I2C Interface Load Sharing PFC Remote Sense Standby Output Universal Input	52.5 A	Rack Mount	CB CE	ITE (Commercial)	1	650 W	1.57 "	3.2 "	39.9 mm	11 in	279.4 mm	81.3 mm	264 VAC	90 VAC	Front End	50 °C	-10 °C
