A3DDB Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

IDC CABLE- AKR10B/AE10G/AKR10B

Part	Length [x]	Length [x]	Number of Positions	Pitch - Cable	Pitch - Cable	Number of Rows [custom]	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Features	Connector Type	Shielding	Pitch - Connector	Pitch - Connector	Cable Termination	Color	Length	Length	Length	Number of Positions [custom]
TE Connectivity AMP Connectors A3DDB-1018G	457.2 mm	1.5 ft	10	0.05 in	1.27 mm	2	30 Áin	0.76 Ám	Gold	Polarizing Key Strain Relief	Socket to Socket	Unshielded	0.1 in	2.54 mm	IDC

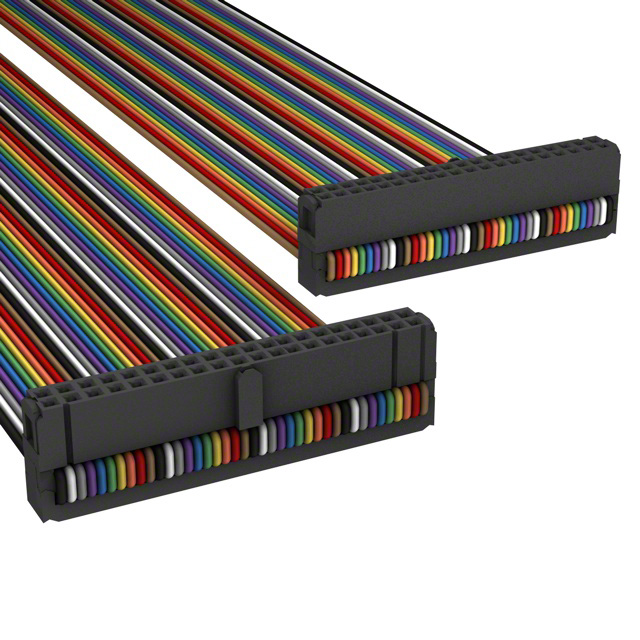

TE Connectivity AMP Connectors A3DDB-4018M	457.2 mm	1.5 ft	40	0.05 in	1.27 mm	2	30 Áin	0.76 Ám	Gold	Polarizing Key Strain Relief	Socket to Socket	Unshielded	0.1 in	2.54 mm	IDC	Multiple Ribbon
TE Connectivity AMP Connectors A3DDB-3406M				0.05 in	1.27 mm	2	30 Áin	0.76 Ám	Gold	Polarizing Key Strain Relief	Socket to Socket	Unshielded	0.1 in	2.54 mm	IDC	Multiple Ribbon	152.4 mm	0.5 '	6 "	34
TE Connectivity AMP Connectors A3DDB-4406M			44	0.05 in	1.27 mm	2	30 Áin	0.76 Ám	Gold	Polarizing Key Strain Relief	Socket to Socket	Unshielded	0.1 in	2.54 mm	IDC	Multiple Ribbon	152.4 mm	0.5 '	6 "

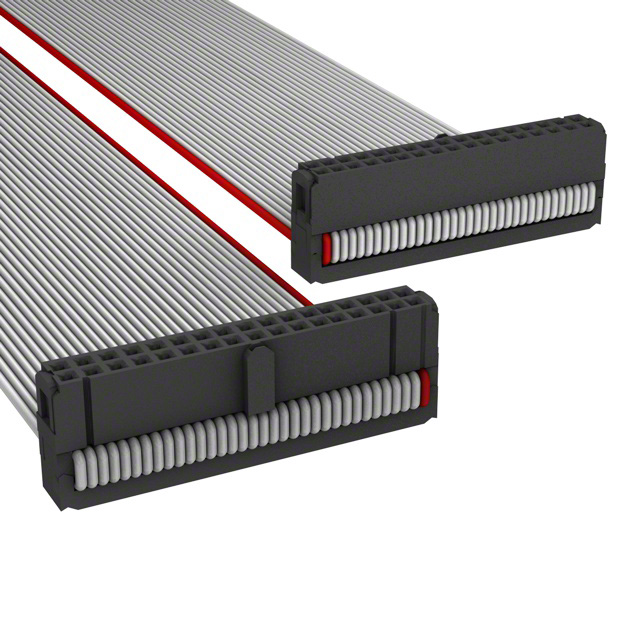

TE Connectivity AMP Connectors A3DDB-3436G				0.05 in	1.27 mm	2	30 Áin	0.76 Ám	Gold	Polarizing Key Strain Relief	Socket to Socket	Unshielded	0.1 in	2.54 mm	IDC		91.44 cm	3 ft		34

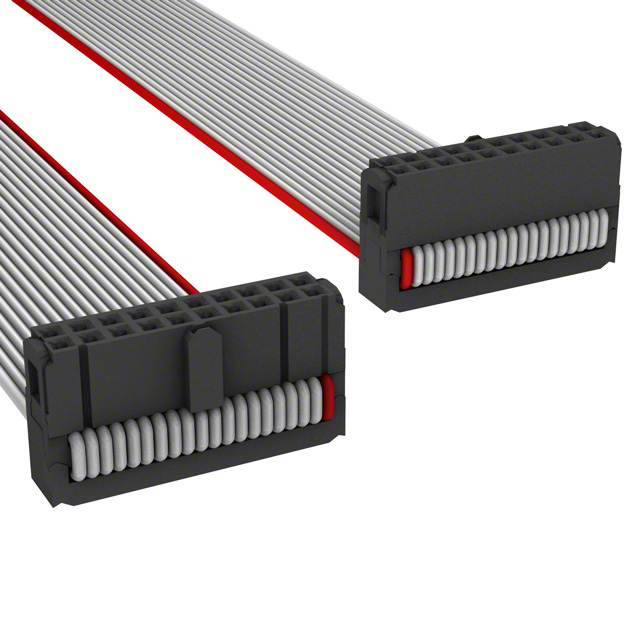

TE Connectivity AMP Connectors A3DDB-2018G	457.2 mm	1.5 ft	20	0.05 in	1.27 mm	2	30 Áin	0.76 Ám	Gold	Polarizing Key Strain Relief	Socket to Socket	Unshielded	0.1 in	2.54 mm	IDC
TE Connectivity AMP Connectors A3DDB-2018M	457.2 mm	1.5 ft	20	0.05 in	1.27 mm	2	30 Áin	0.76 Ám	Gold	Polarizing Key Strain Relief	Socket to Socket	Unshielded	0.1 in	2.54 mm	IDC	Multiple Ribbon
TE Connectivity AMP Connectors A3DDB-4436G			44	0.05 in	1.27 mm	2	30 Áin	0.76 Ám	Gold	Polarizing Key Strain Relief	Socket to Socket	Unshielded	0.1 in	2.54 mm	IDC		91.44 cm	3 ft

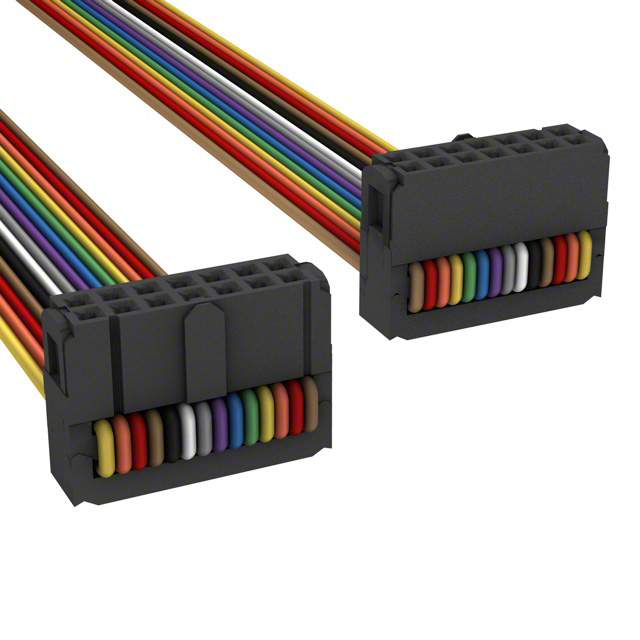

TE Connectivity AMP Connectors A3DDB-1436M			14	0.05 in	1.27 mm	2	30 Áin	0.76 Ám	Gold	Polarizing Key Strain Relief	Socket to Socket	Unshielded	0.1 in	2.54 mm	IDC	Multiple Ribbon	91.44 cm	3 ft
TE Connectivity AMP Connectors A3DDB-4006M			40	0.05 in	1.27 mm	2	30 Áin	0.76 Ám	Gold	Polarizing Key Strain Relief	Socket to Socket	Unshielded	0.1 in	2.54 mm	IDC	Multiple Ribbon	152.4 mm	0.5 '	6 "
