MSP430F5510 Series
Manufacturer: Texas Instruments
Beta
⌘K
25 MHZ MCU WITH 32KB FLASH, 4KB SRAM, 10-BIT ADC, COMPARATOR, DMA, UART/SPI/I2C, USB, HW MULTIPLIER
| Part | Supplier Device Package | Speed | Program Memory Type | Core Processor | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Supply (Vcc/Vdd) [Min] | Voltage - Supply (Vcc/Vdd) [Max] | Number of I/O | Connectivity | Program Memory Size | Mounting Type | Package / Case | Peripherals | Data Converters | Core Size | RAM Size | Oscillator Type | Data Converters [custom] | Data Converters [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

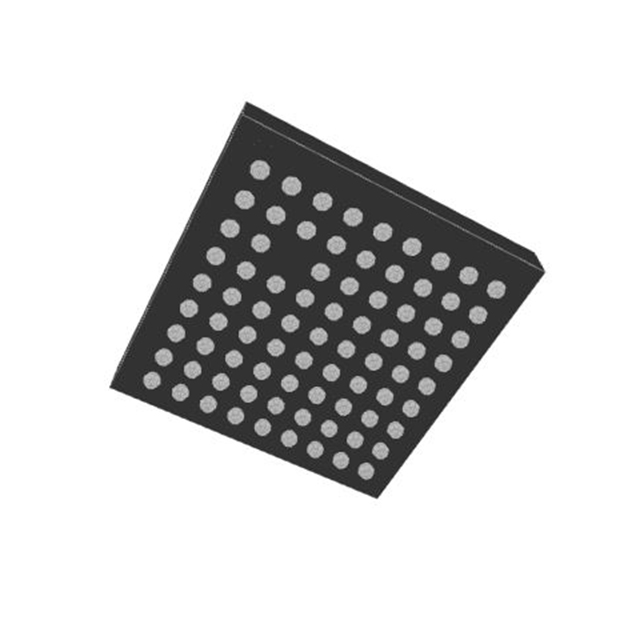

 Texas Instruments | 80-NFBGA (5x5) | 25 MHz | FLASH | MSP430 CPUXV2 | 85 °C | -40 °C | 1.8 V | 3.6 V | 47 | I2C IrDA LINbus SCI SPI UART/USART USB | 32 KB | Surface Mount | 80-VFBGA | Brown-out Detect/Reset DMA POR PWM WDT | 10 b 12 | 16-Bit | 6 K | Internal | ||
Texas Instruments | 80-NFBGA (5x5) | 25 MHz | FLASH | MSP430 CPUXV2 | 85 °C | -40 °C | 1.8 V | 3.6 V | 47 | I2C IrDA LINbus SCI SPI UART/USART USB | 32 KB | Surface Mount | 80-VFBGA | Brown-out Detect/Reset DMA POR PWM WDT | 10 b 12 | 16-Bit | 6 K | Internal | ||
 Texas Instruments | 48-VQFN (7x7) | 25 MHz | FLASH | MSP430 CPUXV2 | 85 °C | -40 °C | 1.8 V | 3.6 V | 31 | I2C IrDA LINbus SCI SPI UART/USART USB | 32 KB | Surface Mount | 48-VFQFN Exposed Pad | Brown-out Detect/Reset DMA POR PWM WDT | 16-Bit | 6 K | Internal | 8 | 10 | |
Texas Instruments | 80-BGA MICROSTAR JUNIOR (5x5) | 25 MHz | FLASH | MSP430 CPUXV2 | 85 °C | -40 °C | 1.8 V | 3.6 V | 47 | I2C IrDA LINbus SCI SPI UART/USART USB | 32 KB | Surface Mount | 80-VFBGA | Brown-out Detect/Reset DMA POR PWM WDT | 10 b 12 | 16-Bit | 6 K | Internal | ||
 Texas Instruments | Diesale | 25 MHz | FLASH | MSP430 CPUXV2 | 1.8 V | 3.6 V | 31 | I2C IrDA LINbus SCI SPI UART/USART USB | 32 KB | Surface Mount | Die | Brown-out Detect/Reset DMA POR PWM WDT | 16-Bit | 6 K | Internal | 8 | 10 | |||
 Texas Instruments | 64-VQFN (9x9) | 25 MHz | FLASH | MSP430 CPUXV2 | 85 °C | -40 °C | 1.8 V | 3.6 V | 47 | I2C IrDA LINbus SCI SPI UART/USART USB | 32 KB | Surface Mount | 64-VFQFN Exposed Pad | Brown-out Detect/Reset DMA POR PWM WDT | 10 b 12 | 16-Bit | 6 K | Internal | ||
 Texas Instruments | 48-LQFP (7x7) | 25 MHz | FLASH | MSP430 CPUXV2 | 85 °C | -40 °C | 1.8 V | 3.6 V | 31 | I2C IrDA LINbus SCI SPI UART/USART USB | 32 KB | Surface Mount | 48-LQFP | Brown-out Detect/Reset DMA POR PWM WDT | 16-Bit | 6 K | Internal | 8 | 10 |
