PMB-32 Series

Catalog

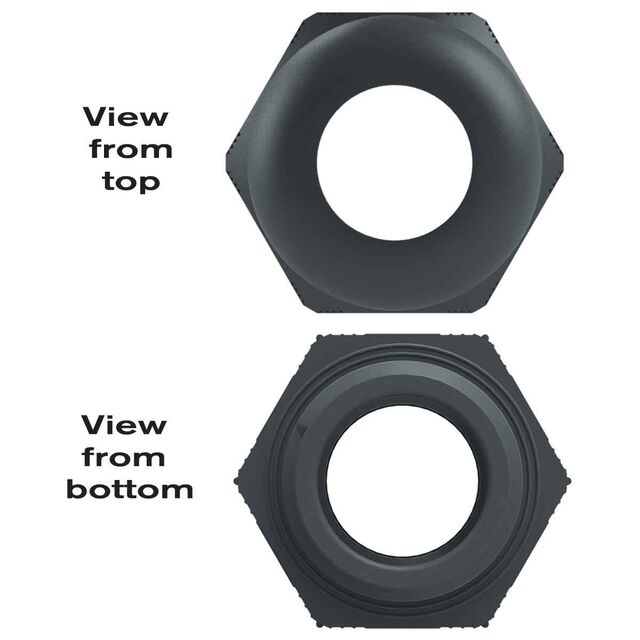

CORD GRIP M32 BLACK CR: 12 - 20

Part	Ingress Protection	Thread Size	Outside Cable Diameter (Max) [Max]	Outside Cable Diameter (Max) [Max]	Color	Includes	Type	Thread Length	Thread Length	Panel Hole Size	Panel Hole Size	Operating Temperature [Min]	Operating Temperature [Max]	Outside Cable Diameter (Min) [Min]	Outside Cable Diameter (Min) [Min]
SAB North America PMB-32R	IP68 - Dust Tight Waterproof	M32x1.5	0.788 in	20.02 mm	Black	Locknut	Cable Gland	0.591 in	15 mm	1.26 in	32 mm	-20 ░C	100 °C	0.472 in	12 mm
