MX34028N Series

Catalog

CONN HEADER R/A 28POS 2.2MM

Part	Applications	Connector Type	Number of Positions	Contact Finish - Post	Contact Type	Contact Length - Mating	Contact Length - Mating	Pitch - Mating	Pitch - Mating	Current Rating (Amps)	Insulation Material	Style	Features	Operating Temperature [Max]	Operating Temperature [Min]	Contact Material	Contact Shape	Fastening Type	Row Spacing - Mating	Row Spacing - Mating	Mounting Type	Number of Rows [custom]	Insulation Height	Insulation Height	Number of Positions Loaded	Insulation Color	Shrouding	Termination	Contact Length - Post [x]	Contact Length - Post [x]
JAE Electronics MX34028NF3	Automotive	Header	28	Tin	Male Pin	0.303 in	7.7 mm	0.087 in	2.2 mm	3 A	Glass Filled Syndiotactic Polystyrene (SPS)	Board to Cable/Wire	Mounting Flange	85 °C	-40 C	Brass	Square	Locking Ramp	0.118 in	3 mm	Right Angle Through Hole	2	0.626 in	15.9 mm	All	Gray	Shrouded - 4 Wall	Solder	0.126 "	3.2 mm

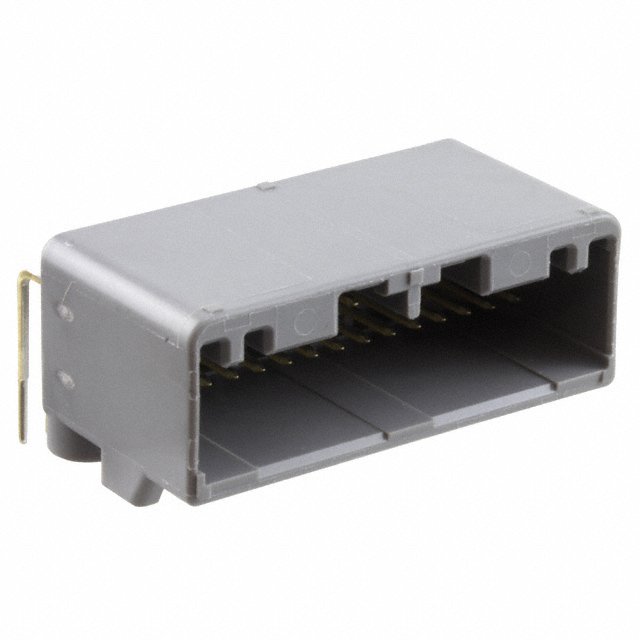

JAE Electronics MX34028NF2	Automotive	Header	28	Tin	Male Pin	0.303 in	7.7 mm	0.087 in	2.2 mm	3 A	Glass Filled Syndiotactic Polystyrene (SPS)	Board to Cable/Wire	Mounting Flange	85 °C	-40 C	Brass	Square	Locking Ramp	0.118 in	3 mm	Right Angle Through Hole	2	0.626 in	15.9 mm	All	Gray	Shrouded - 4 Wall	Solder	0.126 "	3.2 mm
JAE Electronics MX34028NF1	Automotive	Header	28	Tin	Male Pin	0.303 in	7.7 mm	0.087 in	2.2 mm	3 A	Glass Filled Syndiotactic Polystyrene (SPS)	Board to Cable/Wire	Board Lock	85 °C	-40 C	Brass	Square	Locking Ramp	0.118 in	3 mm	Right Angle Through Hole	2	0.626 in	15.9 mm	All	Gray	Shrouded - 4 Wall	Solder	0.126 "	3.2 mm
