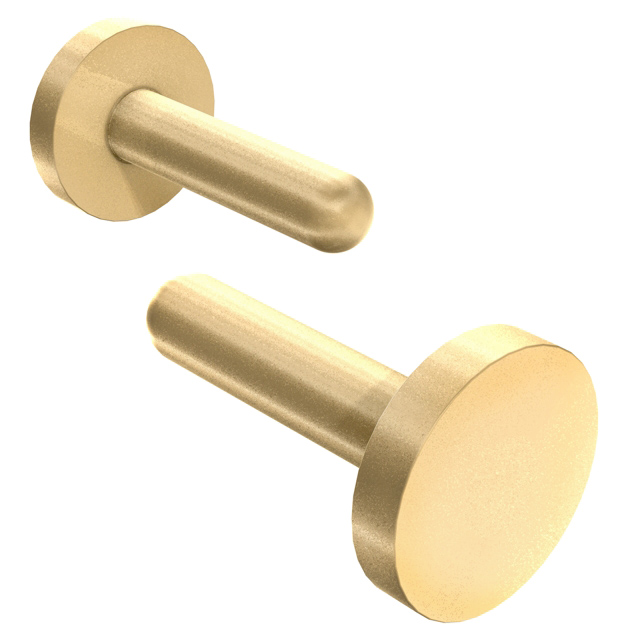

9137-0 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K
CONN PC PIN CIRC 0.018DIA GOLD
| Part | Pin Size - Above Flange [diameter] | Pin Size - Above Flange [diameter] | Contact Finish Thickness | Contact Finish Thickness | Contact Finish | Contact Material | Mounting Type | Insulation | Mounting Hole Diameter [diameter] | Mounting Hole Diameter [diameter] | Terminal Style | Terminal Type | Length - Overall [x] | Length - Overall [x] | Length - Above Flange [x] | Length - Above Flange [x] | Termination | Flange Diameter | Flange Diameter |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | 0.018 in | 0.46 mm | 0.25 Ám | 10 Áin | Gold | Brass Alloy | Through Hole | Non-Insulated | 0.56 mm | 0.022 in | Nail Head Single End | PC Pin | 0.18 in | 4.57 mm | 0.16 in | 4.06 mm | Solder | 0.05 in | 1.27 mm |
