CV62 Series
Manufacturer: TE Connectivity Aerospace, Defense and Marine
Beta
⌘K

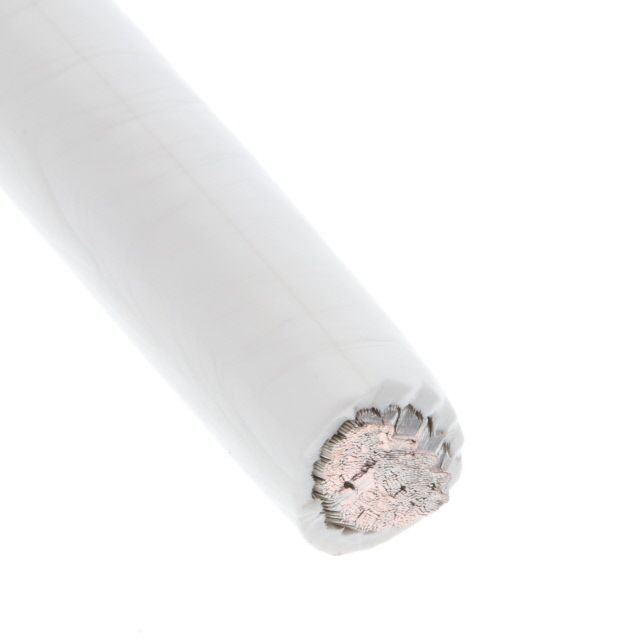

HOOK-UP STRND 2AWG 1000V WHT 25'
| Part | Conductor Strand [custom] | Conductor Strand [custom] | Length | Length | Wire Gauge | Voltage | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Operating Temperature [Min] | Operating Temperature [Max] | Cable Type | Jacket (Insulation) Material | Length [x] | Length [x] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Conductor Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Aerospace, Defense and Marine | 1665 | 34 AWG | 1 ft | 300 mm | 2 AWG | 1000 V | 3.17 mm | 0.125 in | -65 ░C | 260 ░C | Hook-Up | Perfluoroalkoxy (PFA) | 7.62 m 30.5 m | 25 ft 100 ft | 9.83 mm | 0.387 " | Copper Nickel Coated |
