725-044 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE DUAL FMALE 44POS 0.100

Part	Termination Rows [custom]	Material - Insulation	Mounting Type	Read Out	Card Thickness [Max]	Card Thickness [Min]	Contact Finish Thickness	Contact Finish Thickness	Pitch	Pitch	Number of Positions/Bay/Row	Gender	Contact Finish	Card Type	Termination	Color	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Number of Rows [custom]	Number of Positions	Contact Type	Termination Rows	Number of Rows

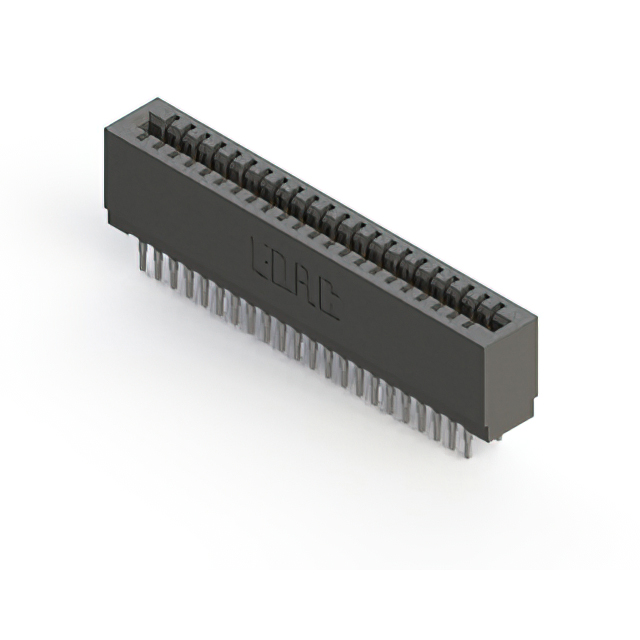

EDAC Inc. 725-044-540-201	2	Polyester Thermoplastic	Through Hole	Dual	0.07 in 1.78 mm	0.054 in 1.37 mm	30 Áin	0.76 Ám	0.1 "	2.54 mm	22	Female	Gold	Non Specified - Dual Edge	Press-Fit Wire Wrap	Black	Copper Alloy	-40 C	105 ░C	2	44	Cantilever

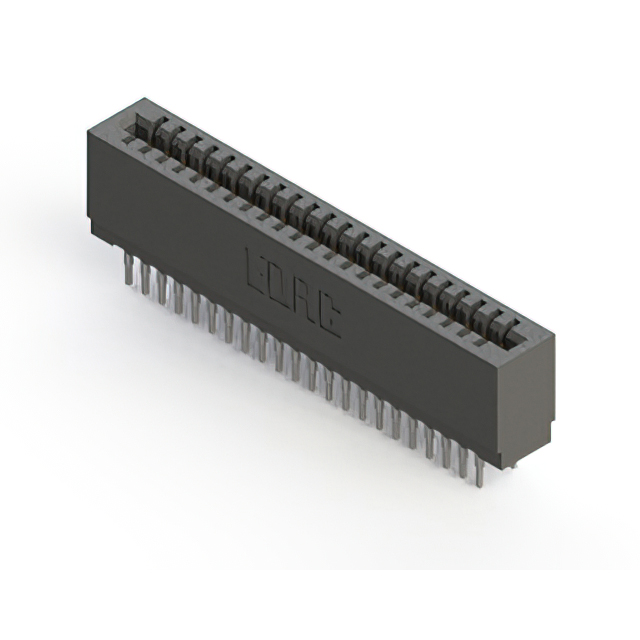

EDAC Inc. 725-044-522-201	2	Polyester Thermoplastic	Through Hole	Dual	0.07 in 1.78 mm	0.054 in 1.37 mm	30 Áin	0.76 Ám	0.1 "	2.54 mm	22	Female	Gold	Non Specified - Dual Edge	Press-Fit	Black	Copper Alloy	-40 C	105 ░C	2	44	Cantilever
EDAC Inc. 725-044-541-101		Polyester Thermoplastic	Through Hole	Single	0.07 in 1.78 mm	0.054 in 1.37 mm	30 Áin	0.76 Ám	0.1 "	2.54 mm	44	Female	Gold	Non Specified - Single Edge	Press-Fit Wire Wrap	Black	Copper Alloy	-40 C	105 ░C		44	Cantilever	1	1
EDAC Inc. 725-044-525-101		Polyester Thermoplastic	Through Hole	Single	0.07 in 1.78 mm	0.054 in 1.37 mm	30 Áin	0.76 Ám	0.1 "	2.54 mm	44	Female	Gold	Non Specified - Single Edge	Press-Fit	Black	Copper Alloy	-40 C	105 ░C		44	Cantilever	1	1

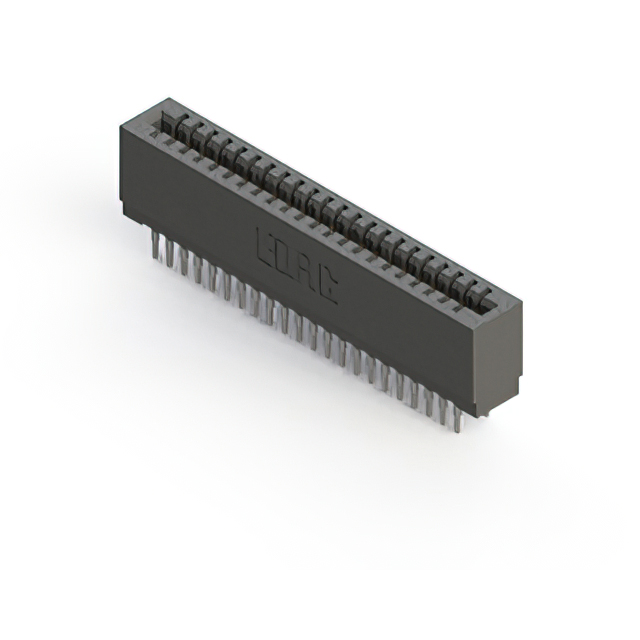

EDAC Inc. 725-044-541-201	2	Polyester Thermoplastic	Through Hole	Dual	0.07 in 1.78 mm	0.054 in 1.37 mm	30 Áin	0.76 Ám	0.1 "	2.54 mm	22	Female	Gold	Non Specified - Dual Edge	Press-Fit Wire Wrap	Black	Copper Alloy	-40 C	105 ░C	2	44	Cantilever
EDAC Inc. 725-044-560-201	2	Polyester Thermoplastic	Through Hole	Dual	0.07 in 1.78 mm	0.054 in 1.37 mm	30 Áin	0.76 Ám	0.1 "	2.54 mm	22	Female	Gold	Non Specified - Dual Edge	Press-Fit	Black	Copper Alloy	-40 C	105 ░C	2	44	Cantilever Make Before Break
EDAC Inc. 725-044-545-101		Polyester Thermoplastic	Through Hole	Single	0.07 in 1.78 mm	0.054 in 1.37 mm	30 Áin	0.76 Ám	0.1 "	2.54 mm	44	Female	Gold	Non Specified - Single Edge	Press-Fit Wire Wrap	Black	Copper Alloy	-40 C	105 ░C		44	Cantilever	1	1

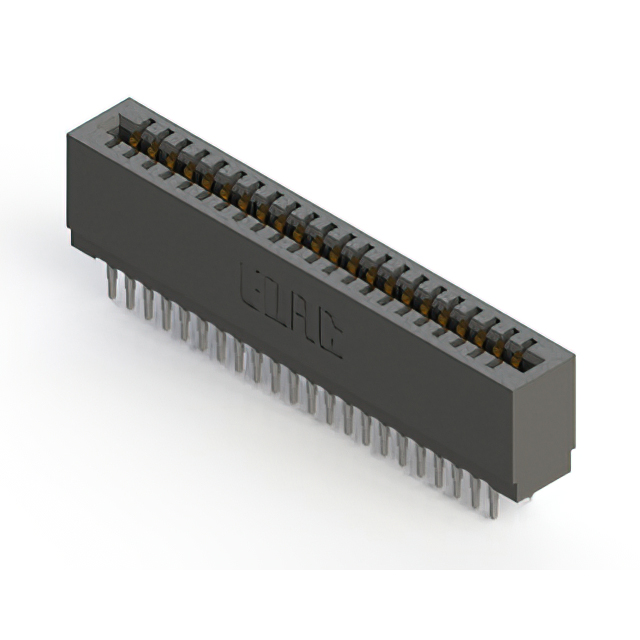

EDAC Inc. 725-044-525-201	2	Polyester Thermoplastic	Through Hole	Dual	0.07 in 1.78 mm	0.054 in 1.37 mm	30 Áin	0.76 Ám	0.1 "	2.54 mm	22	Female	Gold	Non Specified - Dual Edge	Press-Fit	Black	Copper Alloy	-40 C	105 ░C	2	44	Cantilever
