MS3120E18 Series

Manufacturer: Amphenol Aerospace Operations

Catalog

CONN RCPT FMALE 30POS GOLD CRIMP

Part	Shielding	Orientation	Number of Positions	Grade	Connector Type	Termination	Shell Finish	Operating Temperature (Max)	Operating Temperature (Min)	Insert Material	Mounting Feature	Backshell Material	Plating	Color	Mounting Type	Contact Material	Contact Finish - Mating	Qualification	Primary Material	Fastening Type	Ingress Protection	Shell Size - Insert (Maximum)	Shell Size - Insert (Minimum)	Shell Material	Features	Applications	Housing Color	Contact Type	Contact Shape	Note	Contact Size	Type	Shell Size - Insert Width	Shell Size - Insert Length
Amphenol Aerospace Operations MS3120E18-30S	Unshielded	N (Normal)	30	Military	Female Sockets Receptacle	Crimp	Cadmium Olive Drab Chromate	125 °C	-55 °C	Neoprene	Flange	Aluminum	Olive Drab Chromate over Cadmium	Olive Drab	Panel Mount	Copper Alloy	Gold	MIL-DTL-26482 Series I	Metal	Bayonet Lock	Environment Resistant	30	18	Aluminum	Backshell	Aerospace Communication Systems Industrial Instrumentation Mass Transit Military

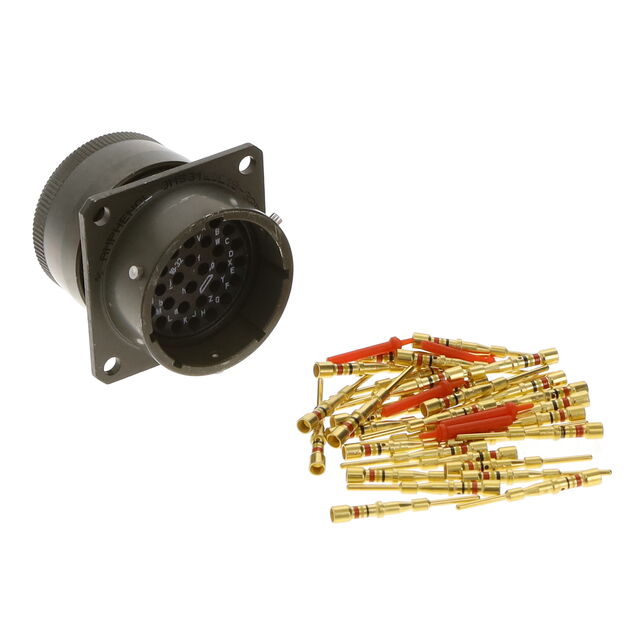

Amphenol Aerospace Operations MS3120E18-32P	Unshielded	N (Normal)	32	Military	Male Pins Receptacle	Crimp	Cadmium Olive Drab Chromate	125 °C	-55 °C	Neoprene	Flange	Aluminum	Olive Drab Chromate over Cadmium	Olive Drab	Panel Mount	Copper Alloy	Gold	MIL-DTL-26482 Series I	Metal	Bayonet Lock	Environment Resistant	32	18	Aluminum	Backshell	Aerospace Communication Systems Industrial Instrumentation Mass Transit Military
Amphenol Aerospace Operations MS3120E18-30P	Unshielded	N (Normal)	30	Military	Male Pins Receptacle	Crimp	Cadmium Olive Drab Chromate	125 °C	-55 °C	Neoprene	Flange	Aluminum	Olive Drab Chromate over Cadmium	Olive Drab	Panel Mount	Copper Alloy	Gold	MIL-DTL-26482 Series I	Metal	Bayonet Lock	Environment Resistant	30	18	Aluminum	Backshell	Aerospace Communication Systems Industrial Instrumentation Mass Transit Military
Amphenol Aerospace Operations MS3120E18-32S-LC	Unshielded	N (Normal)	32	Military	Receptacle Housing		Cadmium Chromate	125 °C	-55 °C	Neoprene	Flange				Panel Mount			MIL-DTL-26482 Series I		Bayonet Lock	Environment Resistant	32	18	Aluminum	Backshell		Olive Drab	Crimp	Circular	Contacts Not Included	20	For Female Sockets
Amphenol Aerospace Operations MS3120E18-32P	Unshielded	N (Normal)	32	Military	Male Pins Receptacle	Crimp	Cadmium Olive Drab Chromate	125 °C	-55 °C	Neoprene	Flange	Aluminum	Olive Drab Chromate over Cadmium	Olive Drab	Panel Mount	Copper Alloy	Gold	MIL-DTL-26482 Series I	Metal	Bayonet Lock	Environment Resistant	32	18	Aluminum	Backshell	Aerospace Communication Systems Industrial Instrumentation Mass Transit Military
Amphenol Aerospace Operations MS3120E18-32B
Amphenol Aerospace Operations MS3120E18-11S	Unshielded	N (Normal)	11	Military	Female Sockets Receptacle	Crimp	Cadmium Olive Drab Chromate	125 °C	-55 °C	Neoprene	Flange	Aluminum	Olive Drab Chromate over Cadmium	Olive Drab	Panel Mount	Copper Alloy	Gold	MIL-DTL-26482 Series I	Metal	Bayonet Lock	Environment Resistant			Aluminum	Backshell	Aerospace Communication Systems Industrial Instrumentation Mass Transit Military							11 mm	18 mm
Amphenol Aerospace Operations MS3120E18-32S	Unshielded	N (Normal)	32	Military	Female Sockets Receptacle	Crimp	Cadmium Olive Drab Chromate	125 °C	-55 °C	Neoprene	Flange	Aluminum	Olive Drab Chromate over Cadmium	Olive Drab	Panel Mount	Copper Alloy	Gold	MIL-DTL-26482 Series I	Metal	Bayonet Lock	Environment Resistant	32	18	Aluminum	Backshell	Aerospace Communication Systems Industrial Instrumentation Mass Transit Military
Amphenol Aerospace Operations MS3120E18-32PLC	Unshielded	N (Normal)	32	Military	Receptacle Housing		Cadmium Chromate	125 °C	-55 °C	Neoprene	Flange				Panel Mount			MIL-DTL-26482 Series I		Bayonet Lock	Environment Resistant	32	18	Aluminum	Backshell		Olive Drab	Crimp	Circular	Contacts Not Included	20	For Male Pins
