5200.0123 Series
Manufacturer: SCHURTER Inc.
Beta
⌘K

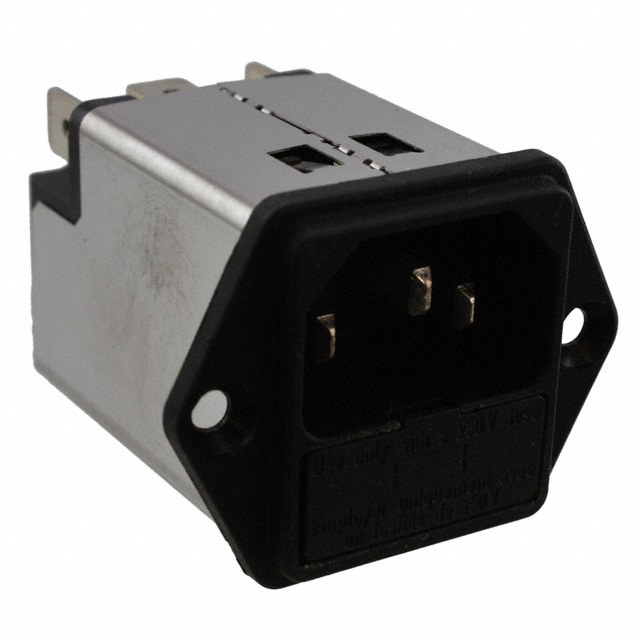

PWR ENT MOD RCPT IEC320-C14 PNL
| Part | Ingress Protection | Current Rating - Filter | Material Flammability Rating | Current Rating - Appliance Inlet | Connector Type | Connector Style | Voltage Rating - Appliance Inlet | Mounting Type | Termination | Termination | Termination | Approval Agency | Panel Cutout Dimensions [x] | Panel Cutout Dimensions [y] | Fuse Holder, Drawer | Accomodates a Fuse | Filter Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 SCHURTER Inc. | IP40 | 1 A | UL94 V-0 | 1 A | Receptacle Male Blades - Module | IEC 320-C14 | 250 VAC | Flange Panel Mount | 6.3 mm | Quick Connect | 0.25 " | cULus ENEC | 32 mm | 29 mm | Fuse Holder | Filtered (EMI RFI) - Commercial | |
 SCHURTER Inc. | IP40 | 1 A | UL94 V-0 | 1 A | Receptacle Male Blades - Module | IEC 320-C14 | 250 VAC | Flange Panel Mount | 6.3 mm | Quick Connect | 0.25 " | cULus ENEC | 32 mm | 29 mm | Fuse Holder | Filtered (EMI RFI) - Commercial Medical |
