282824 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

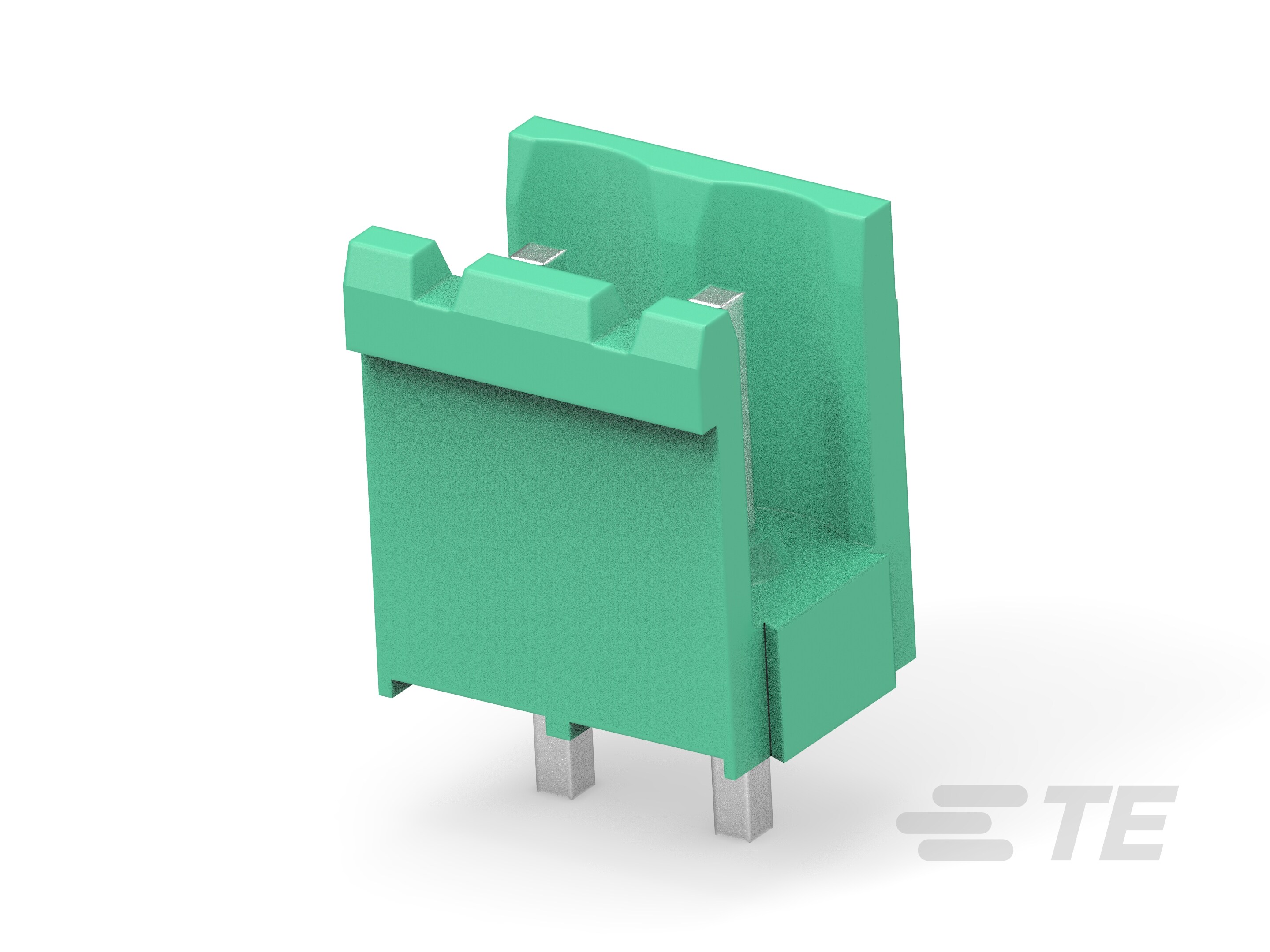

CONN SHROUDED HEADER (2 SIDES) HDR 2 POS 5.08MM SOLDER ST TOP ENTRY THRU-HOLE BOX
| Part | Pitch [x] | Pitch [x] | Number of Positions | Header Orientation | Insulation Height | Insulation Height | Type | Contact Tail Length | Contact Tail Length | Material Flammability Rating | Positions Per Level | Operating Temperature [Min] | Operating Temperature [Max] | Number of Levels | Color | Voltage - UL | Contact Material | Features | Termination Style | Mounting Type | Contact Mating Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | 0.2 in | 5.08 mm | 2 | Vertical | 0.472 in | 12 mm | Header Male Pins Shrouded (2 Side) | 3.5 mm | 0.138 in | UL94 V-0 | 2 | -40 °C | 110 °C | 1 | Green | 300 V | Copper Alloy | Interlocking (Side) | Solder | Through Hole | Tin |
TE Connectivity Raychem Cable Protection | 0.2 in | 5.08 mm | 4 | Vertical | 0.472 in | 12 mm | Header Male Pins Shrouded (2 Side) | 3.5 mm | 0.138 in | UL94 V-0 | 4 | -40 °C | 110 °C | 1 | Green | 300 V | Copper Alloy | Interlocking (Side) | Solder | Through Hole | Tin |
 TE Connectivity Raychem Cable Protection | 0.2 in | 5.08 mm | Vertical | 0.472 in | 12 mm | Header Male Pins Shrouded (2 Side) | 3.5 mm | 0.138 in | UL94 V-0 | 3 | -40 °C | 110 °C | 1 | Green | 300 V | Copper Alloy | Interlocking (Side) | Solder | Through Hole | Tin |
