76501TS Series
Manufacturer: Belden Inc.
Beta
⌘K

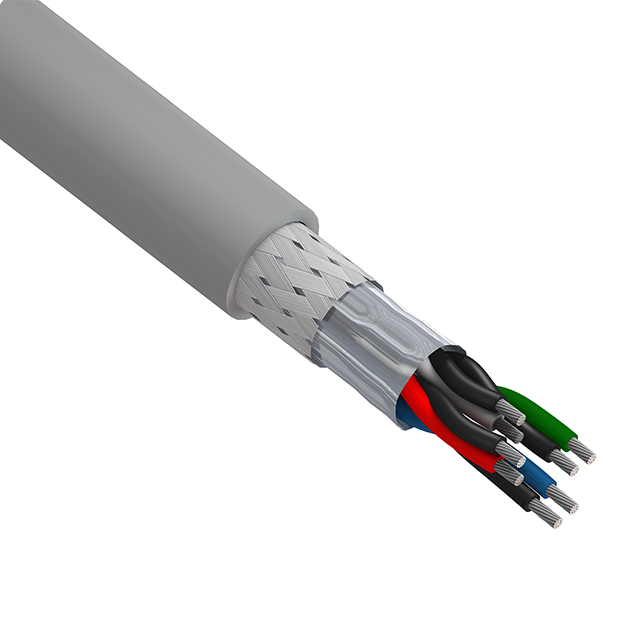

CABLE 2CON 26AWG GRAY SHLD
| Part | Shield Material | Shield Coverage | Conductor Material | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Conductor Strand [x] | Conductor Strand [x] | Length | Length | Features | Voltage | Shield Type | Jacket Color | Wire Gauge | Conductor Insulation | Number of Conductors | Cable Type | Jacket (Insulation) Material | Ratings | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | Aluminum Copper Tinned | 85 % 100 % | Copper Tinned | 1.016 mm | 0.04 in | 0.194 in | 4.93 mm | 34 AWG | 7 | 304.8 m | 1000 ft | Drain Wire Oil Resistant | 300 VDC | Braid Foil | Gray | 26 AWG | Poly-Vinyl Chloride (PVC) | 2 | Multi-Conductor | Poly-Vinyl Chloride (PVC) | UL Style 20006 | ||
Belden Inc. | Aluminum Copper Tinned | 85 % 100 % | Copper Tinned | 1.016 mm | 0.04 in | 0.194 in | 4.93 mm | 34 AWG | 7 | Drain Wire Oil Resistant | 300 VDC | Braid Foil | Gray | 26 AWG | Poly-Vinyl Chloride (PVC) | 2 | Multi-Conductor | Poly-Vinyl Chloride (PVC) | UL Style 20006 | 100 ft | 30.5 m |
