505270 Series

Manufacturer: Molex

Catalog

SLIMSTACK BOARD-TO-BOARD RECEPTACLE, 0.35MM PITCH, SSB RP SERIES, 0.70 OR 0.80MM MATED HEIGHT, 2.00MM MATED WIDTH, 24 CIRCUITS, ARMOR NAIL

Part	Features	Pitch	Pitch	Mounting Type	Contact Finish	Height Above Board	Height Above Board	Mated Stacking Heights	Contact Finish Thickness	Contact Finish Thickness	Number of Positions	Connector Type	Number of Rows [custom]	Number of Positions [custom]
Molex 5052702412	Pick and Place Solder Retention	0.014 in	0.35 mm	Surface Mount	Gold	0.027 in	0.68 mm	0.8 mm	0.1 Ám	4 Áin	24	Receptacle Center Strip Contacts	2
Molex 5052703010	Solder Retention	0.014 in	0.35 mm	Surface Mount	Gold	0.027 in	0.68 mm	0.8 mm			30	Receptacle Center Strip Contacts	2

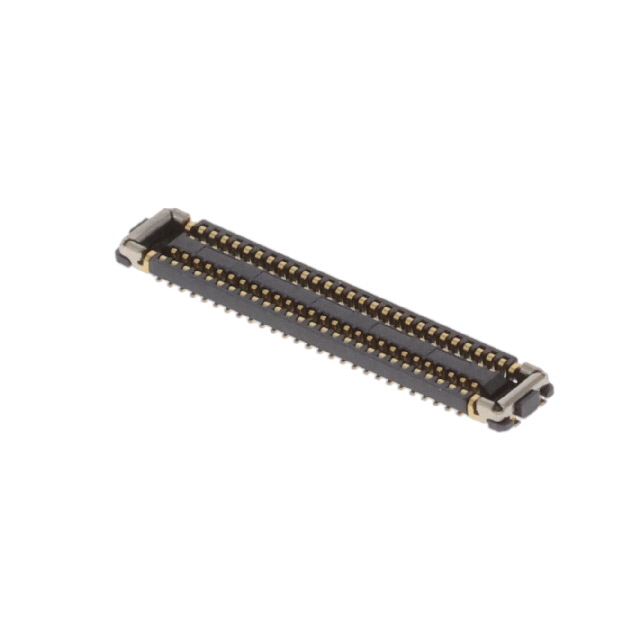

Molex 5052705412	Pick and Place Solder Retention	0.014 in	0.35 mm	Surface Mount	Gold	0.027 in	0.68 mm	0.8 mm	0.1 Ám	4 Áin	54	Receptacle Center Strip Contacts	2

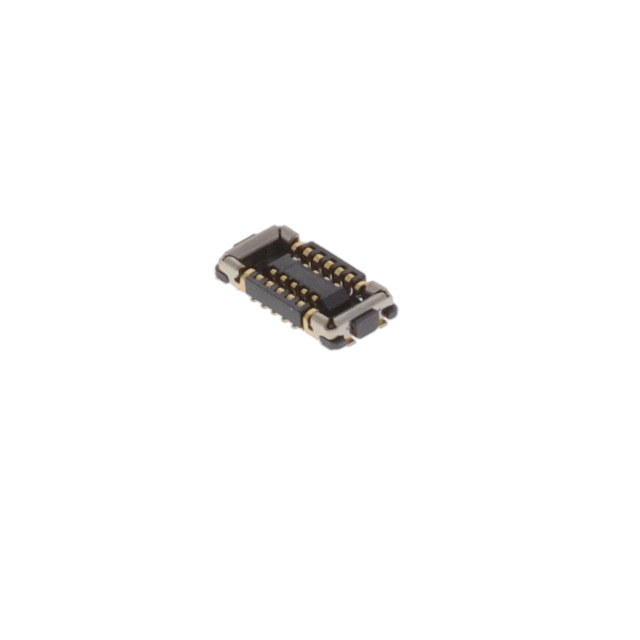

Molex 5052701012	Pick and Place Solder Retention	0.014 in	0.35 mm	Surface Mount	Gold	0.027 in	0.68 mm	0.8 mm	0.1 Ám	4 Áin	10	Receptacle Center Strip Contacts	2

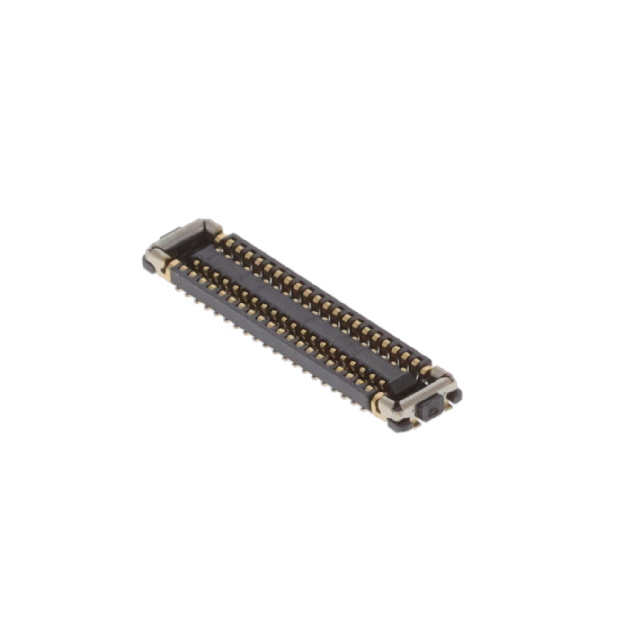

Molex 5052704012	Pick and Place Solder Retention	0.014 in	0.35 mm	Surface Mount	Gold	0.027 in	0.68 mm	0.8 mm	0.1 Ám	4 Áin	40	Receptacle Center Strip Contacts	2

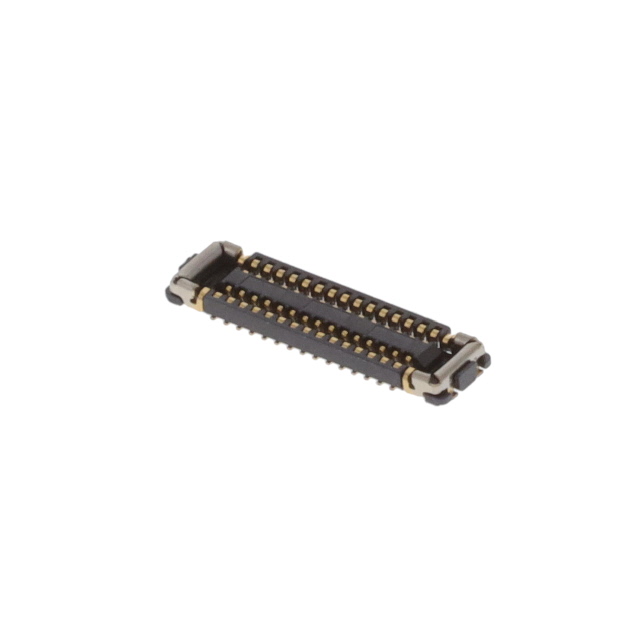

Molex 5052703012	Pick and Place Solder Retention	0.014 in	0.35 mm	Surface Mount	Gold	0.027 in	0.68 mm	0.8 mm	0.1 Ám	4 Áin	30	Receptacle Center Strip Contacts	2

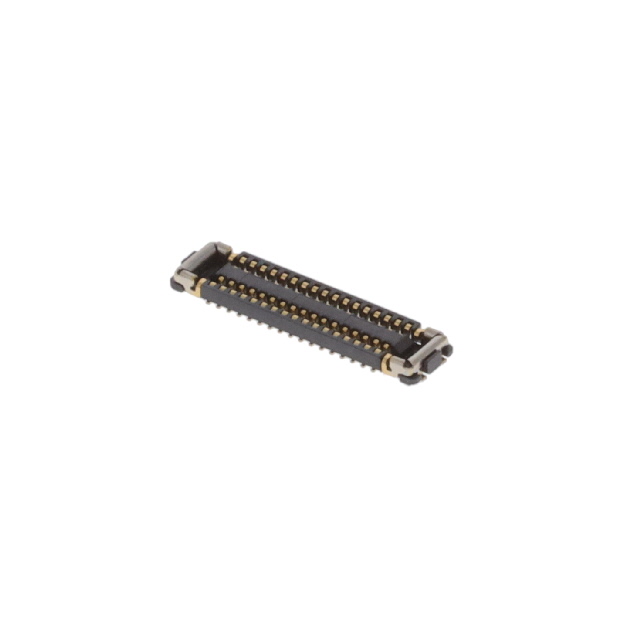

Molex 5052703412	Pick and Place Solder Retention	0.014 in	0.35 mm	Surface Mount	Gold	0.027 in	0.68 mm	0.8 mm	0.1 Ám	4 Áin		Receptacle Center Strip Contacts	2	34
Molex 5052700610	Solder Retention	0.014 in	0.35 mm	Surface Mount	Gold	0.027 in	0.68 mm	0.8 mm			6	Receptacle Center Strip Contacts	2
Molex 5052702012	Pick and Place Solder Retention	0.014 in	0.35 mm	Surface Mount	Gold	0.027 in	0.68 mm	0.8 mm	0.1 Ám	4 Áin	20	Receptacle Center Strip Contacts	2

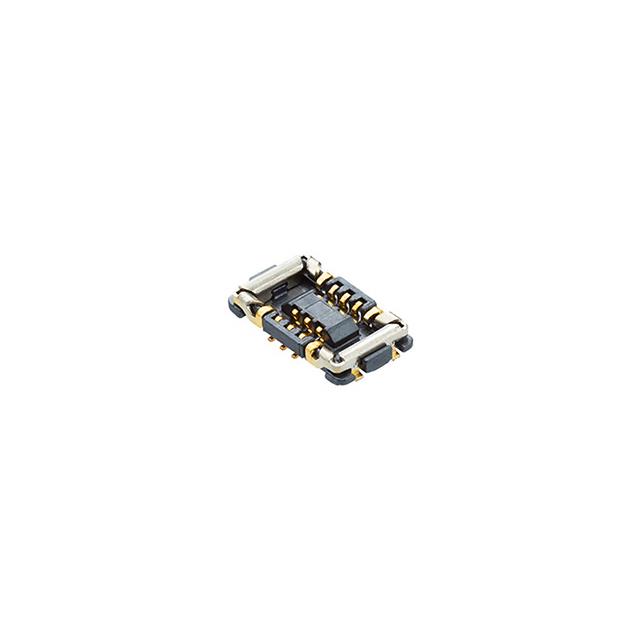

Molex 5052701612	Pick and Place Solder Retention	0.014 in	0.35 mm	Surface Mount	Gold	0.027 in	0.68 mm	0.8 mm	0.1 Ám	4 Áin	16	Receptacle Center Strip Contacts	2
