395-063 Series
Manufacturer: EDAC Inc.
Beta
⌘K
CONN EDGE SINGLE FML 63POS 0.100
| Part | Material - Insulation | Termination Rows | Contact Finish | Contact Type | Number of Positions | Card Type | Card Thickness [Max] | Card Thickness [Min] | Color | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | Flange Feature [diameter] | Flange Feature [diameter] | Number of Positions/Bay/Row | Pitch | Pitch | Contact Material | Contact Finish Thickness | Contact Finish Thickness | Gender | Number of Rows | Termination | Read Out | Flange Feature | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | Polyester Thermoplastic | 1 | Gold | Cantilever | 63 | Non Specified - Single Edge | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Black | Through Hole | -40 C | 105 ░C | 3.25 mm | 0.128 " | 63 | 0.1 " | 2.54 mm | Copper Alloy | 0.25 Ám | 10 Áin | Female | 1 | Solder | Single | ||
 EDAC Inc. | Polyester Thermoplastic | 1 | Gold | Cantilever | 63 | Non Specified - Single Edge | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Black | Through Hole | -40 C | 105 ░C | 63 | 0.1 " | 2.54 mm | Copper Alloy | 0.25 Ám | 10 Áin | Female | 1 | Solder | Single | 4-40 Threaded Insert Top Mount Opening | |||
 EDAC Inc. | Polyester Thermoplastic | 1 | Gold | Cantilever | 63 | Non Specified - Single Edge | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Black | Through Hole | -40 C | 105 ░C | 63 | 0.1 " | 2.54 mm | Copper Alloy | 0.25 Ám | 10 Áin | Female | 1 | Wire Wrap | Single | ||||
 EDAC Inc. | Polyester Thermoplastic | 1 | Gold | Cantilever | 63 | Non Specified - Single Edge | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Black | Through Hole | -40 C | 105 ░C | 63 | 0.1 " | 2.54 mm | Copper Alloy | 0.25 Ám | 10 Áin | Female | 1 | Solder | Single | M3 Threaded Insert Top Mount Opening | |||
 EDAC Inc. | Polyester Thermoplastic | 1 | Gold | Cantilever | 63 | Non Specified - Single Edge | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Black | Through Hole | -40 C | 105 ░C | 63 | 0.1 " | 2.54 mm | Copper Alloy | 0.25 Ám | 10 Áin | Female | 1 | Wire Wrap | Single | M3 Threaded Insert Top Mount Opening | |||
 EDAC Inc. | Polyester Thermoplastic | 1 | Gold | Cantilever | 63 | Non Specified - Single Edge | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Black | Right Angle Through Hole | -40 C | 105 ░C | 63 | 0.1 " | 2.54 mm | Copper Alloy | 0.25 Ám | 10 Áin | Female | 1 | Solder | Single | Flush Mount M3 Threaded Insert Top Opening | |||
 EDAC Inc. | Polyester Thermoplastic | 1 | Gold | Cantilever | 63 | Non Specified - Single Edge | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Black | Through Hole | -40 C | 105 ░C | 63 | 0.1 " | 2.54 mm | Copper Alloy | 0.25 Ám | 10 Áin | Female | 1 | Solder | Single | M3 Threaded Insert Top Mount Opening | |||
 EDAC Inc. | Polyester Thermoplastic | 1 | Gold | Cantilever | 63 | Non Specified - Single Edge | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Black | Through Hole | -40 C | 105 ░C | 3.96 mm | 0.156 " | 63 | 0.1 " | 2.54 mm | Copper Alloy | 0.25 Ám | 10 Áin | Female | 1 | Wire Wrap | Single | ||
 EDAC Inc. | Polyester Thermoplastic | 1 | Gold | Cantilever | 63 | Non Specified - Single Edge | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Black | Through Hole | -40 C | 105 ░C | 3.96 mm | 0.156 " | 63 | 0.1 " | 2.54 mm | Copper Alloy | 0.25 Ám | 10 Áin | Female | 1 | Solder | Single | ||

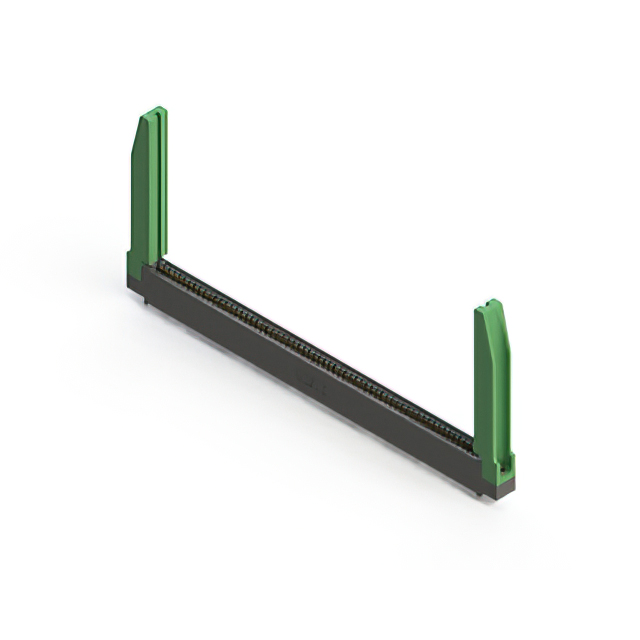

 EDAC Inc. | Polyester Thermoplastic | 1 | Gold | Cantilever | 63 | Non Specified - Single Edge | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Black | Through Hole | -40 C | 105 ░C | 63 | 0.1 " | 2.54 mm | Copper Alloy | 0.25 Ám | 10 Áin | Female | 1 | Wire Wrap | Single | 4-40 Threaded Insert Top Mount Opening | Card Guides |
