T 3428 Series

Catalog

CONN PLUG FMALE 6P SOLDER CUP

Part	Contact Finish - Mating	Features	Primary Material	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating	Current Rating (Amps)	Number of Positions	Shell Size - Insert	Connector Type	Shell Material	Orientation	Mounting Type	Ingress Protection	Fastening Type	Shielding	Insert Material	Material Flammability Rating	Contact Type	Contact Size	Type	Housing Color	Contact Shape	Note

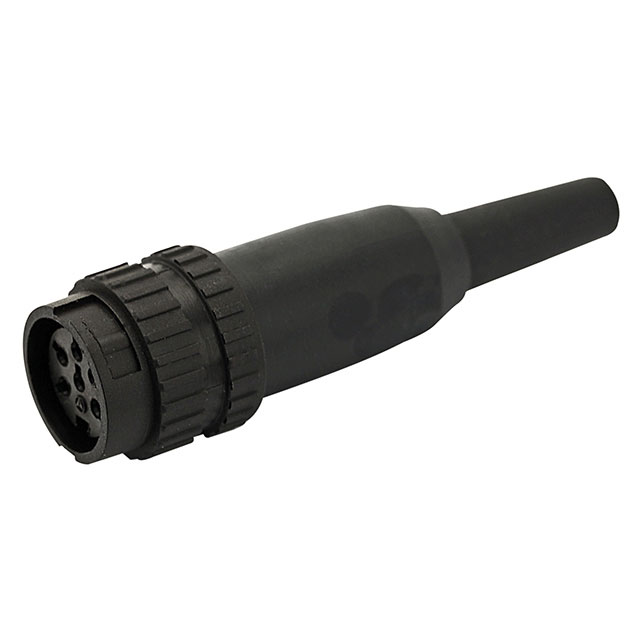

Amphenol Tuchel Industrial T 3428 991	Silver	Strain Relief	Plastic	-40 C	100 °C	250 V	7 A	6	M16-6	Plug Female Sockets	Plastic	Keyed	Free Hanging (In-Line)	IP40	Bayonet Lock

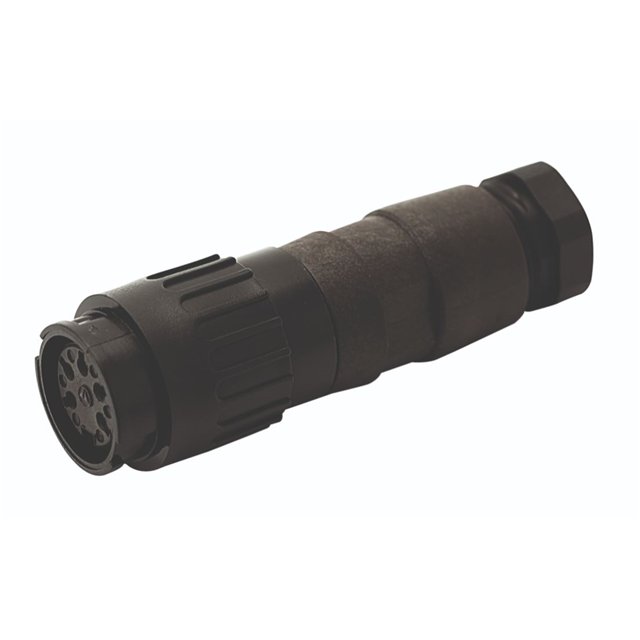

Amphenol Tuchel Industrial T 3428 502	Silver	Cable Clamp Strain Relief	Plastic	-40 C	100 °C	250 V	7 A	6	M16-6	Plug Female Sockets	Plastic	Keyed	Free Hanging (In-Line)	IP40	Bayonet Lock
Amphenol Tuchel Industrial T 3428 551		Cable Clamp Coupling Nut Strain Relief		-40 C	100 °C			6	M16-6	Plug Housing	Plastic	Keyed	Free Hanging (In-Line)	IP40	Bayonet Lock	Unshielded	Thermoplastic	UL94 V-0	Crimp	1.5 mm	For Female Sockets	Black	Circular	Contacts Not Included
Amphenol Tuchel Industrial T 3428 518	Gold	Strain Relief	Plastic	-40 C	100 °C	250 V	7 A	6	M16-6	Plug Female Sockets	Plastic	Keyed	Free Hanging (In-Line)	IP40	Bayonet Lock
Amphenol Tuchel Industrial T 3428 552		Backshell Cable Clamp Coupling Nut		-40 C	100 °C			6	M16-6	Plug Housing	Plastic	Keyed	Free Hanging (In-Line)	IP40	Bayonet Lock	Unshielded	Thermoplastic	UL94 V-0	Crimp	1.5 mm	For Female Sockets	Black	Circular	Contacts Not Included
