DG040 Series

Catalog

AC/DC CONVERTER 28V 40W

Part	Voltage - Isolation	Power (Watts)	Voltage - Output 1	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Operating Temperature [Max]	Operating Temperature [Min]	Type	Approval Agency	Efficiency	Features	Applications	Mounting Type	Number of Outputs	Voltage - Input [Max]	Voltage - Input [Min]	Current - Output 1
Tri-Mag, LLC DG040M-G	4000 V	40 W	28 V	0.91 "	76.2 mm	2 in	3 "	50.8 mm	23.1 mm	70 °C	-20 °C	Open Frame	CB CE	86 %	PFC Universal Input	Medical	Chassis Mount	1	264 VAC	90 VAC	1.42 A
Tri-Mag, LLC DG040M-14	4000 V	40 W	48 V	0.91 "	76.2 mm	2 in	3 "	50.8 mm	23.1 mm	70 °C	-20 °C	Open Frame	CB CE	86 %	PFC Universal Input	Medical	Chassis Mount	1	264 VAC	90 VAC	830 mA
Tri-Mag, LLC DG040M-8	4000 V	40 W	15 V	0.91 "	76.2 mm	2 in	3 "	50.8 mm	23.1 mm	70 °C	-20 °C	Open Frame	CB CE	86 %	PFC Universal Input	Medical	Chassis Mount	1	264 VAC	90 VAC	2.66 A
Tri-Mag, LLC DG040-8	4000 V	40 W	15 V	0.91 "	76.2 mm	2 in	3 "	50.8 mm	23.1 mm	70 °C	-20 °C	Open Frame	CB CE	86 %	PFC Universal Input	ITE (Commercial)	Chassis Mount	1	264 VAC	90 VAC	2.66 A

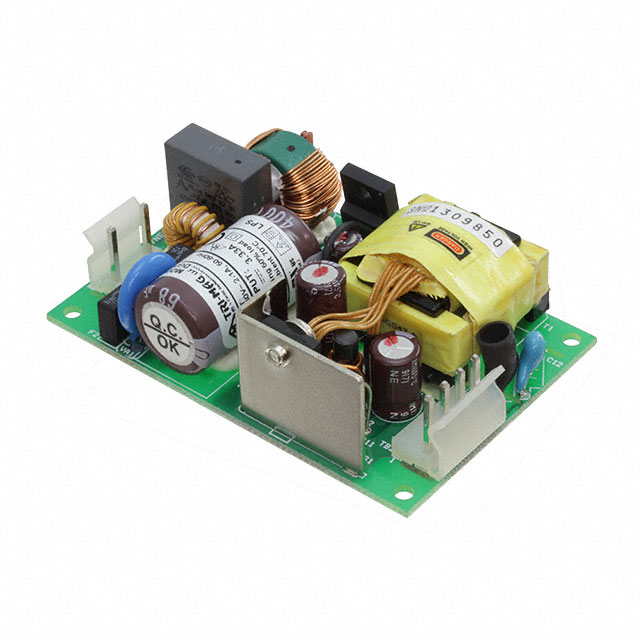

Tri-Mag, LLC DG040-7	4000 V	40 W	12 V	0.91 "	76.2 mm	2 in	3 "	50.8 mm	23.1 mm	70 °C	-20 °C	Open Frame	CB CE	86 %	PFC Universal Input	ITE (Commercial)	Chassis Mount	1	264 VAC	90 VAC	3.33 A
