796435 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

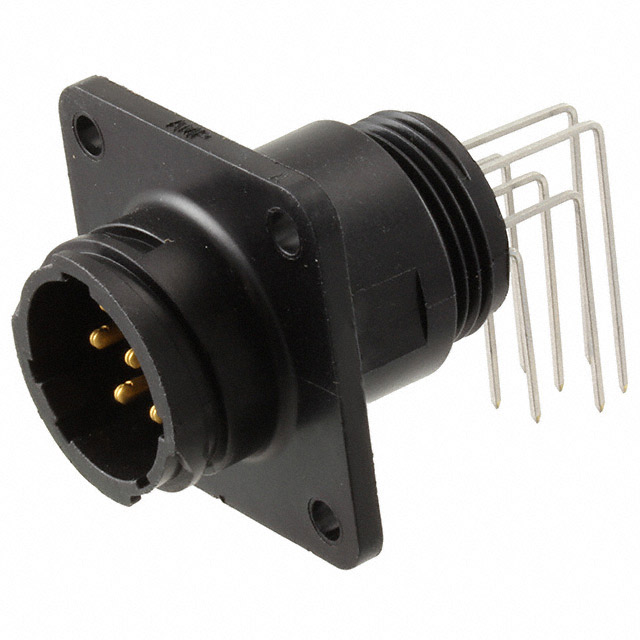

CONN RCPT MALE 7POS GOLD SOLDER
| Part | Contact Material | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Material Flammability Rating | Fastening Type | Mounting Feature | Number of Positions | Mounting Type | Primary Material | Operating Temperature [Min] | Operating Temperature [Max] | Orientation | Connector Type | Shell Size - Insert | Termination | Contact Finish - Mating | Voltage Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Brass | 0.76 Ám | 30 Áin | UL94 V-0 | Threaded | Flange | 7 | Panel Mount Right Angle Through Hole | Plastic | -55 C | 105 ░C | A | Receptacle Male Pins | 13-7 | Solder | Gold | 250 VAC |
TE Connectivity AMP Connectors | 0.076 µm | 3 µin | UL94 V-1 | Threaded | Flange | 7 | Panel Mount Right Angle Through Hole | Plastic | -55 C | 105 ░C | A | Receptacle Male Pins | 13-7 | Solder | Gold | 250 VAC |
